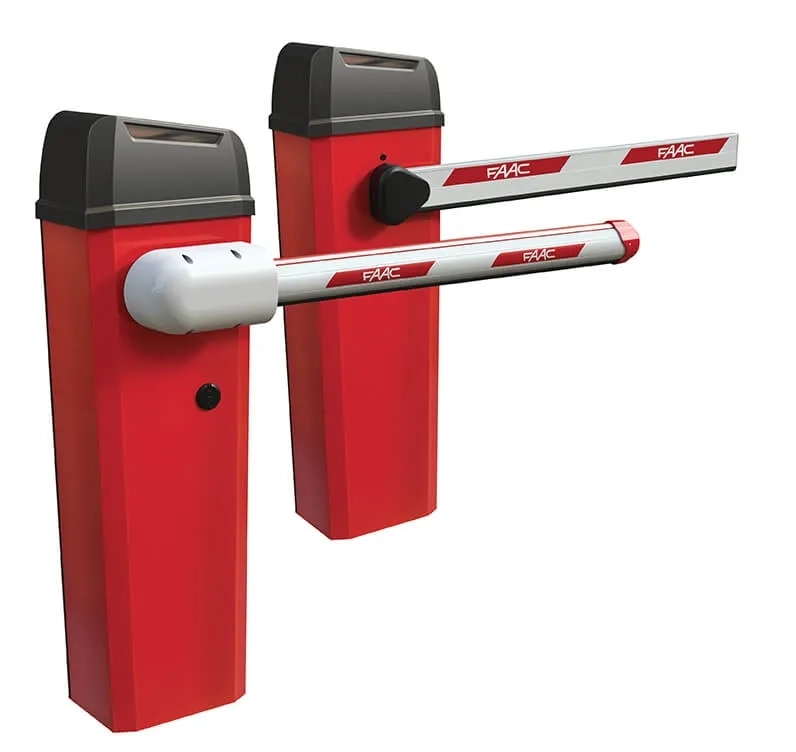

FAAC B614 - Automatic Barrier 24V

Max beam length: 5 m

Opening time: <2 s (80° with 3 m beam)

Use frequency: Continuous use

Features:

Maximum Anti-crushing safety and motor with integrated encoder

Speed adjustment and smooth operation.

Integrated control unit in the upper part of the beam body, i.e easy maintenace and intuitive programming

Dimensions and technical specifications:

Model: B614

Power Supply Voltage: 220-240V ~ 50/60 Hz

Electric Motor: With Brushes 24V

Max. Power: 165 W

Max. Torque: 300 Nm

Material Type: Steel

Type of Treatment: Pre-hot Dip Galvanized, 20μm Thick + Polyester Powder Coated

Encoder: Incremental Integrated in the Motor

Type of Deceleration: Electronic + Mechanic

Type of Beam: Rectangular and Round

Operating Ambient Temperature: -20°C ÷ +55°C

Protection Class: IP55 (Electronic Control Unit) – IP44

Weight: 40 Kg

Dimensions (LxDxH): 360 × 250 × 1163 mm (Installation Base 305 × 230 mm)

Beam Max Length: 5 m

Opening Time: < 2 s (80° - 3m)

Use Frequency: Continuous Use

Electronic Equipment: E614

Refre Catalogue for More Informations
