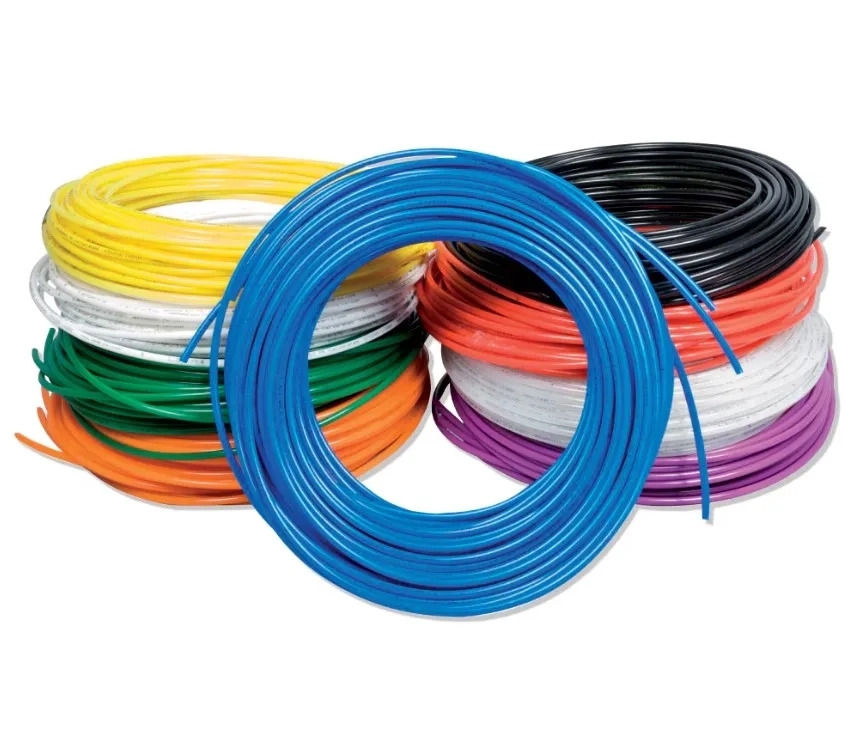

parker Polyethylene (PE) Tubing

Parker Legris offers two types of polyethylene tubing: "Advanced PE" 50% reticulated and Low Density PE.<br/>Our range of "Advanced PE" is designed for demanding environments, especially that of water treatment, without compromising operator safety.

Features/Benefits:

Advanced PE

50% reticulated material

Best balance between flexibility and pressure/temperature resistance

Resistant to a wide range of aggressive chemicals

Approved for contact with food and beverages

Silicone-free

Low Density PE

Excellent resistance to aggressive and corrosive agents

Good technical trade-off

Food-grade material

Silicone-free

Markets:

Food and Beverage

Industrial Chemical Processing

Oil and Gas

Water

Applications:

Aggressive Fluids Conveying

Applications Subjected to Intensive Cleaning

Thermal Management

Technologies:

PE Tubing

Polyethylene Tubing

Advanced PE

Industrial Tubing

Technical Characteristics:

Fluids:

Advanced PE: Water, beverages and other fluids

Low Density PE: Industrial fluids

Materials:

Advanced PE: High quality polyethylene: 50% reticulated PE, 50% low density PE (44 shore D)

Low Density PE: Low Density Polyethylene (44 shore D)

Pressure:

Advanced PE: Vacuum to 16 bar

Low Density PE: Vacuum to 20 bar

Temperature:

Advanced PE: -40°C to +95°C

Low Density PE: -40°C to +60°C

Regulations:

Advanced PE Tubing

FDA: 21 CFR 177.1520

RG: 1935/2004/EC

DI: 97/23/EC (PED)

DI: 2002/95/EC (RoHS), 2011/65/EC

NSF 51

RG: 1907/2006 (REACH)

Low Density PE Tubing

FDA: 21 CFR 177.1520

DI: 2002/95/EC (RoHS), 2011/65/EC

DI: 97/23/EC (PED)
