Compressor Type: Rotary
Compressor Warranty: 10 Years

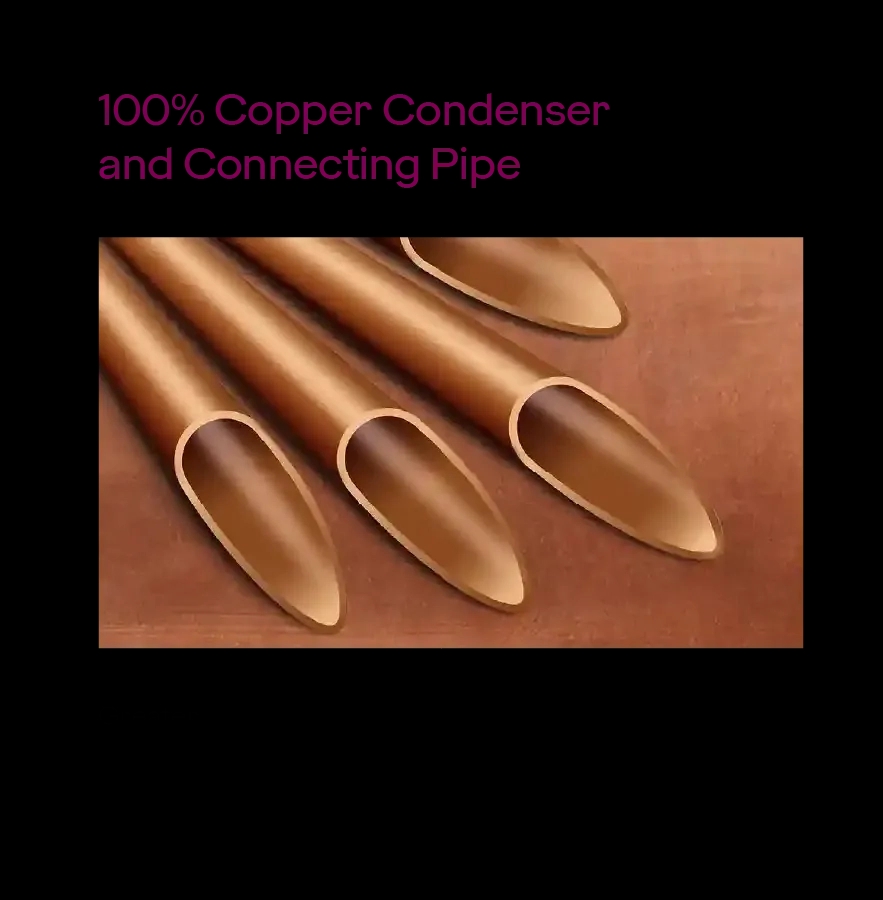

Condenser Fins: Copper Condenser With Anti-corrosive Blue Fins
Cooling Capacity In Watts / Nominal Capacity In Tr: 3450 W / 1 TR
Copper Pipe: 3 m
Display In IDU: Hidden Display
Electricity Consumption (1600 Hours): 524.03 Units Per Year
Evaporator Fins: Hydrophilic Blue Fins
Expansion Device In ODU: Capillary

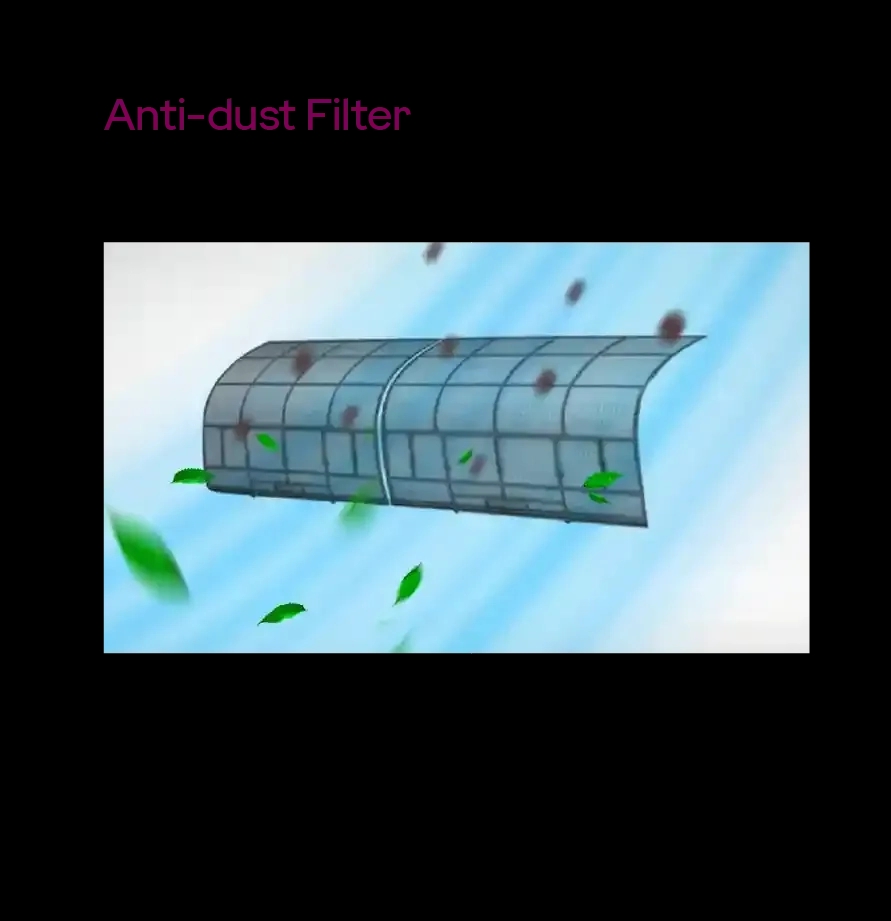

Filter Configuration: Anti-dust Filter + Active Carbon Filter + Nano Coated Antiviral Filter

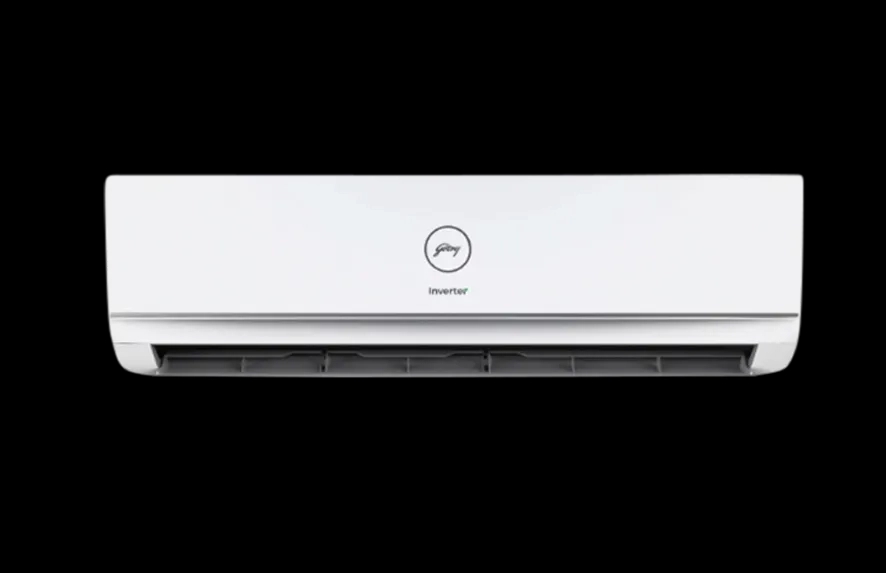

Front Panel Colour (Strip): White (Chrome)
Horizontal Louver: Auto
Hygiene+ / Blow (Self-clean): Yes
i-Sense: Yes
IDU Dimension (W x H x D): 85 cm x 28.9 cm x 21 cm
Input Power Supply: Indoor Unit
Interconnecting Cable: 3.5 m
ISEER (Star Rating): 5.1 (5 Star)
Liquid Tube Size Outer Diameter Inches (mm): 1/4" (6.35)
Lock: Yes
Max. Ambient Temp (Cooling): 52 °C
Max. Piping Capability Total: 20 m
Max. Piping Capability Vertical: 7 m
Model No.: AC 1T SIC 12TTC5-WWA
Modes: Cool/Dry/Fan/Sleep/Turbo
Net Weight IDU: 10 Kg
Net Weight ODU: 29 Kg
Noise Level Indoor (High/Medium/Low) In dB(A): 44/41/37
Noise Level Outdoor: 58 dB(A)
ODU Dimension (W x H x D): 85.8 cm x 59.2 cm x 31.2 cm
Power Input: 810 Watts
Rated Current: 3.7 Amp
Refrigerant: R32
Self-diagnosis (Error Codes): Yes
Refrigerant Additional Charge Beyond 4m (g/m): 15
Suction Tube Size Outer Diameter Inches (mm): 1/2" (12.7)
Timer On/Off: Yes
Vertical Louver: Manual
Refer Catalogue For More Information
