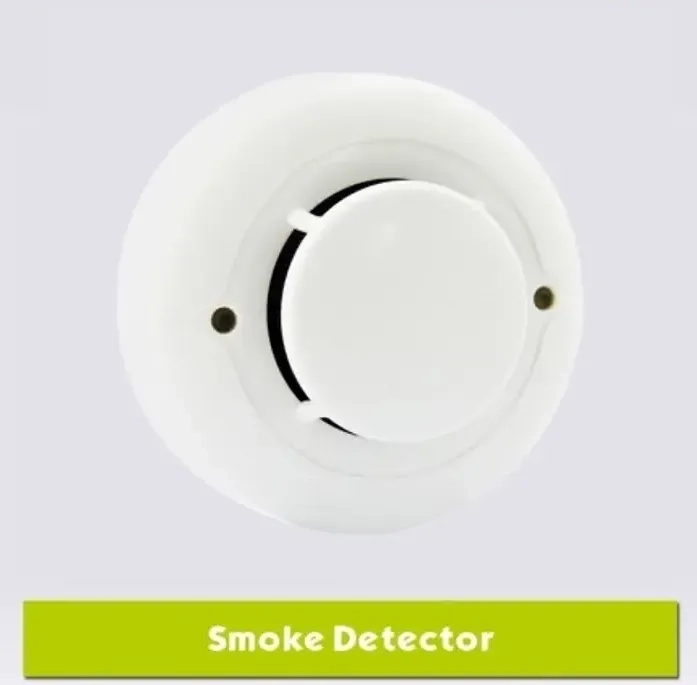

Pyrotech Smoke Detector

It is an intelligent smoke detector, which can be configured with an Addressable Fire Alarm Control Panel. Each point device can be given a specific ID, allowing the panel to monitor a specific detector location (point) continuously. It reduces the maintenance cost and makes it easier to maintain the system.

Features

Addressable-analog communication

Low standby current for continuous monitoring ( > 2.5mA)

Two-wire connection

Two LEDs (RED), blink in normal conditions and becomes stationary during the fire

Remote test from Panel

Technical Specifications

Product Details

Operating Voltage +12 V DC / +24 V DC /+48 V DC (Anyone)

Operating Current Static Current = 3 mA ; Alarm Current = 55 mA

Detecting Range 20 M2

Working Temprature -10°C ~ 60°C

Alarm Mode Network Alarm Signal

Output NC / NO (Optional), Buzzer (Optional), Pulse Output

Working Humidity (RH) 0

Mounting Details:

Mounting Ceiling Mounted

Technical Data:

Housing material Plastic

Physical Characterstics

Dimension (L x W x H) 99.80(D)X49(H)mm (With Base)
