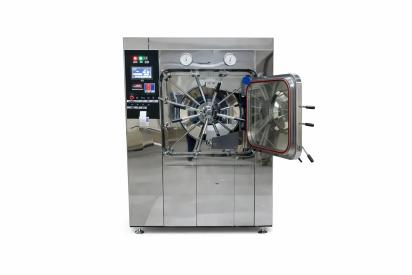

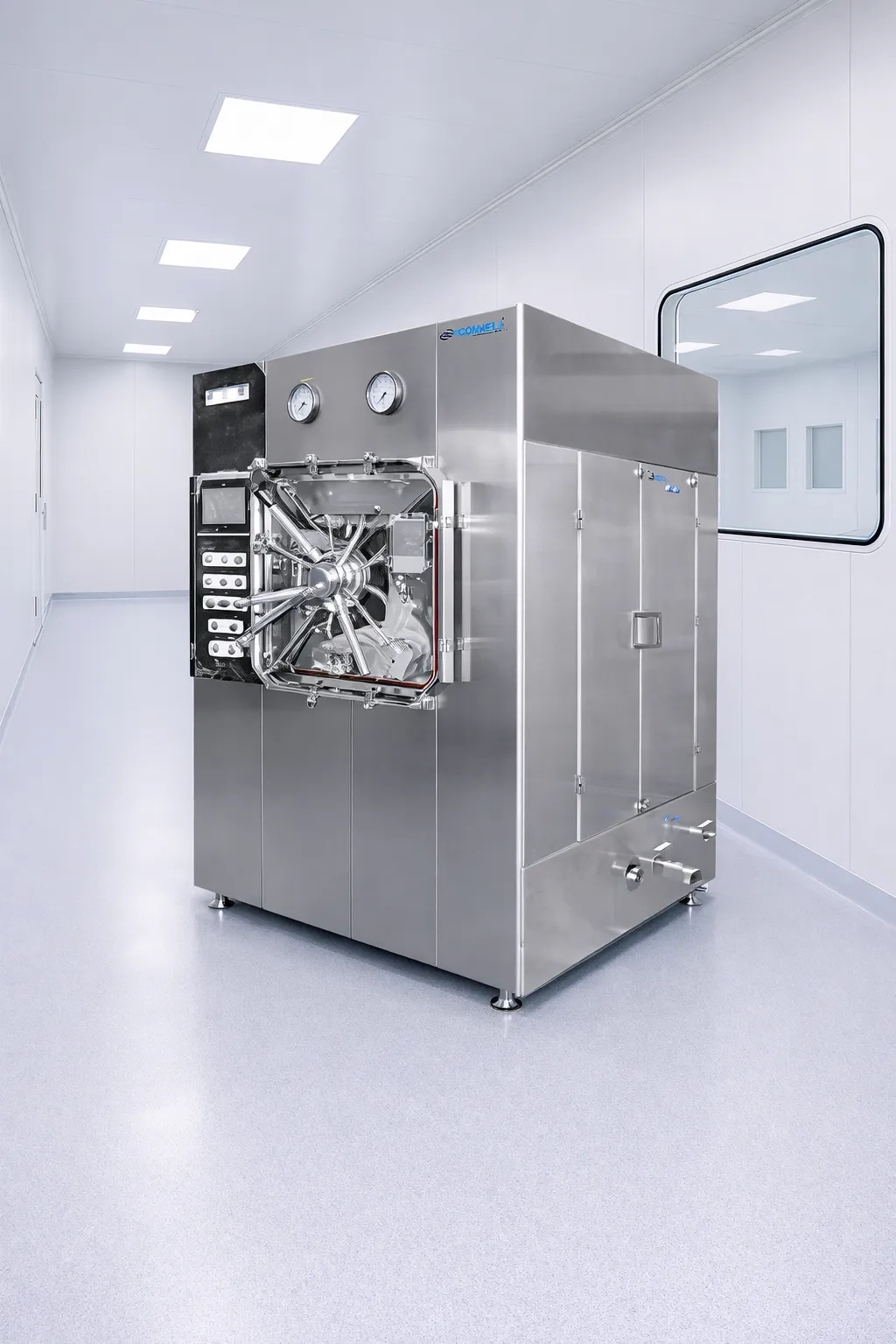

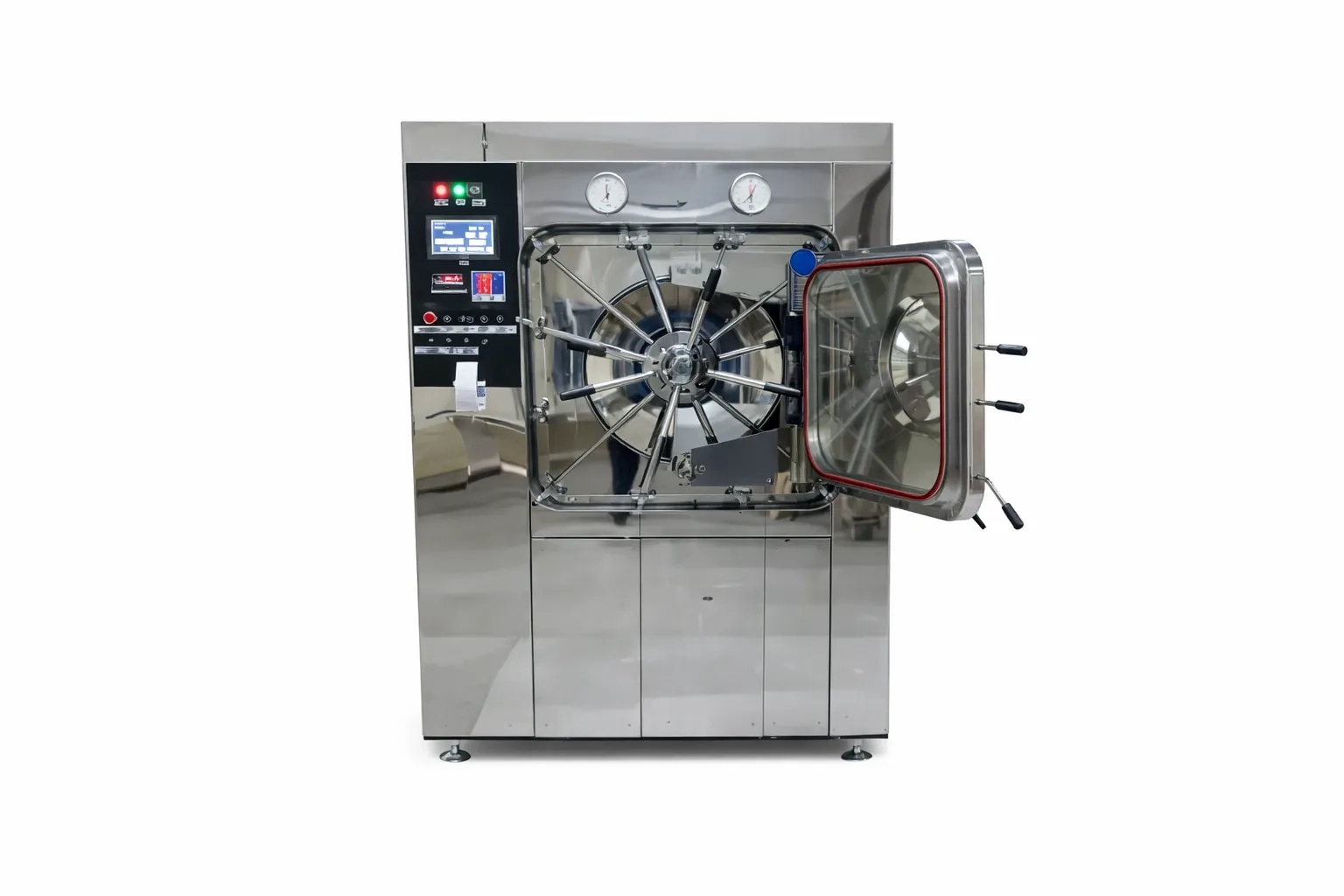

SI Surgical ETO Sterilizer - RAHPS - 850

Rectangular full automatic high pressure steam sterilizer

Technical Specifications:

The High-Pressure Vacuum Steam Sterilizer is used for sterilization of machine parts, change parts, fabric, tubing, bulk drugs, etc. in a pharmaceutical facility. The autoclave has been built in accordance to ASME guidelines and GMP norms.

Capacity / Size Chamber Size 1520mm (depth) x 610mm (width) x 910mm (height)

Size: 610mm W X 610mm H X 1520mm D

Capacity: 550 Litre

Chamber: Thickness – 6mm Ss 316l

Jacket: Thickness – 6mm Ss 304l

Doors: Thickness – 12mm Ss 316l Hinged Door

Door Gasket (Silicon Rubber): Make: Ami Polymer

Hydraulic Test Pressure: 4 Kg/Cm2

Steam Generator: Ss 304l

Float Switch: Ss 316l

Heater: Ss 316l

Vacuum Pump: Make: Kirloskar

Outer Insulation: Ss 304l (Thickness: 1.2mm)

Door Safety:

The Following Door Safety Features Are Provided For Maximum Operator Safety: -

Door Inter-Lock To Prevent Simultaneous Opening Of Both Doors.

Process-Lock To Prevent Opening Of The Door During The Process.

Process-Lock To Prevent The Opening Of The Non-Sterile Door After Successful Completion Of The Cycle.

Door Obstruction Safety.

Door Lock Cylinder Provides For Door Safety. (Make: Festo)

Limit Switch Also Provides For Door Protection.

Insulation:

The Sterilization Chamber Is Insulated With 100-Mm Thick Glass Wool, Which Is Held In Place By An Outer Cover Of Ss 304.

The Average Surface Temperature Of The Machine Will Not Be More Than 350c.

Vacuum: 3 Hp (Make: Kirloskar)

Piping Package: Ss 304

Steam Trap: Make: Forbes Marshall

Pressure Switch: Make: Dannfos

Pressure Transmitter: Make: Honeywell

Pressure Gauge: Make: Baumer

Compound Gauge: Make: Baumer

Temperature Drain Gauge: Make: Baumer

Y Type Pneumatic Valve / Solenoid Valve: Make: Mascon

Nrv (Non-Return Valve): Make: Aira

Chamber/Jacket Safety Valve: Make: Aira

Valve Bank: Make: Smc

Plc: Make: Honeywell

Hmi: Make: Fuji

Chamber Contact Part Pipeline: Ss 316l

Chamber Non-Contact Part Pipeline: Ss 304l

Rtd Sensor Make: Ikc

PU Pipe Make: SMC

PU Connector: Make: SMC

Cycle:

H.P.H.V. Cycle, 134°C Unwrapped, 121°C

Unwrapped, 121°C Wrapped (with drying), 134°C

Wrapped (with Drying), Bowie & Dick test program

0.2 Micro Air Filter: SS 304L
