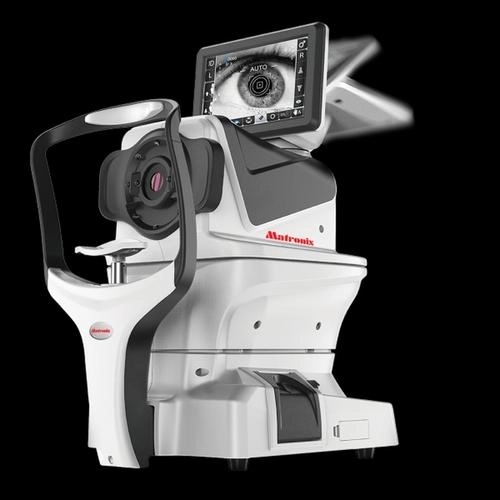

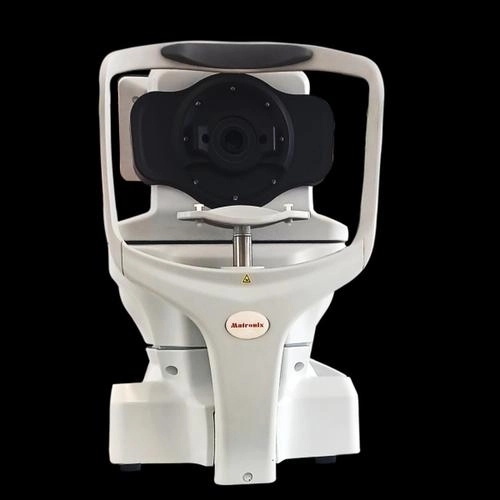

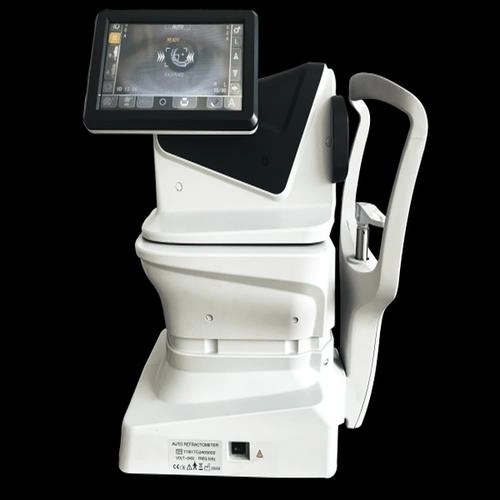

Matronix Auto Refractometer Ai 20

The Auto Refractometer AI 20 is intended for eye care professionals that are seeking quick, dependable refractive examinations in clinics and optical businesses. It carries out automated refraction assessments to quickly and easily assess refractive errors, facilitating accurate prescriptions and efficient patient flow. The AI 20's comprehensive AI-enhanced measurement technology, user-friendly interface, quick performance, and smooth integration into clinical workflows are what set it apart.

Refractive measurements are automatically detected, aligned, focused, and recorded by its fully automated operation, resulting in consistent, dependable findings with little operator effort and training time. While the integrated thermal printer and smooth data connectivity assist in automating documentation and optimize workflow, lowering paperwork and administrative stress for busy clinics, the large 9-inch high-resolution touchscreen and user-friendly interface make navigation simple.

Monitor Size : 9" Touch LCD Monitor

Printer Type : Import thermal printer

Screen Saver / Power Saving Mode : 1/5/10/20/40 min automatic screensaver

Weight : 20 kg

Sphere Measurement Range : −25.00D to +22.00D

Cylinder Range : −8D

Astigmatism Axis Range : 0–180°

Corneal Curvature Radius : 5–10 mm (0.01 mm)

Corneal Diopter Range : 33.00–67.00 D (0.12/0.25D)

Corneal Astigmatism : 0.00–15.00 D (0.12/0.25D)

Corneal Diameter : 2.0–12.0 mm

Vertical Distance (VD) : 0 mm, 12 mm, 13.75 mm, 15 mm

Dimension (W × D × H) : 300 × 450 × 500–530 mm

Unique Features : Larger 9-inch touchscreen and 180deg rotable display

Best Use For : Premium optical stores & high-footfall clinics; fast patient interaction and operator comfort

Power Supply : AC 110V-230V:60/50HZ 75VA

Dimension Weight : 300(W)*450(D)*50D-530(H)mm/20klkg

Vertical Distance (VD) : Omm.12.0mm-13.75mm.15.00mm

Cylindrical refractive Power : OD-8D

PD measurement : 45~85mm

Minimum Pupli Diameter : 2.0mm
