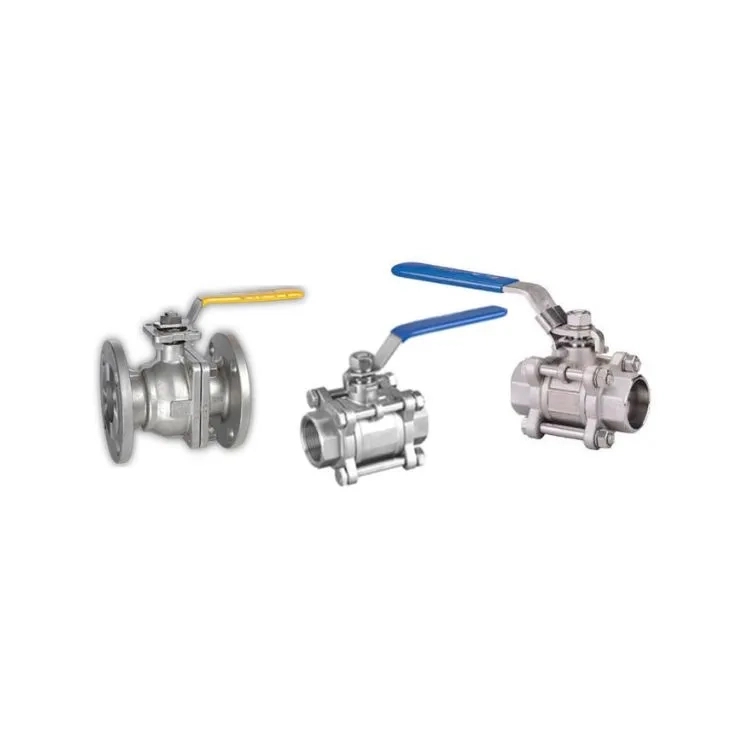

Global Flow Cast Ball Valve

Features: Low operating Torque

Blowout proof design & Antistatic Device

Design Std: BS EN 17292 / BS 5351/ Testing as per BS EN 12266 Part-1

Face to Face Dimensions as per ANSI B 16.10

Fire safe As per API 607/ BS 6755 Part II

Full/ Reduced Bore

Flange Drilling as per ANSI B 16.5, RF Serrated

Extended Spindle for cryogenic services

Locking arrangement

Gear/Pneumatic/Electric Actuator

NACE as per MR-01-75

Emergency sealant injection

Metal Seated Valve.

Material of Construction: Body : WCB/A 105/CF8/CF8M /Monel /Duplex /Alloy 20/LF2

End Piece: WCB/A 105/CF8/CF8M /Monel /Duplex /Alloy 20/LF2

Body Seat: PTFE / CFT/GFT/ PEEK/ Graphite/Metal Seated

Ball: CF8/CF8M/ Duplex/Alloy 20/Monel

Stem: SS 410/ SS 304/ SS316/ Alloy 20/ Monel

Stem Seal: Graphoil/PTFE/ Viton

Gland: A 105/ CF8/ CF8M
