Color
Red
₹74,547
l Conformity to IS 16018:2012
l BIS Approved and ISI marked
l Hydraulically tested as per standard and passed through anti-corrosive treatment
l High quality Pure Polyester (PP) powder coating (UV Resistant)
l Brass caps, drain plugs, ball valve conforms to IS:319
l Aluminum alloy nozzle conforms to IS:617
l Controllable discharge
l Easy to maintain, recharge & service
l PVC braided discharge hose
l MAP Mono Ammonium Phosphate 90% dry chemical powder confronts to IS 14609 capable of fighting against class A, B, C & Electrically started fires.

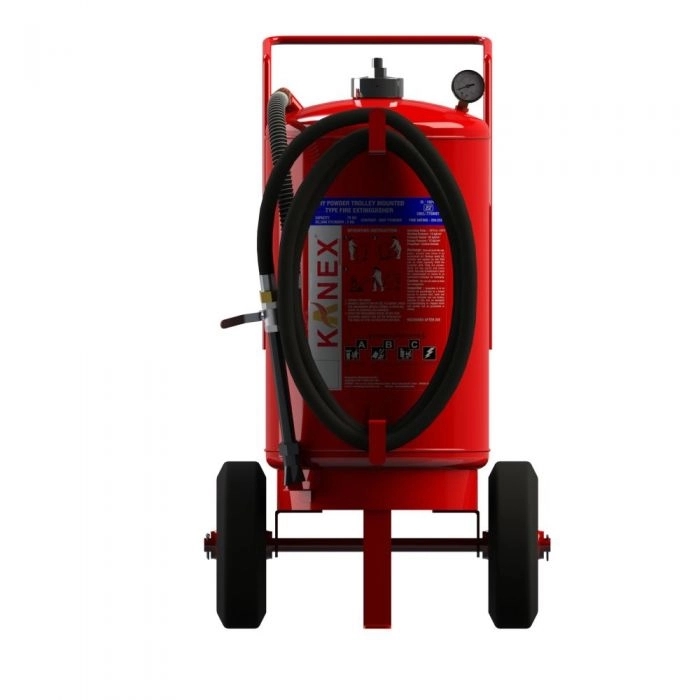

MODEL: KFDRQ-75-90%
Capacity: 75 kg
Design: Hose & Nozzle
Fire Rating: 20A:233B
Height (Approx.): 1030 mm
Diameter (Approx.): 400 ±10 mm
Average Discharge Time: 51 Sec
Average Range of throw: 8 m
Average Discharge: 93.5%
Operating Temperature: -30 °C to +55 °C
Service/Max. service/Test Pressure: 15 / 18 / 35 bar
Expelling Agent: Co2
Full Weight (Approx.): 150 kg
Empty Weight (Approx.): 75 kg
Shipping Weight (Approx.): 152.5 kg
Approvals: BIS
Warranty: 5 Years Warranty
Refer Catalogue For More Information
