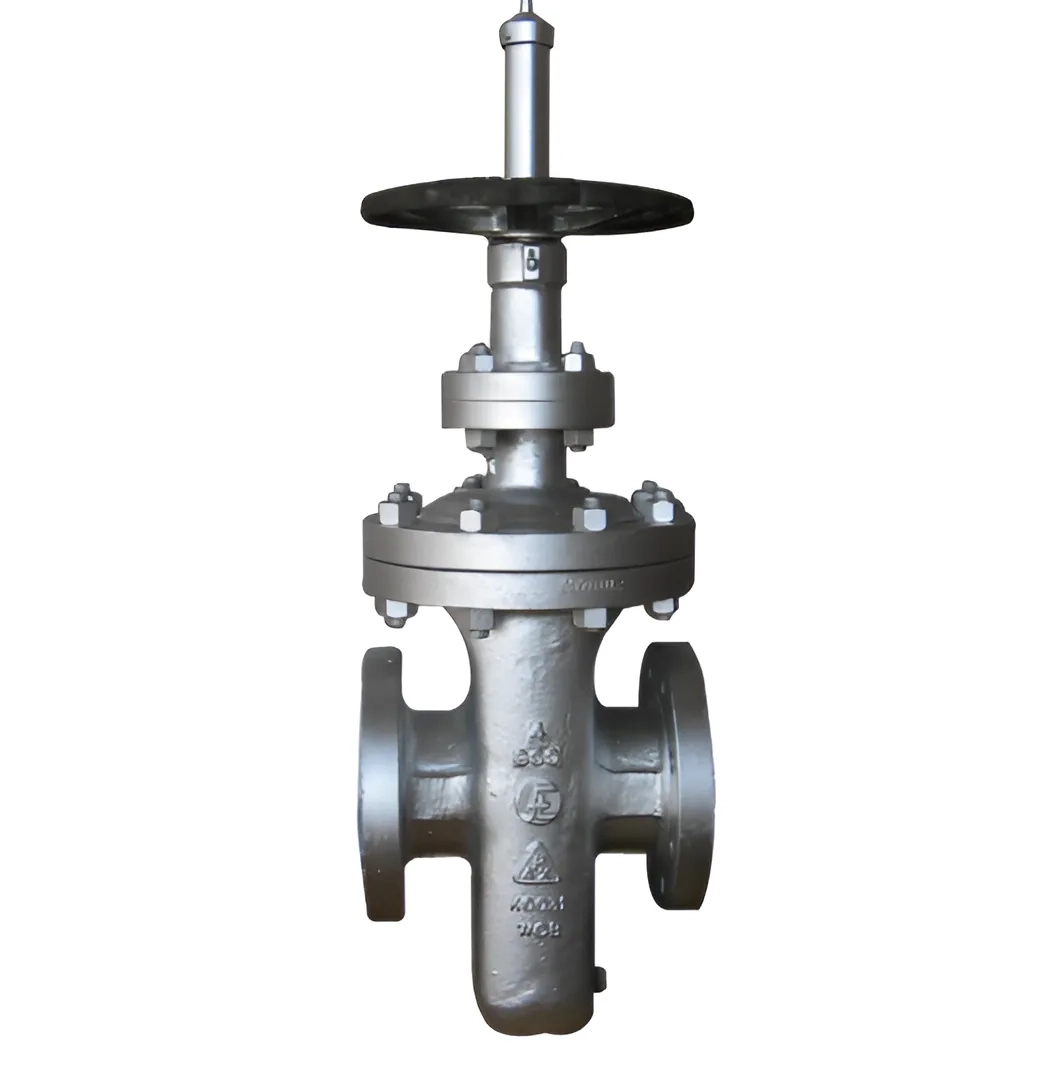

Flowchem Industries Cast Steel API 6D Gate Valve

Our valves are designed for ease of maintenance and maximum reliability regardless

Size Range : Nps 2"-24" (Dn 50Mm-600Mm)

Pressure Class : Asme 150-2500

End Connection : Flanged, Weld

Moc : Carbon Steel, Stainless Steel, Alloy Steel, Nickel Alloy Steel

Operator : Hand Wheel, Gear, Actuator

Design : Api 6D

Testing : Api 6D

Features:

Gate Valves are primarily used to permit or prevent the flow of liquids, but typical gate valves shouldn't be used for regulating flow, unless they are specifically designed for that purpose. Because of their ability to cut through liquids, gate valves are often used in the petroleum industry. The gate faces can be parallel, but are most commonly wedge-shaped. Typical gate valves are designed to be fully opened or closed. When fully open, the typical gate valve has no obstruction in the flow path, resulting in very low friction loss
