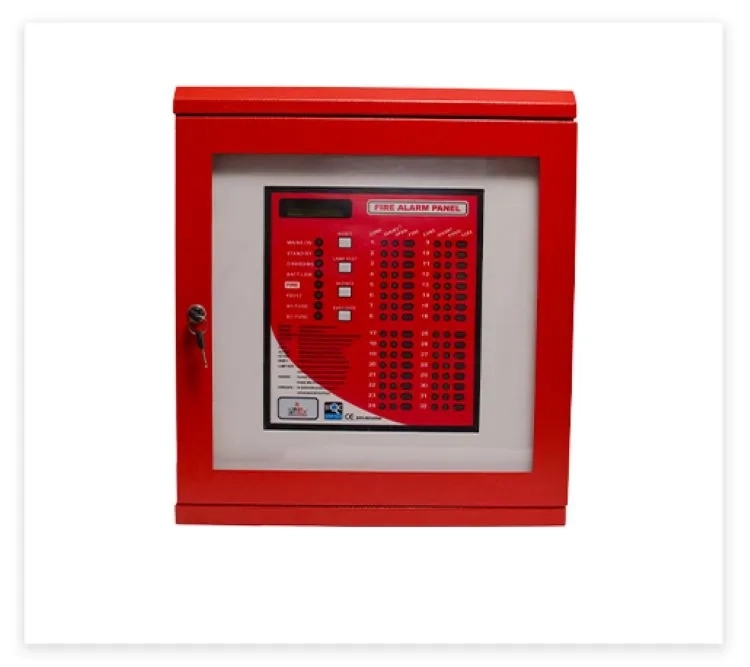

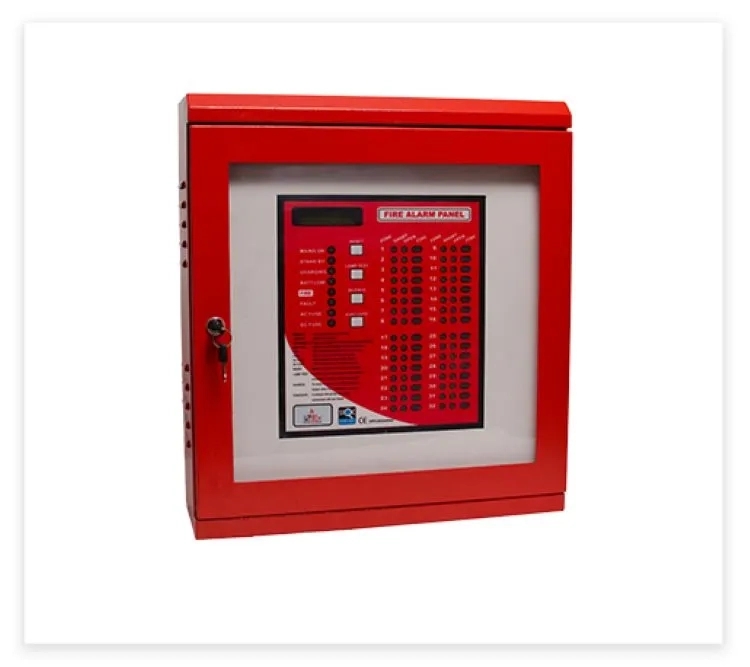

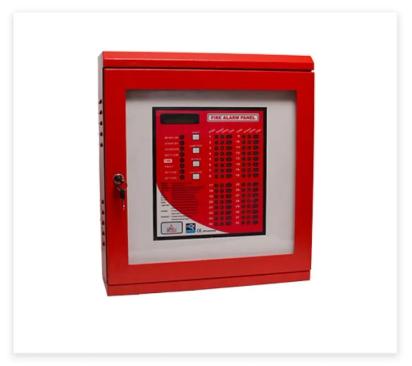

Palladium (32 ZONE) - Control Panel

The PSS-32Z is an32-Zone control panel. It is indicating equipment forms the central part of a fire detection and alarm system. The 2-wire is compatible with PSS-32Z devices. And it is the central part of conventional fire alarm system, designed for applications requiring gas leak detector, bell, manual pull stations, and sprinkler supervision. Each zone can be disabled by a button.

Advance Micro Controller based Fire Alarm Panel.

16x2 Character LCD Display.

Mains, A. C. Fail, fuse, Charging, Rev, Batt. Indication.

Zone wise fire, open, short testing facility.

Zone Wise Hooter option along with common hooter.

Model No.: PSS – 32Z

Operating voltage Range: AC 220v 50Hz # 10%, DC 24V/ 5Amp

Operating Temperature: -0º C to 50º (176) C

Operating Humidity: 95% (non-condensing)

Hooter Output: 4 A (24v DC)

EOL: 4k7 ohm, 1 per zone

Weight: 11 kg

Construction: 1.8 mm CRCA sheet duly power coated

Dimension: H 345mm * W 420mm * D 122mm

Color: Red
