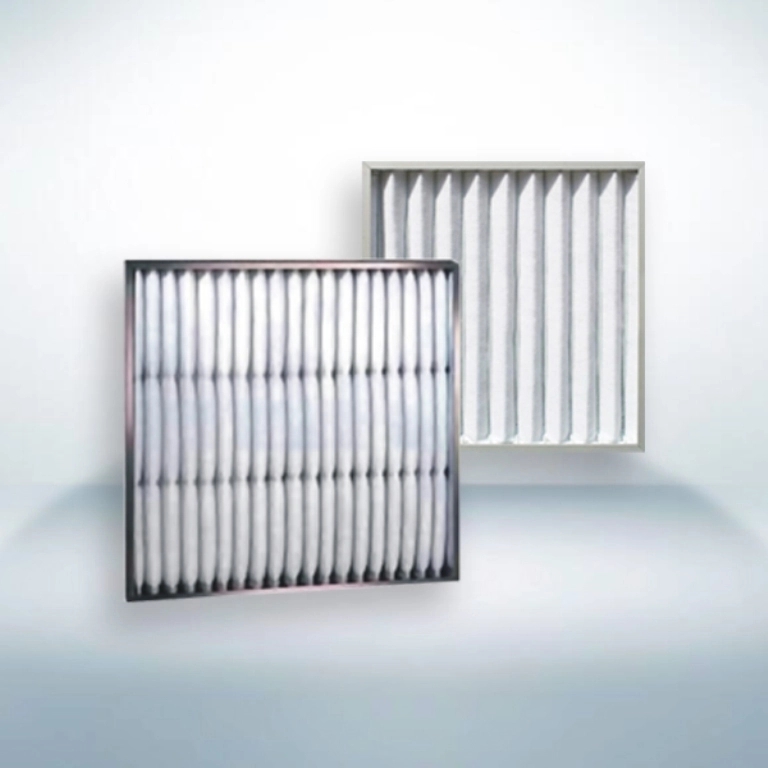

Sunfil Pre Filter

Pre or Coarse filters, also known as rough filters, are available from EU-1 to EU-4 per European Standards. They filter particles down to 10 microns with an efficiency of 85% to 95%. These filters can be installed directly in AHUs or mounted in banks. They use superior quality non-woven synthetic filter media, sandwiched between two HDPE mesh layers, which act as retainers to screen out large particles and prevent them from embedding in the media.

Filter Grade : Coarse Filter 90% Efficiency@ 10 Microns

Filter Size in mm : 595 x 595 x 45, 625 x 500 x 45, 625 x 400 x 45, 500 x 500 x 45, 500 x 400 x 45, 610 x 610 x 45

Casing Type : Box

Air Flow Capacity in CFM : 1350, 1200, 950, 750, 1400

Initial Pressure Drop in mm WC : 4

Number of Pleats : 12, 13, 11

Construction & Supports :

Pleating enhances filtration area for better efficiency

Secure bonding of media pack eliminates dirty air bypass

PU hardener is used for secure bonding to the enclosure frame
