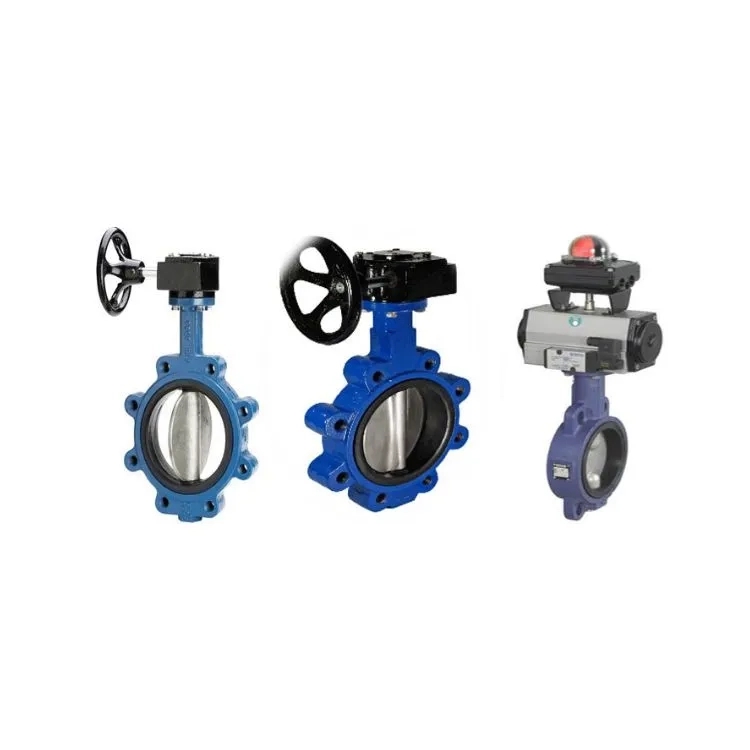

Global Flow Butterfly Valve

Butterfly Valve are rotary motion valve that is used to stop , regulate , and start fluid flow

Features: Design Std.: BS EN 593/API 609/AWWA /BS 5155, As per Testing Std.: BS EN 12266 Part

Suitable to mount between ANSI/BS/DIN flanges

Integrally Molded Liner/ Replaceable Liner

Positively Locked Shafts

Lever with Plate for different positions

Pressure Rating-PN-10/PN-16 /PN 25 / 150#

Temp. Range: -20 to +120 Degree Centigrade

Material of Construction : BODY: CI/Ductile Iron/WCB/CF8/CF8M/ Al. Bronze/Duplex

DISC: Ductile Iron/ CA15/ CF8/CF8M/AL. Bronze/Duplex

SHAFT:SGI/SS410/SS 304/SS 316/ Other higher alloys

SEAT: EPDM/Viton/Silicon Rubber/PTFE/ Natural Rubber

O RING: EPDM/ Viton/ Silicon Rubber/ Natural Rubber/PTFE

AVAILABLE SIZE: 40 MM TO 1500 MM
