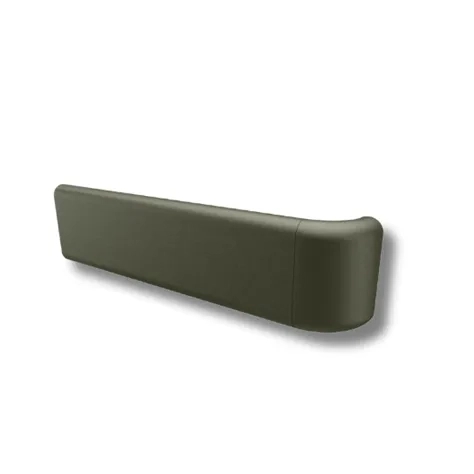

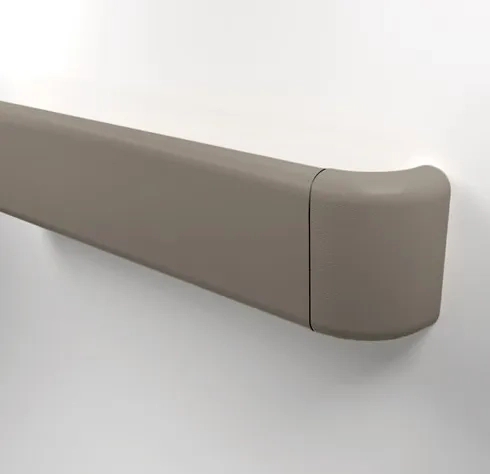

800 series Handrail (MAKE IN INDIA) having rigid vinyl snap-on cover(lead free) of 080"" (2mm) thick, Surface shall have a pebblette texture for scratch and stain resistant rigid vinyl cover mounted on a sturdy continous aluminium retainer of .080"" (2mm) thickness that shall be fabricated from 6063-T5 aluminium with a mill finsh. 5-1/2"" (140mm) height x 1-1/2"" (38mm) gripping diameter, extends 3"" (76mm) from the wall. The system shall resist an impact of 45.5 ft-lbs/inch while producing no visual blemishes upon the vinyl cover surface and no deformations in the aluminum retainers, as tested
in accordance with applicable provisions of ASTM F 476-84, paragraph 18, Impact Test. The rigid vinyl shall not support fungal or bacterial growth inaccordance with ASTM G-21 and G-22. The system shall also conform to class A fire rating and ASTM D-543 for chemical and stain resistance. It includes Molded end returns with black reveals and mounting brackets. All as specified by INPRO.
