₹280Per PieceOnwards

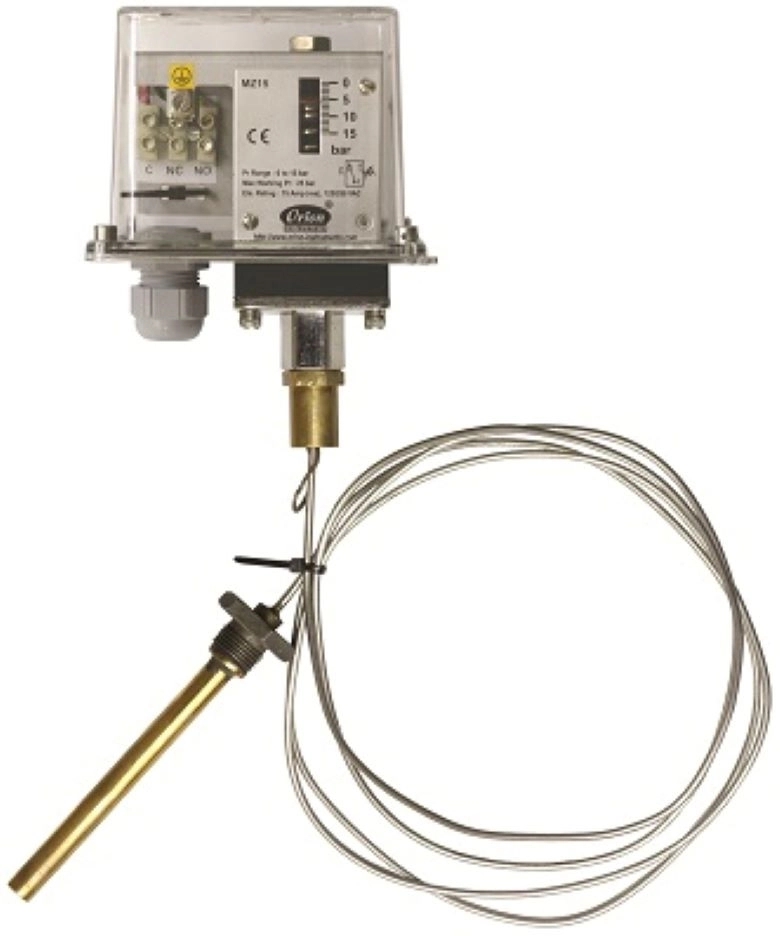

MZ Series pressure switches have been designed for applications that require cost effective outdoor mounting in aggressive environments. The tough polycarbonate cover,fitted on a stainless steel base, retained by SS screws offers excellent resistance to corrosion, and also allows a view of the internal scale and working of the pressure switch. The reliable microswitch offers narrow deadband, switching values,which have excellent repeatabilty.

Product Specifications: Storage temperature : Atmospheric temperature

Operating ambient temperature : - 20 o C to + 60 o C

Media temperature : for rubber diaphragms 80 o C max

Can be offered for higher temperatures with other capsule

combinations

Setpoint repeatability : ± 1 % of FSR

Enclosure : Tough Polycarbonate and SS to IP 66

Switch output : SPDT / 2SPDT

Process connection : 1⁄4 “BSP standard

Approximate weight : 1 kg

Application: Power Generation

Burners and Furnaces

Glass and Metal Industries

Chemical Industries

Steel Industry

Hydraulic, Steam and GasTurbines

Boilers & Compressors

Machine tools

Water treatment

Sugar and Paper Mills

Fire protection

Surgical gas, Breweries, Milk industries

Tyre Industry

Product Features:Enclosure Protection: IP66 standard

Robust

Reliable accurate microswitches for long life switching

Easy safe wiring options

Locking & sealing arrangements to avoid tampering of setpoints on field

Accuracy: +/-1% FSR

Warranty: 2 Years
