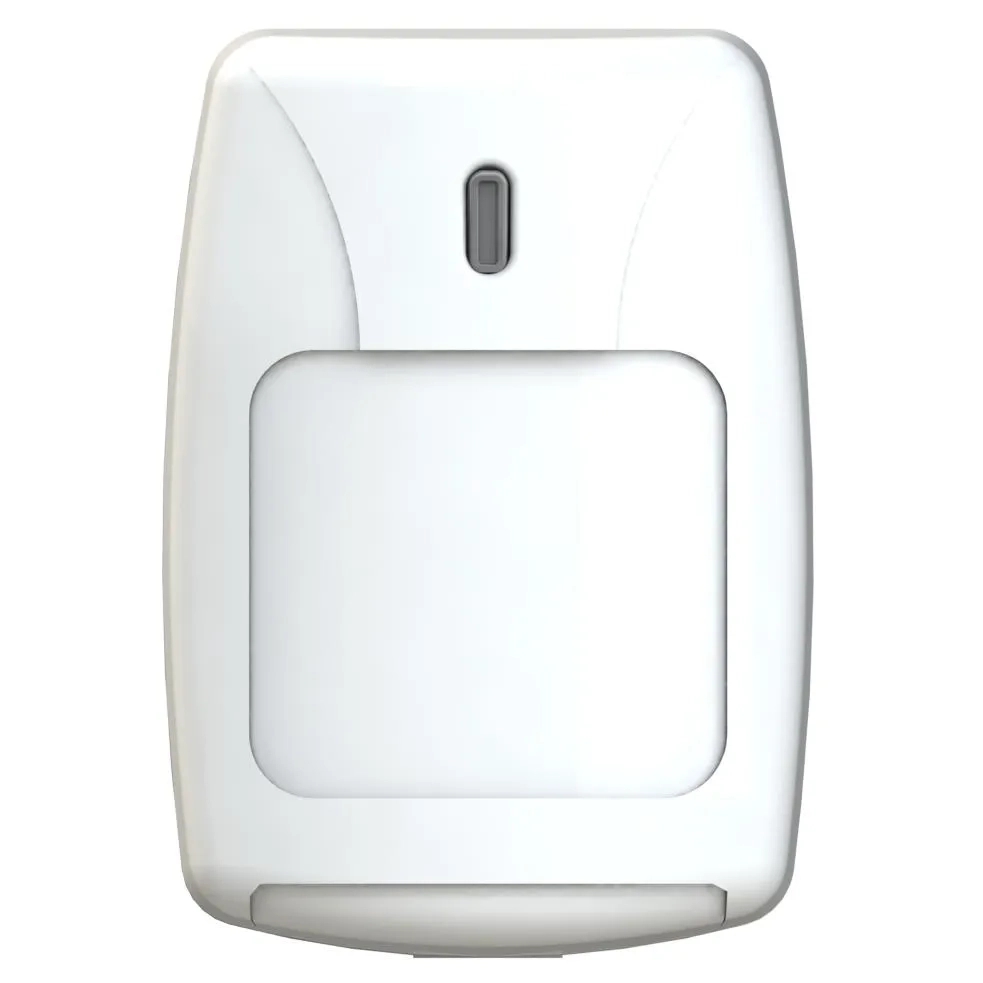

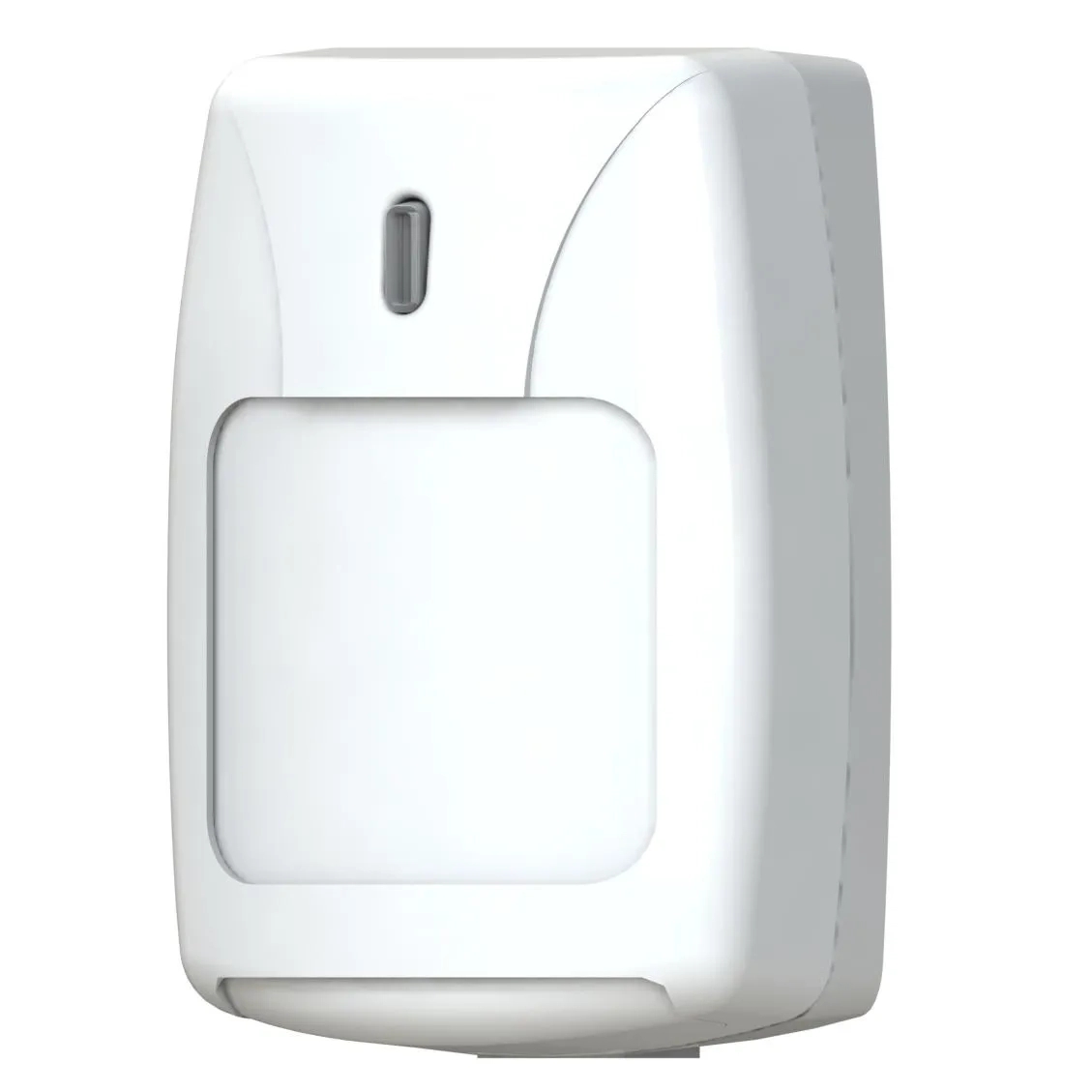

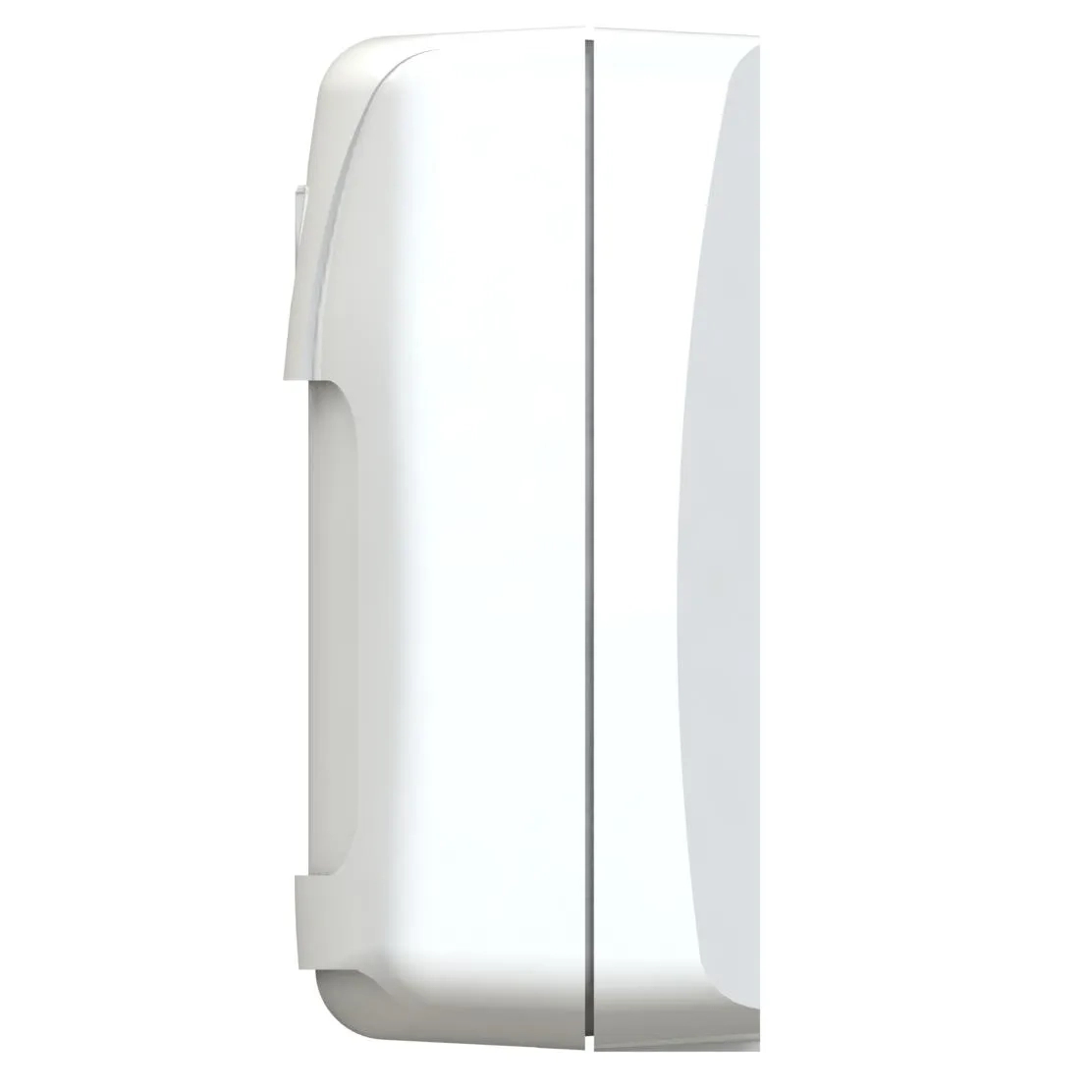

Rielta Foton-9M - Passive Infrared Sensor

Passive infrared detector Foton-9M.

Features:

Wide detection angle

Sabotage protection

Digital temperature compensation

Selectable sensitivity

Tamper output

Swivel bracket included (Foton-9M)

Alarm output: energized Form A (NC) relay

Contents of the kit:

Passive infrared detector Foton-9M - 1 pc.

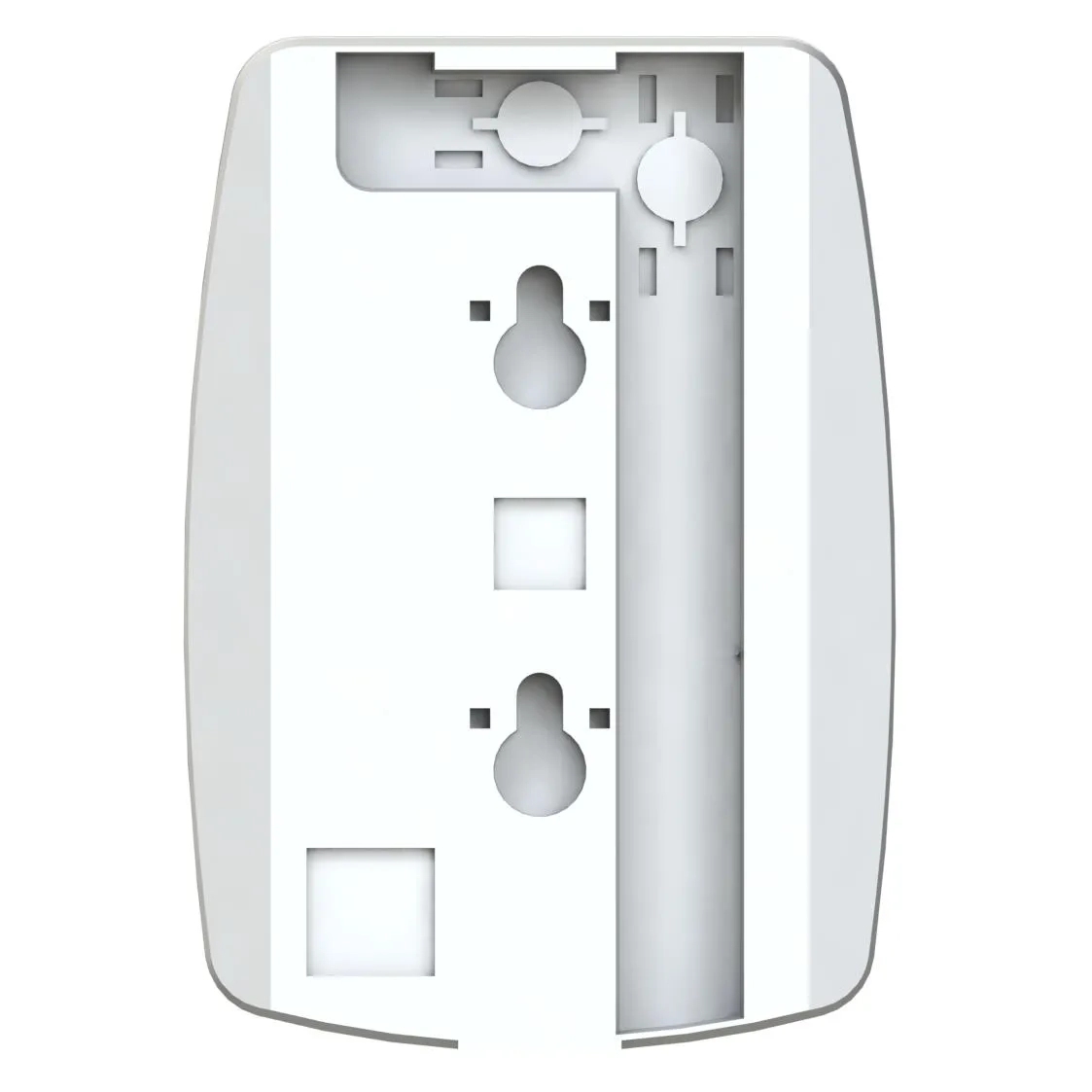

Bracket.

Operational documentation

Code: MAN00002808M

Pet immunity: No

Voltage: from 9 to 15 V

Current consumption: 15 mА

Temperature range: from -30 °C to +55 °C

Protection class: IP41

Dimensions: 88х61х41 mm

Installation height: 2,3 meters

Maximum detection distance: 10 meters

Case opening control: Yes

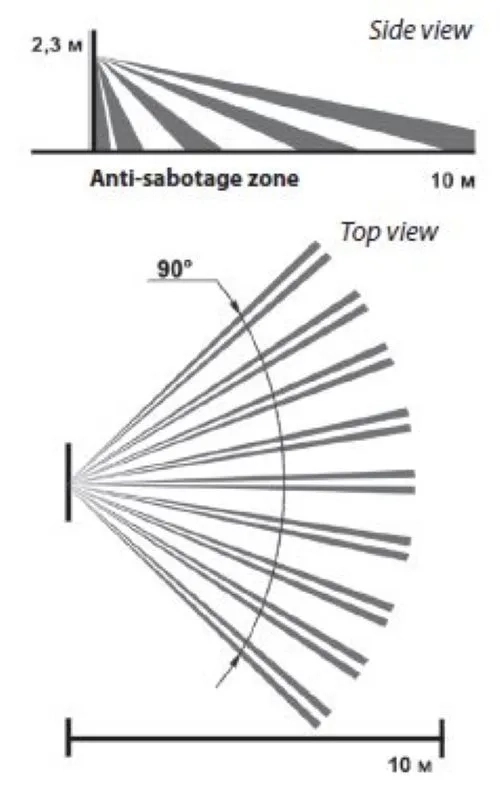

Detection zone: Volumetric

Refer Catalogue For More Information
