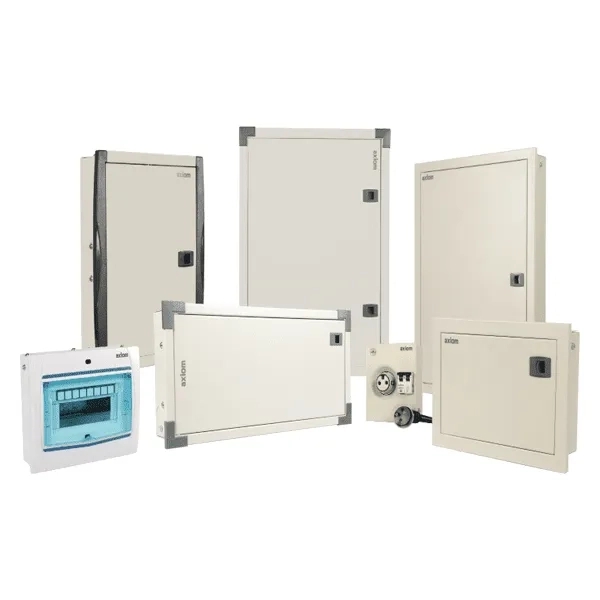

Axiom Distribution Boards (DB)s

Axiom Distribution Boards are designed with a universal mounting type, providing the flexibility of flush or wall mounting options to suit any installation need. These DB boxes undergo a rigorous 8-tank phosphate process, ensuring exceptional anti-rust conditioning, a superior finish, and long-lasting strength for reliable performance. Whether you’re looking for a Vertical Distribution Board, Phase Selector DB, or Per phase Isolation DB, Axiom’s premium-quality distribution boards are a top choice for your electrical needs.

The Distribution Board (an Electrical Distribution Board, Distribution Panel Board, or DB Box) is an essential component in an electrical system that controls and distributes power to various circuits throughout a building or facility.

Range : SPN, TPN, Vertical, Phase Selector, TV/Tel, Cross, Plug-n-Socket

No. of Ways : 4, 6, 8, 12, 16 ways

Type of Installation : Surface and Flush mounting

Colour / Finish : RAL 7035 Grey (Semi Glossy)

Door Options : Reversible

Door Locking Options : Sliding Lock

Removable Gland Plates : Top & Bottom

Protection Level of Distribution Board : Advanced

Distribution Technique : Insulated Busbar

Bus Bar Rating : 100A/200A

Incoming : Max.63A

Outgoing : Max. Individual 63A

Provision for Incomer slots : 8 Slots

Voltage Rating : 240/415V~ AC, 3 Phase/4 Wire

Main Incoming Options : Single Phase/Three Phase – MCB or RCCB or ISOLATOR

Sub Incoming Options : DP MCB / RCCB

Neutral Bar Terminal Capacity : 25mm2

Earthing Bar Terminal Capacity : 25mm2

Ingress Protection (IP) : IP 30 for Single Door DB, IP 43 for Double Door DB

Rated Insulated Voltage (Ui) : 690V~

Frequency : 50Hz

Dielectric Strength : 2.5KV

Ambient Temperature) : -5 ̊ C to 40 ̊ C

Distribution Board-Reference Standards : IS 8623; IS 13032

SALIENT FEATURES:

The Distribution Boards (DBs) exhibit cutting-edge design, with a wide selection featuring side knockouts that improve cable and conduit entrance flexibility from all angles. These pre-configured DBs ensure the best functioning and simplicity of usage by including Neutral Links, Earth Links, Bus bars, and interconnecting wires/links.

Refer Catalogue for more information
