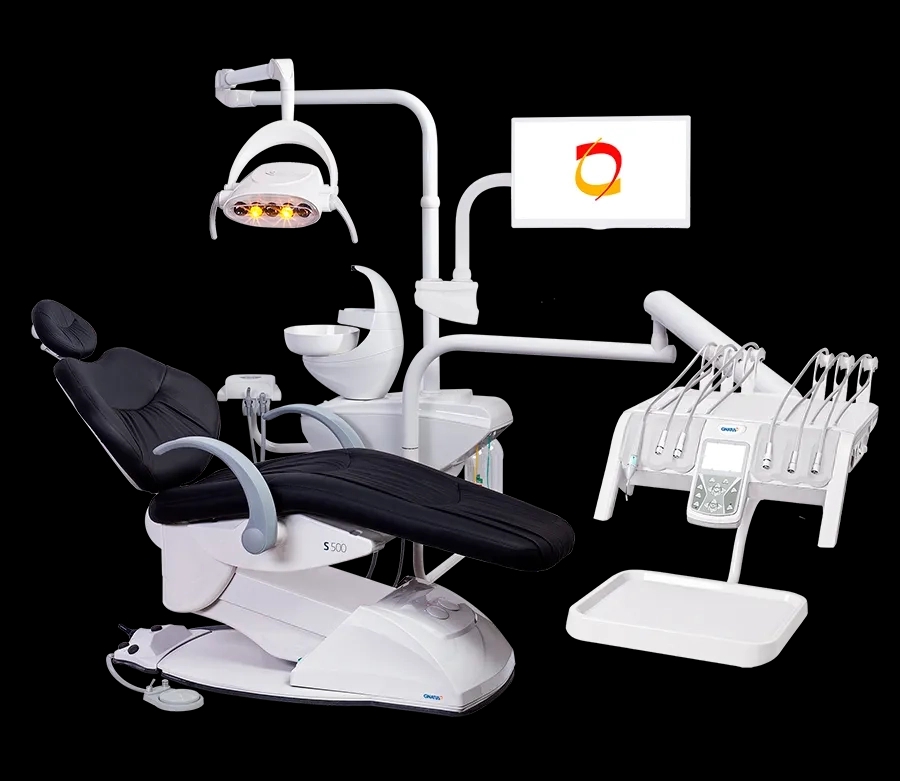

Gnatus S500 H Dental Unit

The S500 H is a dental unit made to surprise the dentist with the most advanced features. Besides the joystick control pedal with all integrated functions and much more comfortable upholstery, the chair still has the Trendelenburg position and pneumatic folding arm. Built in solid steel, with anticorrosive treatment and coated in high impact polystyrene, it provides greater security, resistance and durability to the set.

Power supply : 127/220 V (Internally selectable)

Frequency : 50/60 Hz

Type of Protection against Electric Shock : Class I Equipment

Degree of Protection against Electric Shock : Type B Applied Part

Mode of operation : Continuous, intermittent load - 1 min. work and 4 min. rest

Protection against harmful water penetration : IPX 0 - All the examination chair, except the command pedal and IPX1 - Command pedal

Input power : 200 VA

Protection Fuses : F1 and F2 (127 or 220V~ = 5A) delayed action

Maximum recommended load on the chair : up to 200 kg

Maximum capacity of load applied in the trays of equipments : 2 Kg

Net Weight : 120 Kg

Color : Black, White

Features :

Large delivery unit - Possibility to include up to 6 terminals

Chip Blower Function - More agility during your procedures

Anti-Crush System - Prevents accidents by automatically ceasing all chair movements
