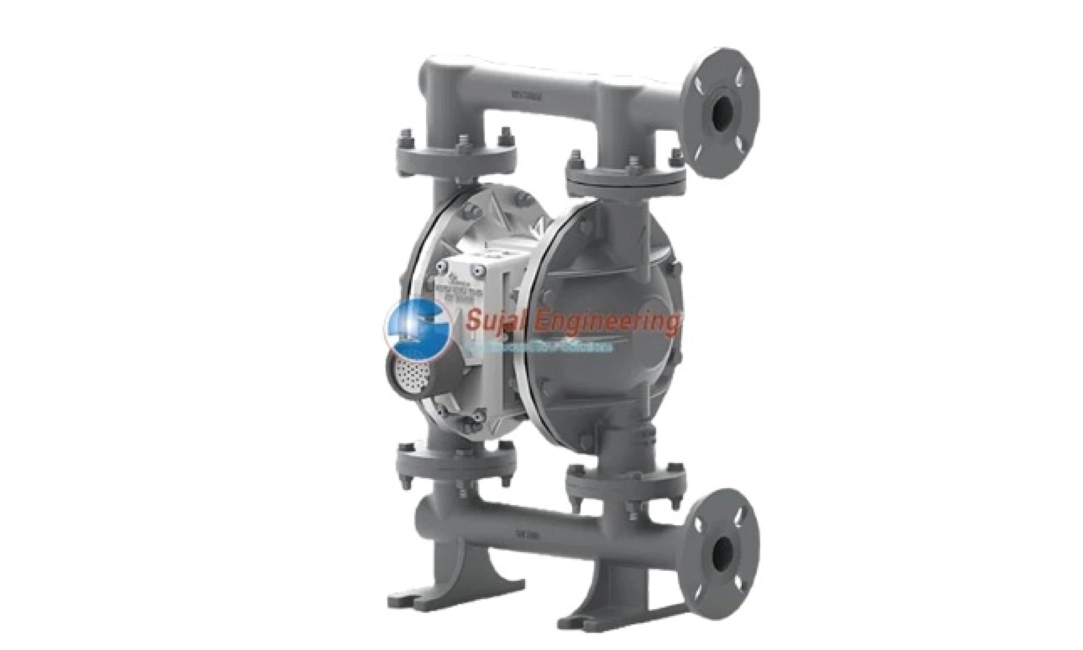

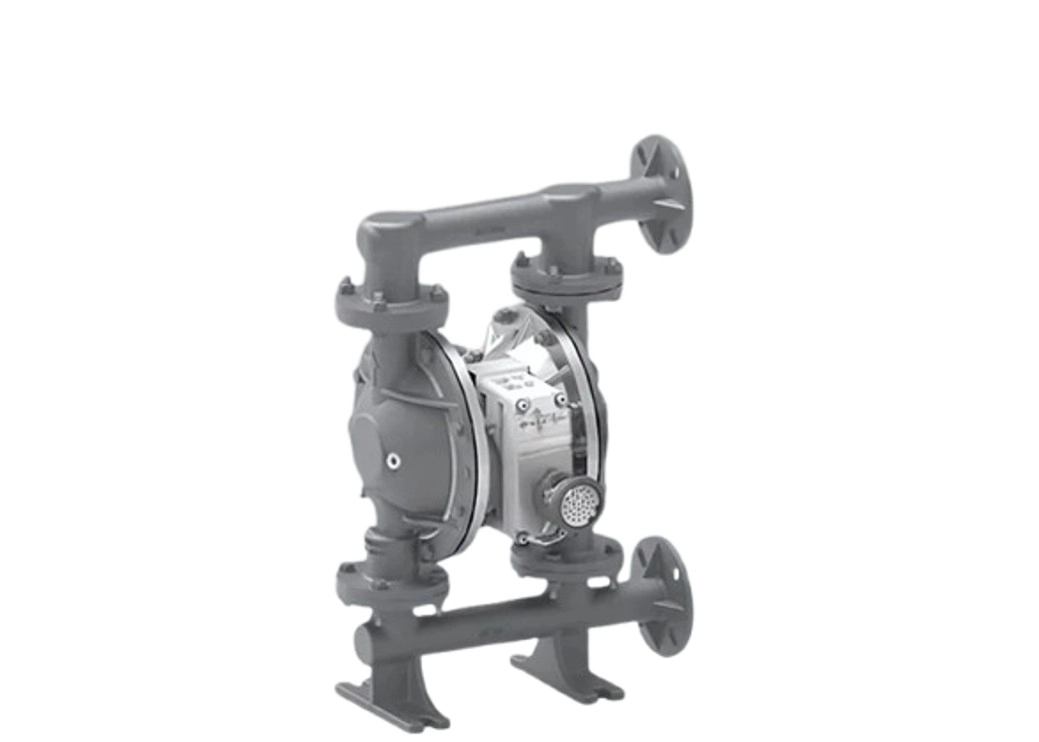

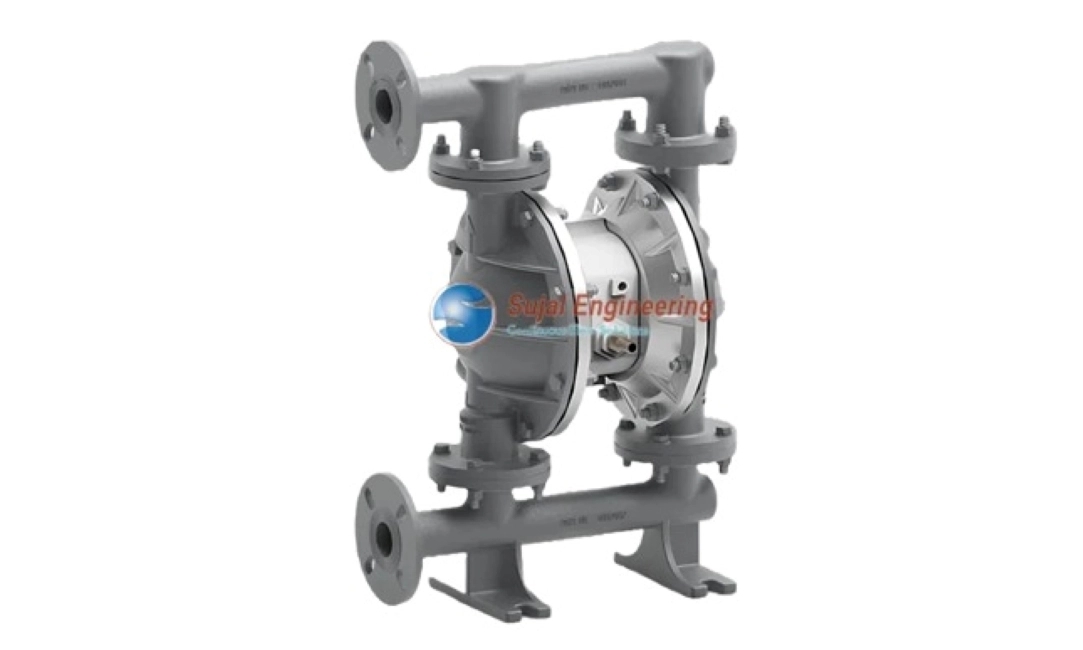

Sujal Ss Air - Operated Double Diaphragm Pumps

SS Air-Operated Double Diaphragm pumps that employ two diaphragm layers to make the pump operations more efficient. SS Air-operated diaphragm pumps are positive displacement pumps consisting of two pumping chambers. The pumping action is created by the movement of compressed air in these chambers. Because of this, the pumps are used for low-pressure applications but are known for their leak proof and robust operations.

Technical Specification :

Head : Up to 50 Mtr

Flow : Up to 45 m³/hr

Temperature : Up to 120°C

Material : Investment Casting CF8M (SS-316),SS304, Aluminium

Max. Particle Size : 6.35 mm

Air Pressure : Max. 8.0 Kg/cm²

Air Inlet Size : 1/4″ to 1/2″

Air Exhaust : 3/4″

Suction : Dry: 4.57 Meter / Wet: 7.6 m.

Benefits :

Ability to Run Dry : This is a very useful feature to have when the pumping application may result in varying & inconsistent suction conditions.

Ability to Self-Prime : This means that diaphragm pump can be used as sump pumps & where positive suction conditions are not available.

Ability to Pass Solids : The ball & seat/check-valve design allows for AODD pump to pass solid particles.

Applications :

Food & Beverages

Paints & Coating

Pharmaceutical

Steelworks & Foundries

Cosmetics & Cleaning

Galvanic

Pulp & Paper

Constructions & Mining

Energy & Power Plant

Automotive

Refer Catalogue for more information
