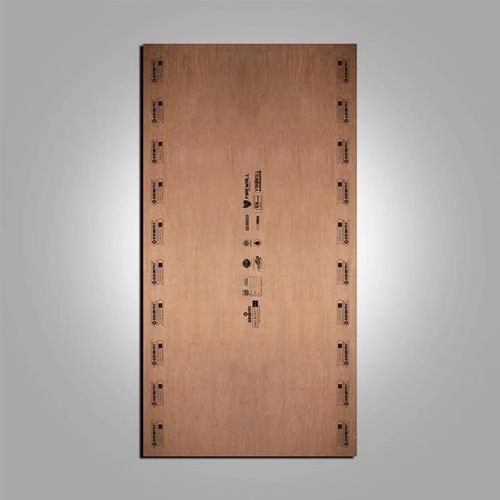

Century Architect Ply

Architect Ply by CenturyPly is a premium BWP marine-grade plywood with advanced Firewall and ViroKill technology. It is borer and termite-proof, ensuring long-lasting durability with superior GLP technology. Backed by a lifetime warranty, it offers unmatched quality and reliability. Plus, it comes with a remarkable four-times money-back promise.

Adhesive : BWP Marine-Grade Plywood

Gap, Split, Overlap, Warp : Negligible

Moisture Content (%) : 8 - 12

Glue Shear Strength (GSS) (N) : > 1450

GSS Wet Test (N) : > 1200

GSS Mycological Test (N) : > 1200

Specific Gravity : Approx. 0.75

Water Absorption (%) : < 5

Pre-Pressing : Flat Panel / Balanced Surface

Face Thickness : Thicker Face

Veneer to Veneer Ratio : As per Standards

Preservative Treatment :

Two Tier Treatment:

Glue Line Protection (GLP)

Finished Panels are treated with ACC (Acid Copper Chrome Compound)

Static Bending Strength (N/mm²) :

Modulus of Rupture (MOR):

Along the grain : > 60

Across the grain : > 50

Modulus of Elasticity (MOE):

Along the grain : > 8000

Across the grain : > 5000

Available Thickness: 4 mm, 6 mm, 9 mm, 12 mm, 16 mm, 19 mm, 25 mm

Name of Test : Results of CenturyPly Products with Firewall Technology : Time Expected as per IS under Test Condition

Flammability : More than 30 minutes : For a 19 mm thick ply should be a minimum of 30 min

Rate of Burning : More than 30 minutes : For a 19 mm thick ply should be a minimum of 20 min

Flame Penetration : Greater than 3 times the thickness of ply in minutes : Minimum of 2.5 times the thickness of ply in minutes

Flame Spread Index : 12 : Standard 0–25 for Class A

Smoke Developed Index : 155 : Standard 450 for Class A

Lifetime Warranty
