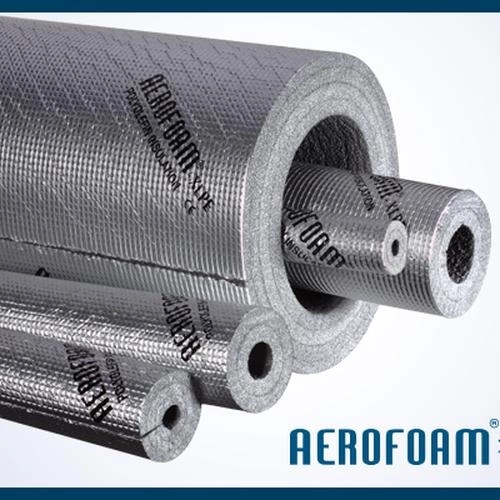

Aerofoam® XLPE Tubes/ Pipes

Aerofoam® XLPE Insulation Tubes are manufactured in India from closed cell cross-linked polyolefin foam. Featuring excellent condensation control, long term thermal blocking. The tubes can be coated with foil or can be purchased without a coating.The Aerofoam® XLPE Polyolefin Tubes offer very good dimensional stability, exhibiting a “memory effect” which enables them to retain their original shape after being compressed.The tubes do not present any human health hazards with a production process that is free of CFC and HCFC, resulting in very low VOC levels. The product is considered environmentally friendly with low Ozone Depletion Potential (ODP) and Global Warming Potential (GWP) and complies with LEED requirements which aid buildings in accumulating more LEED points.

Material: Closed cell cross-linked polyolefin foam with Aluminium foil

Density: 25kg/m³ (foam core only)

Color: Gray with silver foil.

Application:

Chilled water pipe insulation

Hot water pipe insulation.

Properties :

“CLASS O” as per BS 476 Parts 6 & 7

FSI<25, SDI<50 as per ASTM E84

Very low water vapor permeance (0 perms)

Water vapor diffusion resistance factor > 60000

Low thermal conductivity (λ23˚C = 0.034 W/mK)

Operating temperature (from -80 ˚C to +105 ˚C)

Chemical resistance to most chemicals like sodium, silica, fluoride, chloride, etc.

Antibacterial & anti-fungal

Environmentally friendly (ODP = 0 and GWP < 5)

Very low VOC emission level ( < 0
