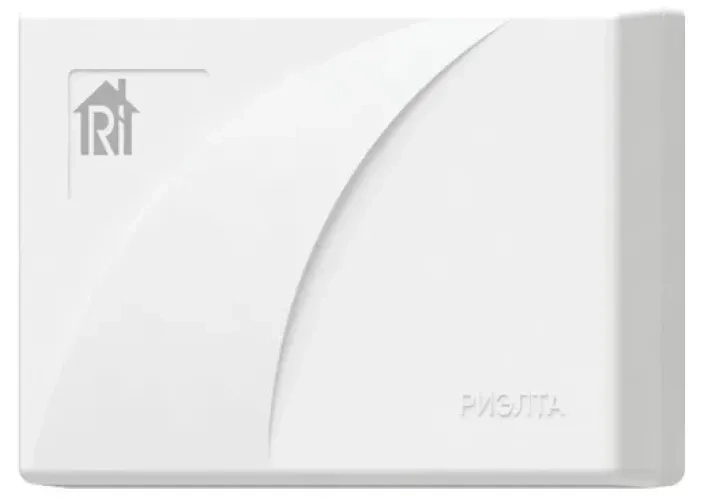

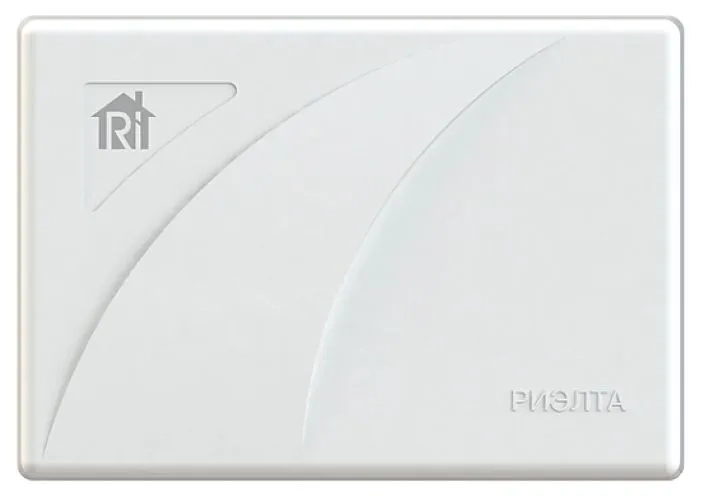

Rielta Ri-HUB-1i - Home Automation System

The control panel "Ri-HUB-1" in the RiDom home security system that combines and manages the operation of all connected RiDom radio devices, monitors their status and sends messages to the information subsystem of the cloud server.

Ri-HUB-1i controls the operation of the security system, communicating with the connected radio channel devices via a secure two-way radio “Ri-Contact-R” protocol, and also provides broadcasting of events from the server in the SurGard protocol.

Complete set:

The control panel "Ri-HUB-1" - 1 pc.

Battery LIR18650 - 1 pc.

Fasteners.

Operational documentation

Voltage: from 110 to 240 V

Current consumption: to 5 Vt

Temperature range: from -20 °C to +55 °C

Protection class: IP20

Dimensions: 170х120х45 mm

Case opening control: Yes

Frequency range: from 865 to 867 MHz

Number of connected devices: to 31

Number of users: to 20

Number of rooms: to 30

Backup battery: Li-Ion 2200 mAh

Battery life: to 24 hours

Radio signal strength: to 25 MW

Radio range: to 1500 metres

Connection channels: GSM/ GPRS (900/1800 MHz), Wi-Fi (2,4 GHz)

Number of SIM cards: 1

Refer Catalogue For More Information
