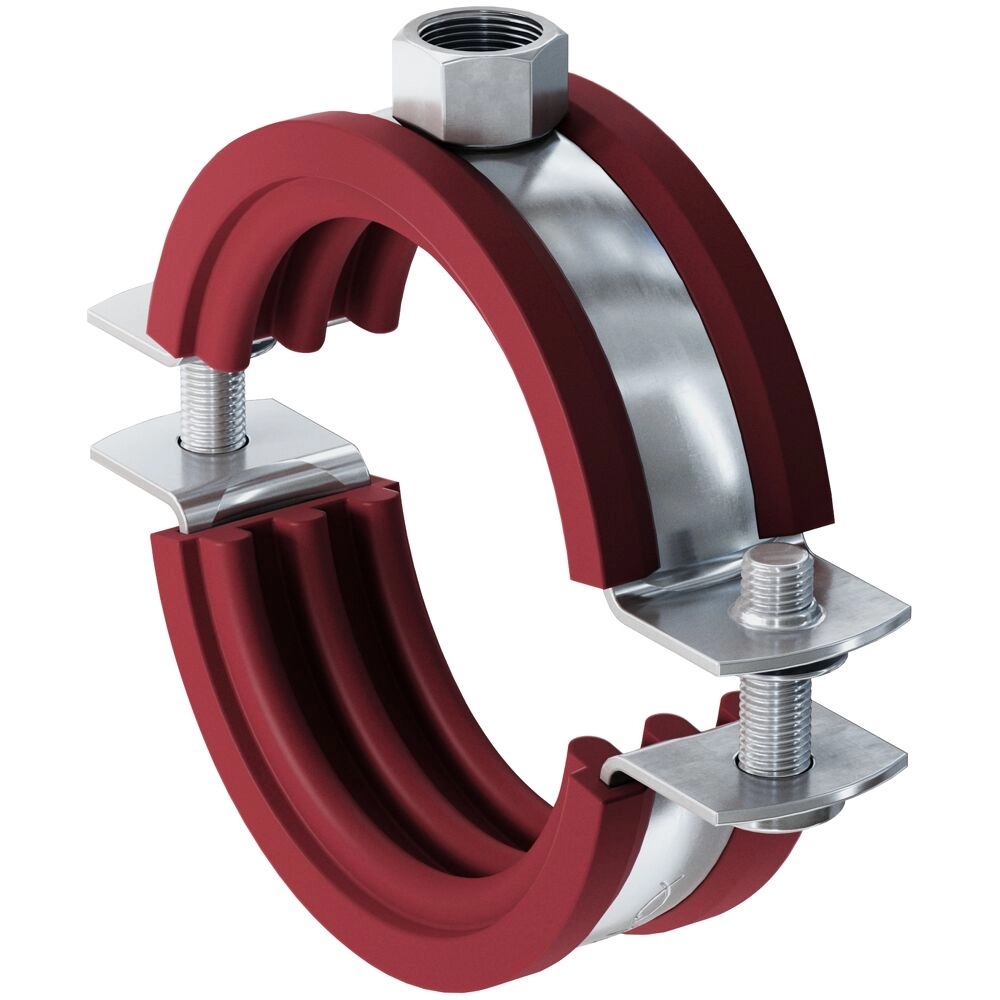

Silicone Pipe Clamp FRSH

The fischer pipe clamp FRSH is a two-screw pipe clamp made from zinc-plated steel in material quality DD11 with a highly temperature-resistant silicone sound insulation insert. The two-screw version enables optimised adjustment in line with the outer diameter of the pipe. This enables hot water and steam pipelines with media up to +220°C and an outer diameter of 15 to 168 mm to be securely fixed indoors with a threaded rod or stud screw

Advantages

The special silicone sound insulation insert allows a use with average temperatures of up to +220 °C.

The two screws enable an easy adjustment to suit the outer pipe diameter.

The screw's safety feature ensures trouble-free installation.

Properties

Material: steel DD11 (material no. 1.0332) acc. to DIN EN 10111

Zinc plating: electro zinc-plated

Connecting nut: (up to FRSH 59 - 63) resistance welded, M8 and M8/M10 SW 13, M10 SW 17

Locking screw: flat head screw with combination recessed head

Material sound insulation insert: silicone

Sound insulation: for DIN 4109

Temperature range: -40 °C to +220 °C

Hardness: 60 ± 5° Shore A

Fire behaviour: DIN 4102: Class B2

Applications

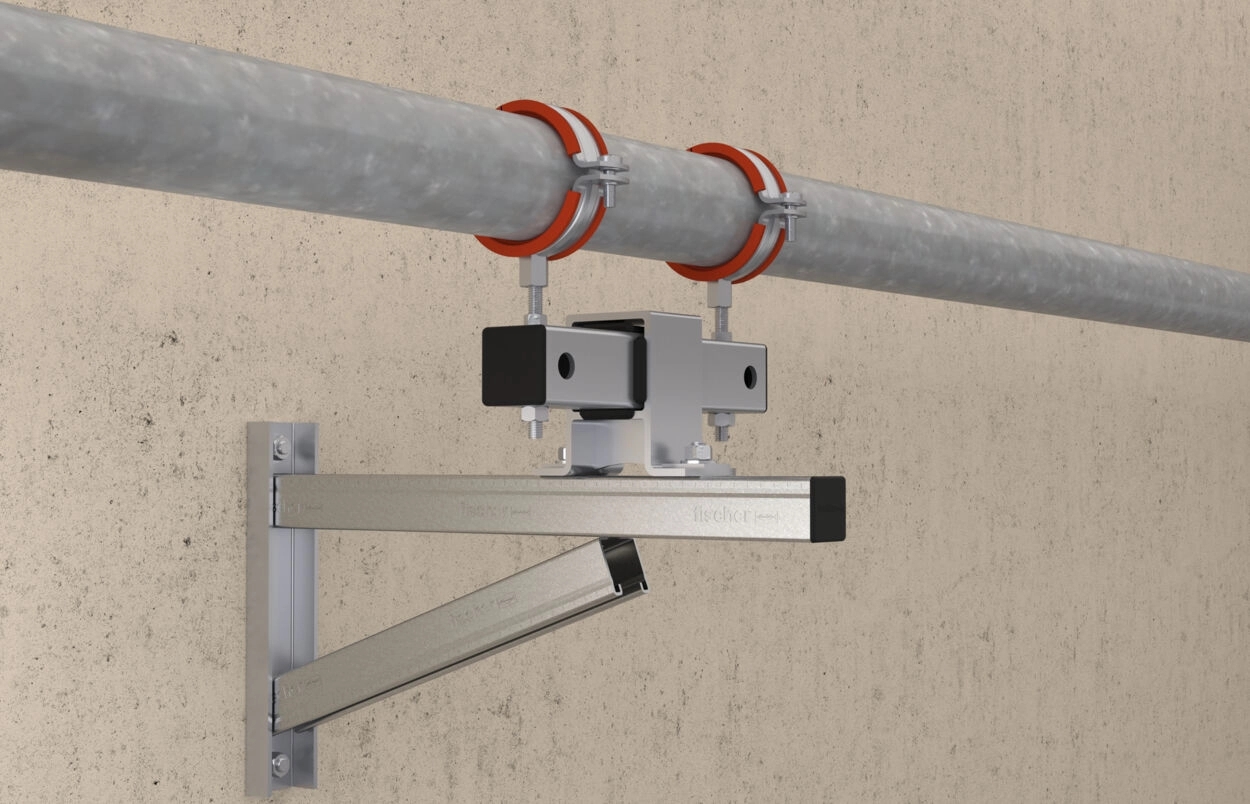

Fixing of high-temperature pipelines with threaded rods or stud screws (e.g. steam pipes).

For use in dry interior areas.
