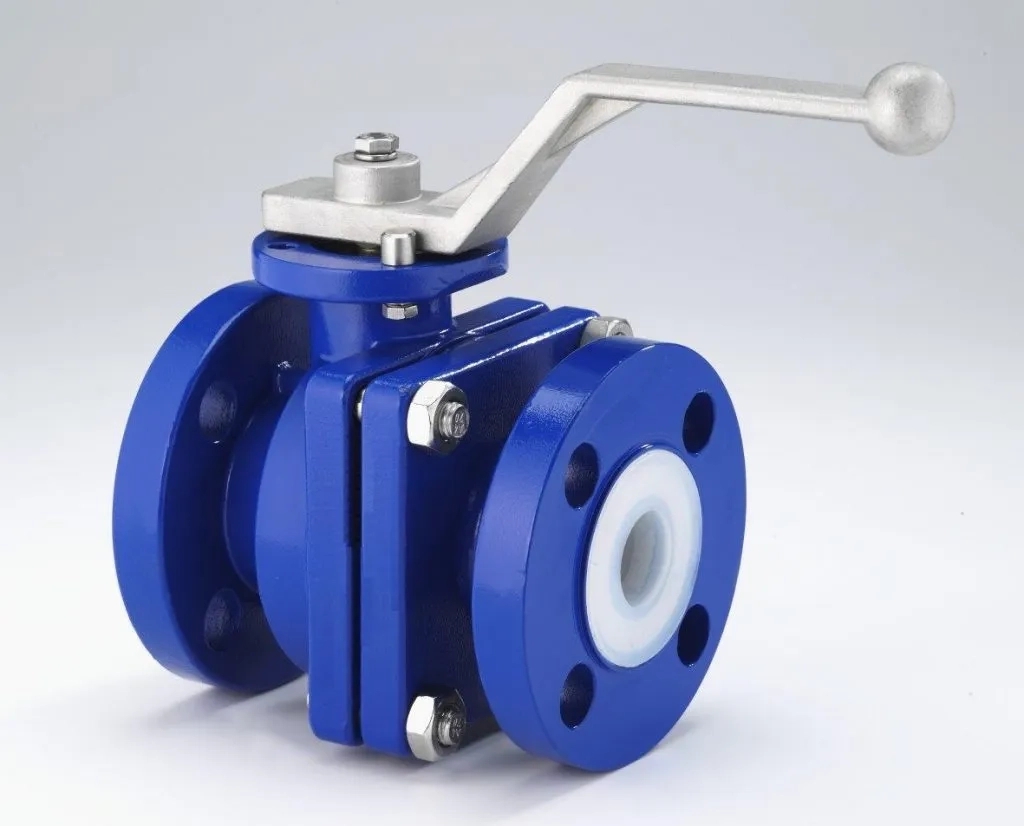

Vescoat Ptfe Lined Ball Valve

We are manufacturing wide range of the 2pc design ball valves.Manually lever operated, gear operated, actuator operated. Our Valves Supplied with Anti-Static Devices for Protection Against Potentially Dangerous Electrostatic Discharge

Features:

Interior valve bodies as well as the stem and ball are individually lined with PFA or PVDF/FEP

Ball is fully encapsulated in PFA/FEP

Anti-blow-out stem assembly prevents stem blow-out even when the top gear is disassembled

Short-pattern face-to-face dimensions in accordance with ANSI B16.10 and ANSI B16.5, Class 150 (flange dimensions), facilitating easy replacement of fully lined or sleeved plug valves with PTFE-lined ball valves without altering existing pipework

Valves are supplied with anti-static devices for protection against potentially dangerous electrostatic discharge

Free-floating ball valve principle ensures the ball seals against the downstream seat ring, providing positive sealing force even at low line pressure

All inherent design features of a conventional ball valve including low torque, quarter-turn operation, bubble-tight shut-off, and minimal pressure drop

Agriculture Industry

Chemicals Industries

Food Industries

Refineries Industries

Cement Industries

Pharmaceutical Industries

Oil & Gas Industries

Fertilizers Industries

Steel Industries

Water Treatment Plants

Dairy Plants

Petro-Chemicals Industry

Refer Catalogue for more information
