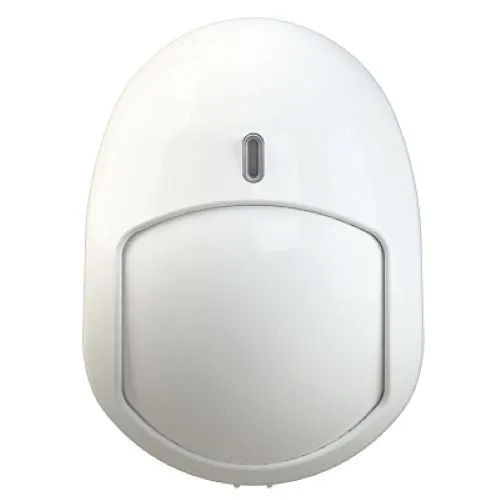

Rielta Pyrone-5 - Passive Infrared Sensor

Passive infrared detector Pyrone-5.

Features:

Pet Immunity: up to 40 kg

Adjustable sensitivity: 10 kg mode (cats, small dogs) – maximum detection range 10 m, 20 kg mode (cats and medium size dogs) - maximum detection range 9 m, 40 kg mode (long-haired dogs) - maximum detection range 8 m, 40 kg mode (all breeds of dogs up to 40 kg) - maximum detection range 7 m,

Alarm output: energized Form A (NC) relay

Contents of the kit:

Passive infrared detector Pyrone-5 - 1 pc.

Operational documentation

Code: 00000009669

Pet immunity: 40 kg

Voltage: from 8 to 30 V

Current consumption: 15 mА

Temperature range: from -30 °C to +55 °C

Protection class: IP41

Dimensions: 105х75х56 mm

Installation height: 2,3 meters

Maximum detection distance: 10 meters

Case opening control: No

Detection zone: Volumetric

Refer Catalogue For More Information
