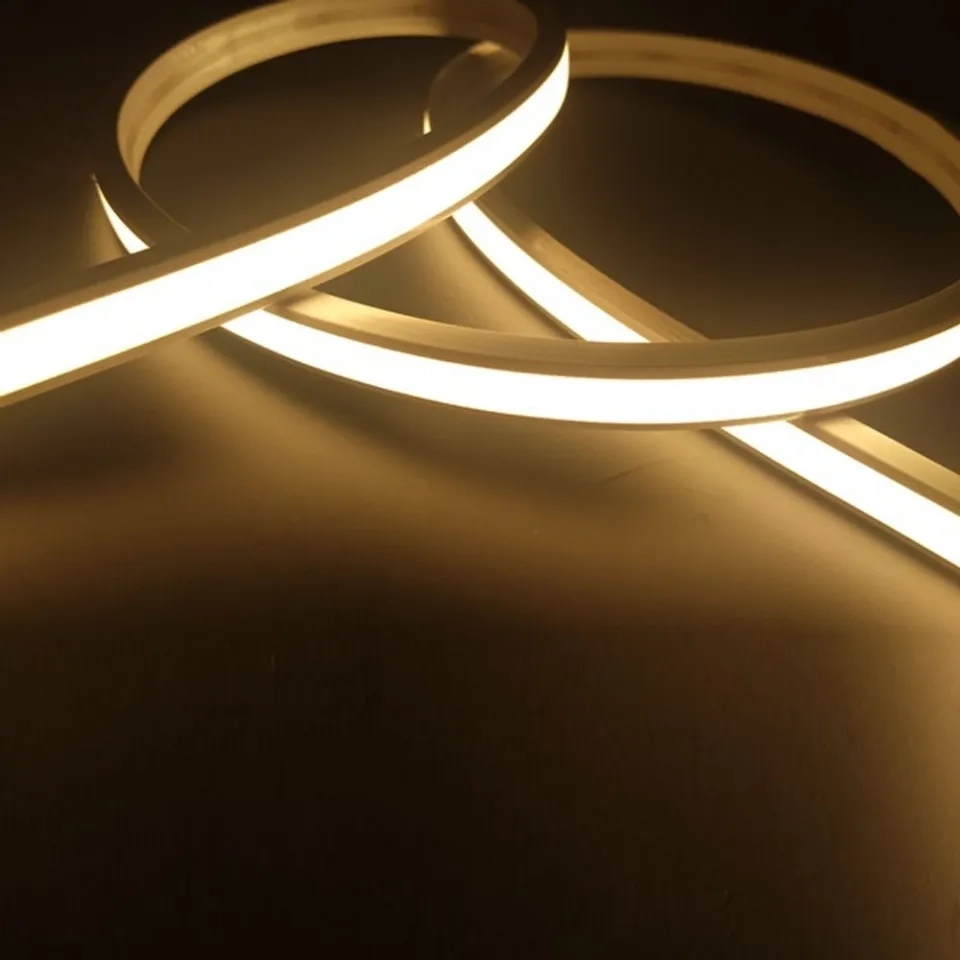

Jaquar Linear Flex 12W

Features :

Color options: single color

Design: superior design with exquisite craftsmanship ensure stable and reliable performance

Flexibility: top bending, min. bend diameter 60 mm

IP grade: silicone extrusion, injection molded cap, IP68 protection. Glue process end caps, IP67 protection

Customisation: multiple spec options, can be customised upon requirements

Material: 100% Food-Grade Silicone

Mounting Clips Included

Range : Linear Light

Code : JQL-GRY-LFLXE012W

Power Consumption 12W

Luminous Flux 500 lm/m at 4000K

Beam Angle 110°

Color Temperature 3000K, 4000K, 6500K

Input Voltage DC24V

Control ON-OFF

Power factor ≥0.95

Housing Stainless Steel body

Cover Tempered glass

Dimensions W12xH12mm

Net Weight 0.6Kg

IP Rating IP68

IK Rating IK06

Mounting Brackets / fixed profile / adjustable profile

Operating Temperature -30°C ~ +45°C

Lifespan >50,000Hrs (Ta=35°C@L70)

THD <10%

Certificate BIS / CE / RoHS
