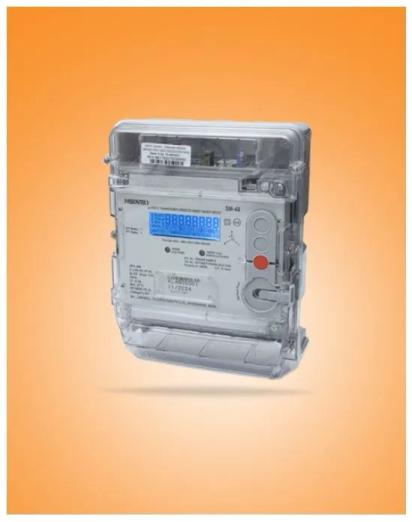

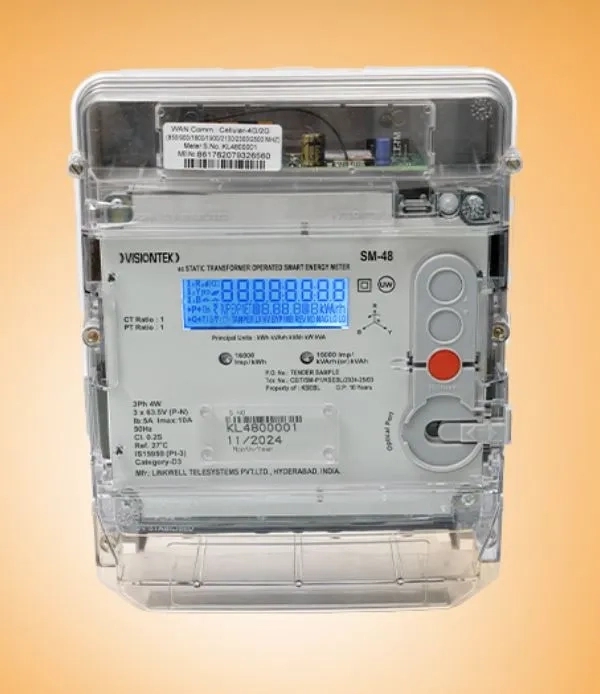

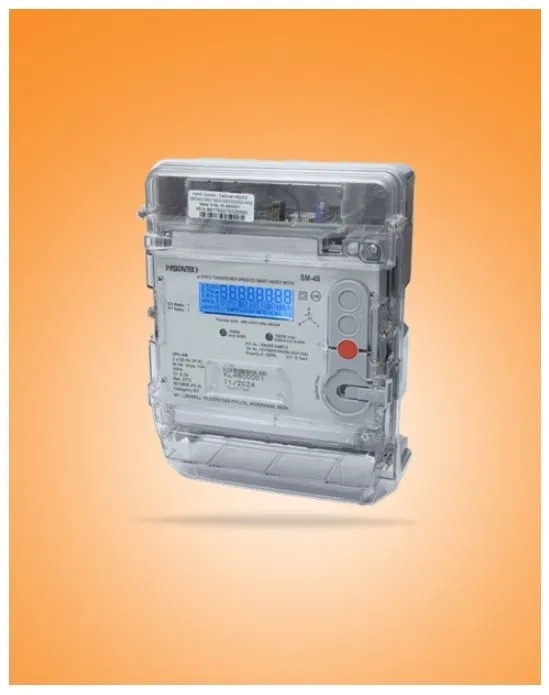

Visiontek Three-Phase HT Transformer Operated Smart Energy Meter SM-48

Three-Phase HT Transformer Operated Smart Energy Meter SM-48, High precision class 0.2S meter designed for revenue metering application for high-value industrial (HT) consumers in distribution network and power generation and transmission networks.

VISIONTEK SM-48 Three Phase HT Transformer Operated Smart Energy Meter from Linkwell is a high precision class 0.2S meter designed for revenue metering application for high value industrial (HT) consumers in distribution network.

VISIONTEK SM-48 Smart Meters has a field replaceable communication module that offers two-way communication for meter data transfer. The communication module is swappable between different communication technologies as specified in IS 16444 Part 2 such as 6LoWPAN or Cellular (GSM/GPRS/2G/4G LTE)

Features:

Class 0.25s accuracy and compliance with IS/IEC standards

LCD for display of measured parameters with legends & communication network indications

LED output for Calibration/Testing and Meter activity

Optical Communication port for local meter reading

Universal NIC (Network Interface Card) for interoperability, field replaceable, plug and play remote communication

Remote meter reading through GSM/GPRS modem/ NBIoT Module/LPRF module with 6LoWPAN network protocol

Push/Pull data mechanism for meter data transfer

Last gasp/first breath/other event alerts

Firmware download over the air feature

Digital inputs for health monitoring of DT
