FG Glass Mesh

To Create Stunning Insulated And Laminated Panels, We Have Partnered With Sefar® From Switzerland And Gkd™ Germany. We Offer Three Types Of Mesh – Expanded Metal, Woven Metal, And Metal-Coated Fabric. Each Type Of Mesh Beautifully Plays With Light To Create Unique Optical Effects That Simply Cannot Be Achieved With Print Or Non-Metallic Materials. The Mesh Also Diffuses Sunlight, Which Eliminates The Need For Blinds And Cuts Down On Solar Heat-Gain. Our Sefar® Mesh Offers One-Of-Its-Kind Single-Sided Metal Coating That Allows For Free Expression On The Glass Exterior Without Impeding Views From The Interior!

Product Family :

Mesh Metal Fabric : Metallic Coated Fabric Mesh (Sefar® and Syntarqui®)

Mesh Expanded : Expanded Aluminum Mesh (GKD® or Others)

Mesh Woven : Woven Metal Mesh (GKD® or Others)

Technical Specifications :

Process Type : Nip-Rolled or Vacuum Treated Followed by Autoclaving for Laminated Glass. Vertical, Fully Automatic Assembly Line for Insulated Glass

Glass Types : Clear, Extra Clear, Ultra Clear, Tinted, Solar-Control Coated, Low-E Coated

Additional Process Compatibility : Ceramic-Frit, Digitecture® Digital Printing, Sand-Blasting, Acid Etching, Holes, Cutouts, and Notches

Product Enhancement : Can Be Converted From/To Glassshield, Curveshield, Facadeshield, Burglarshield, Bulletshield, Blastshield, and Fire-Safety Products

Glass Thickness Range : 3 mm to 19 mm

Unit Thickness Range : 6.38 mm to 100 mm for Laminated Glass; 24 mm to 100 mm for Insulated Glass

Edge Types : Rough Grind, Arrissed, Super Polished

Interlayer Type : Kuraray SentryGlas® (USA)

Colour Types : Gold, Silver, Bronze, Copper, Titanium, Chrome, Red, Aluminum, and Other Custom-Printed Types

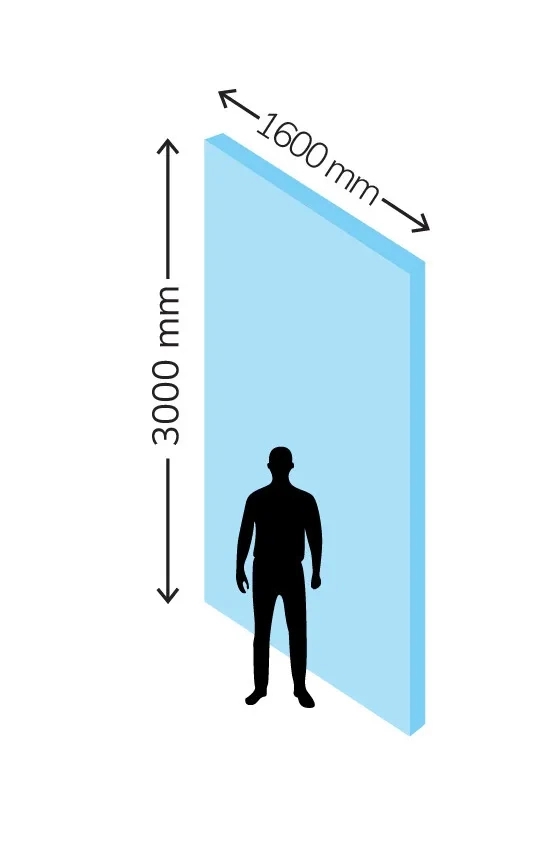

Dimensions :

Minimum Size : 200 mm x 300 mm

Maximum Size : 1600 mm X 3000 mm*

Refer Catalogue for more Information.
