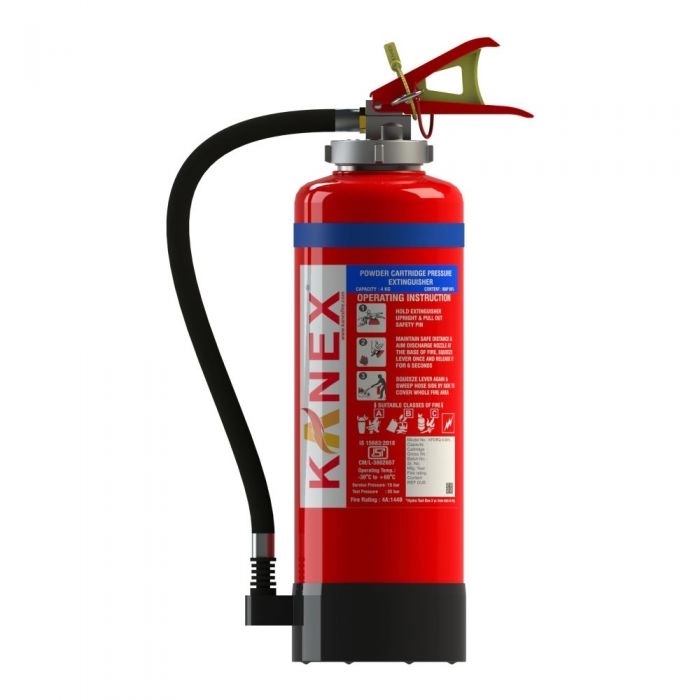

Kanex 9 Kg Abc Fire Extinguisher (Map 90 Based Cartridge Operated)

Good quality MAP powder capable of fighting class A,B,C & Electrical fires

Co2 gas cylinder confirms to IS: 4947.

Brass chrome plated valve

Internally Epoxy polyester and externally pure polyester powder coating

Best available Fire ratings in its class.

Latest BIS approved – (IS 15683:2006) and ISI marked.

More flexible EPDM hose with less prone to cracks.

Tamper seal to detect any mishandling.

Anti-corrosive Phosphate treatment of Cylinders.

Large loop stainless Pull pin.

Lever lock for better handling.

Bar Code labeling for better traceability.

Easy to maintain, recharge & service.

MODEL: KFDRQ-9-90%

Capacity: 9 kg

Design: Hose & Nozzle

Fire Rating: 6A:233B

Height (Approx.): 585 mm

Diameter (Approx.): 180±10 mm

Average Discharge Time: 30 Sec.

Average Range of throw: 5 m

Average Discharge: 95%

Operating Temperature: -30 °C to +60 °C

Service/Max. service/Test Pressure: 15 / 17 / 35 bar

Expelling Agent: Co2 gas

Co2 gas cartridge: 200 gm

Full Weight (Approx.): 15.3 kg

Empty Weight (Approx.): 6.3 kg

Shipping Weight (Approx.): 15.8 kg

Packing Standard: 2 in 1 - 24.5"X15.3.0"X8.0"

Mounting Bracket: Wall bracket

Approvals: BIS

Warranty: 5 Years Warranty

Refer Catalogue For More Information
