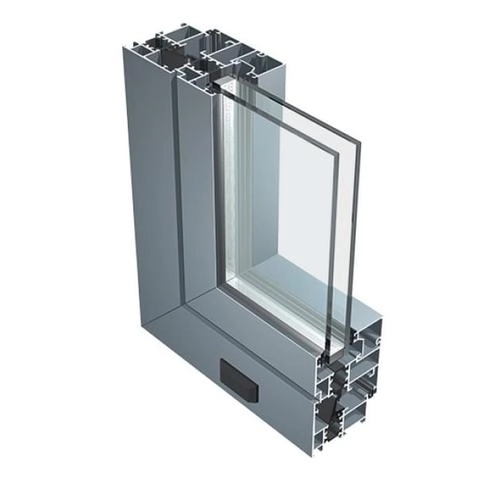

Aluk 56IW-IWL-ID - Casement Windows

The 56IW Casement Window series & 56ID Door series, characterized by a section of 56mm, is used in applications where affordable thermal break solutions are required. This versatile, good-performing system allows for the realization of various construction types and design aesthetics that make this series suitable for a wide range of clientele.

Overview:

Design features:

-Flat and rounded lines.

-Sealing system with central gasket.

Options:

-Available in dual color

-All surface finishes available

-Customized high resistant finishes for aggressive environments upon request.

-Windows with 1, 2 or more inward opening sashes

-Tilt & turn

-Pivot

-Outward openings

-Compatible with 56ID doors

Application type:

Residential sector for the construction of balcony doors for villas, apartments and towers.

Technical Data:

Performances : 56IW c

Uw value W/m²K (Double glazing) : 56IW: 1,7, 56IW: 1,7

Uw value W/m²K (Triple glazing) : 56IW: 1,2, 56IW: 1,2

Uf value W/m²K : 56IW: 3,5, 56IW: 3,5

AWW Classification : 56IW: 4 / 8A / A4, 56IW: 4/8A/A4

Acoustic performance (dB) : 56IW: 46 dB (glass 66.2a/20/44.1a)

Size limits:

Max glass thickness (mm) : 56IW: 20mm to 36mm, 56IW: 20mm to36mm

Max sash width (mm) : 56IW: 1400 (normal casement) / 1500 (turn and tilt), 56IW: 1250

Max sash height (mm) : 56IW: 2400, 56IW: 2350

Maximum sash load (kg) : 56IW: 100 (normal casement) / 130 (turn and tilt), 56IW: 160

Solutions:

Inward opening : 56IW: X, 56IW: X

Outward opening : 56IW: - , 56IW: X

Top hung : 56IW: X, 56IW: -

Bottom hung : 56IW: X, 56IW: -

Tilt & turn : 56IW: X, 56IW: -

Tilt & slide : 56IW: X (IWL SERIES)

Horizontal pivot : 56IW: - , X

Vertical pivot : 56IW: X

Features:

Multi-point locking : 56IW: - , 56IW: X

Dual color option : 56IW: - , 56IW: X
