FAAC B680H - Automatic 24V Hybrid Barrier

Max beam length : 2 – 8 m

Opening time : 1,5 – 6 s

Use frequency : Continuous use

2,000,000 cycles thanks to the Brushless + Hydraulic motor and “unlimited” springs

Removable cabinet available in 4 colours or stainless steel.

High logistic optimization: a single barrier model suitable for all lengths.

Family Models

Model : B680H

Item code :104680

Model : B680H

Power supply voltage : Switching: 100 ÷ 240V~ 50/60 Hz

Electric motor : Brushless 36V

Motor rotation speed : 1000 ÷ 6000 rpm

Max. power : 240 W

Motor-pump unit capacity : 3.2 lpm

Material type : Steel

Type of treatment : 100 micron protective primer + polyester painting or stainless steel cabinet

Encoder : Magnetic absolute encoder

Type of deceleration : Electronic – via encoder

Type of beam : Round

Operating ambient temperature : -20°C ÷ +55°C

Protection class : IP56 (TÜV certified)

Weight : 85 Kg (65 Kg pillar + 20 Kg cabinet)

Type of oil : FAAC HP OIL

Dimensions (LxDxH) : 469 x 279 x 1100 mm

Beam max length : 2 ÷ 8 m

Opening time : 1,5 s (90° – 2m) – 6 s (90° – 8m)

Use frequency : 100%

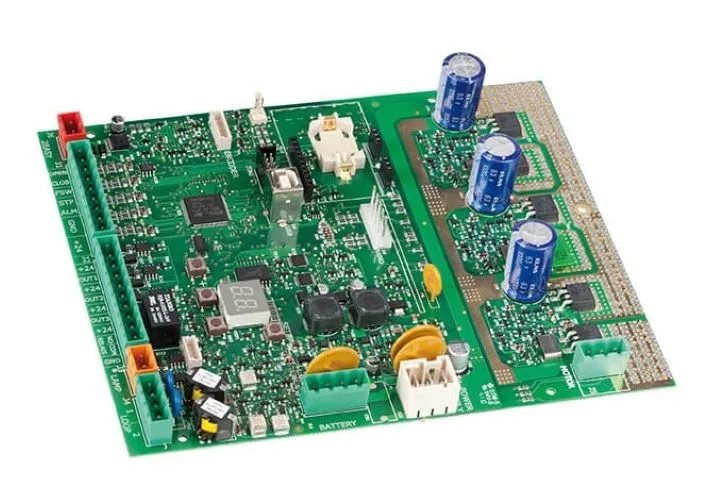

Electronic equipment : E680

Refer Catalogue for more information
