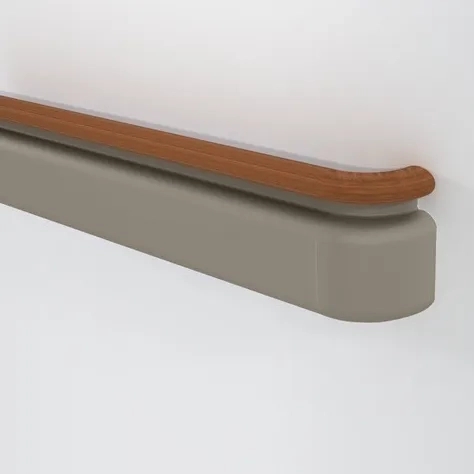

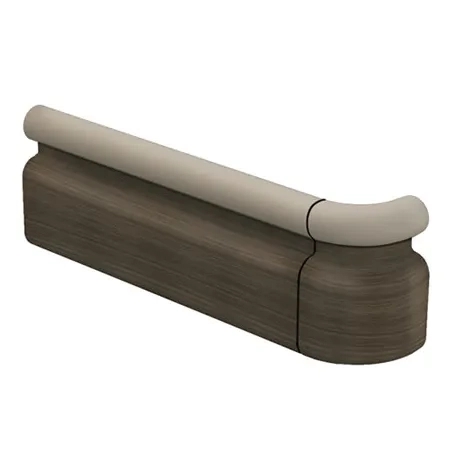

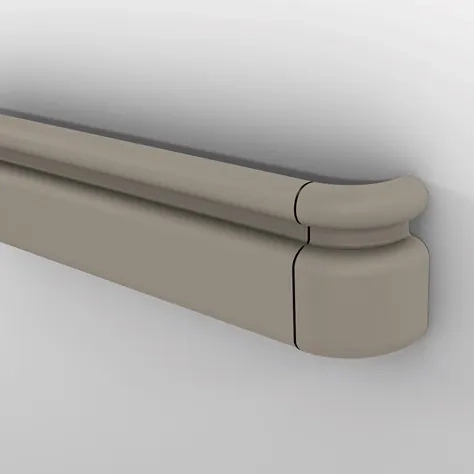

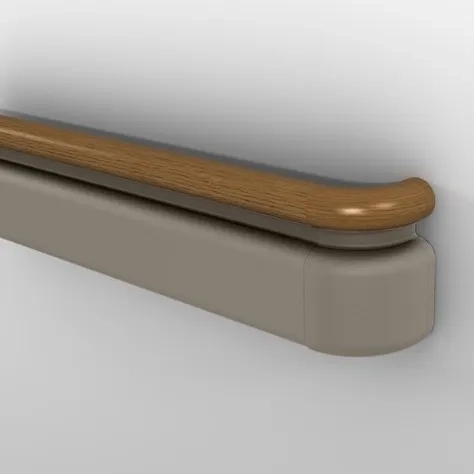

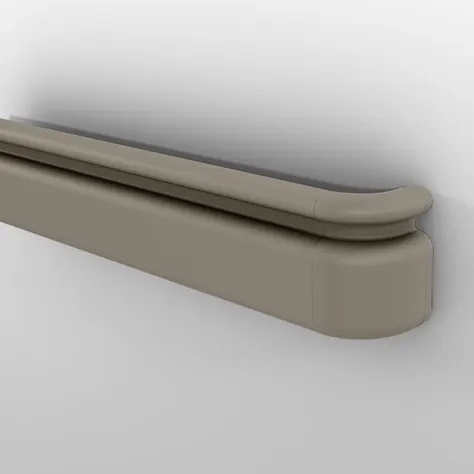

Inpro 3110 Series Handrail

The 3100 Series Handrail combines superior impact protection with a comfortable grip and hundreds of style options. Choose a round or oval top profile and get continous wall protection from the internal vinyl bumper on the lower portion of the handrail. The 3100 Series meets safety codes with ADA and ANSI compliance.

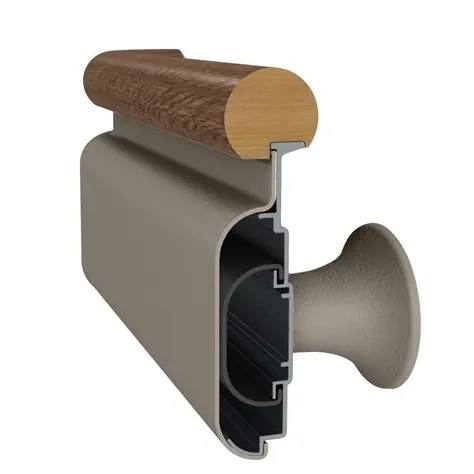

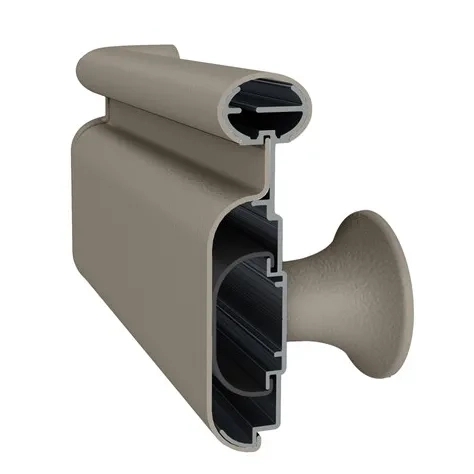

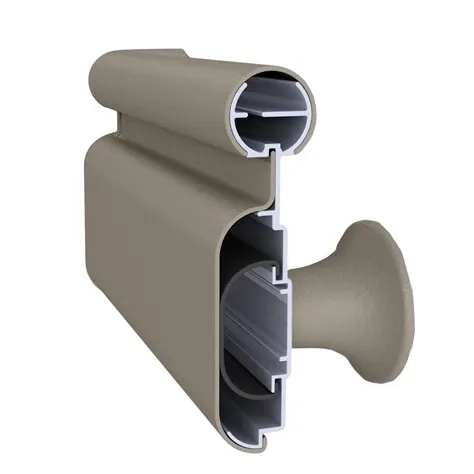

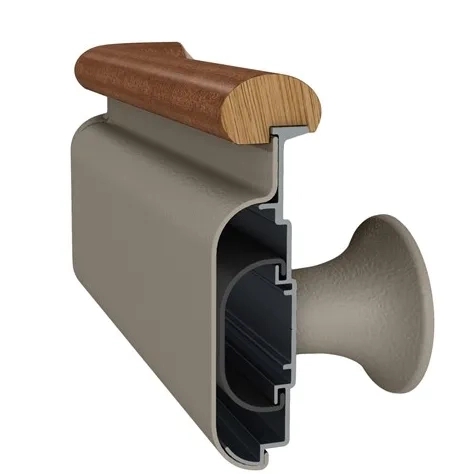

3110 series Handrail (MAKE IN INDIA) with integratred vinyl wall guard.

Vinyl: Snap-on covers of .080" (2mm) thickness shall be extruded from chemical and stain resistant unplasticized polyvinyl chloride (uPVC) with the addition of impact modifiers.

No plasticizers shall be added (plasticizers may aid in bacterial growth).

Surface shall have a pebblette texture for scratch and stain resistant rigid vinyl cover mounted on a sturdy continous aluminium retainer of .080" (2mm) thickness that shall be fabricated from 6063-T5 aluminium with a mill finsh.

6-1/8 " (155mm) height x 1-1/2" (38mm) full round gripping diameter, system extends 3-1/8" (79mm) from the wall.

Integrated vinyl cover, 4" (101mm) high.

Inner snap-on vinyl impact black bumper of .070" (1.8mm) thickness and 2-1/4" (57mm) high shall be extruded from chemical and stain resistant unplasticized polyvinyl] chloride (uPVC).
