Ke Butterfly Valve 2014W

Our butterfly valves have been very commonly used in various water supply and other industrial services, irrespective of sizes, pressure ratings, fluids handled, type of operators etc. our BF valves are the most preferred choice of the discerning customers. We have also kept our valves in tune with the latest technological advancements in materials, manufacturing, pattern making & foundry & operators fields. This has enabled us to offer valves in Cast / fabricated constructions in Cast Iron, Carbon & Alloy Steels & Stainless Steels & also rubber-lined variety. The types of operators offered are Manual, Electrical, and Pneumatic & Electro- Hydraulic.

Features :

Easy and quick opening and closing. Small fluid resistance. It can be frequently operated.

Simple structure, small size, and light weight.

It can transmit mud, and has the least amount of liquid accumulated at the outlet of the pipeline.

Under low pressure, good sealing can be achieved.

Good regulating performance.

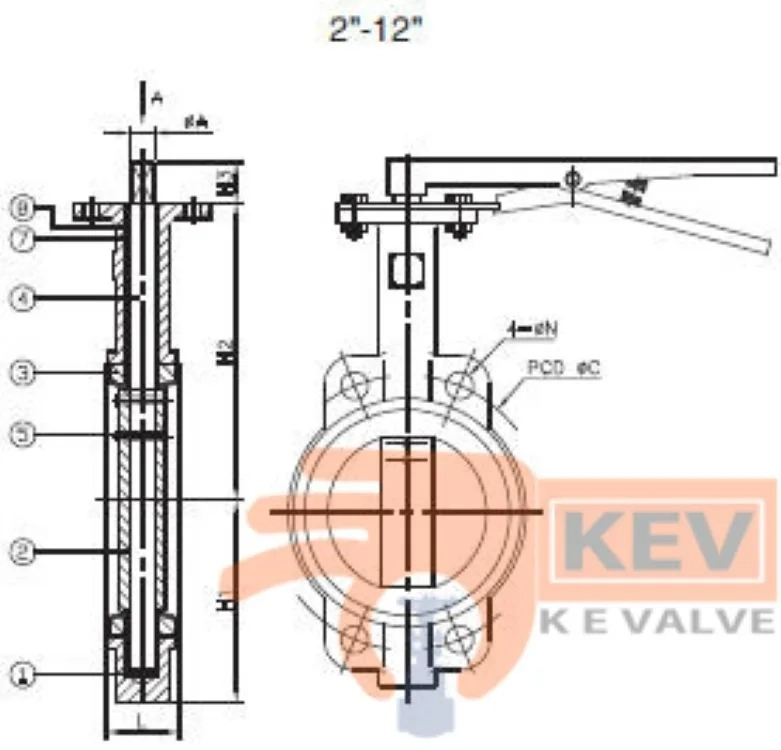

2″~24″ (DN50~DN600)

W. P. : PN10/16 CLASS 125/150 JIS 10K

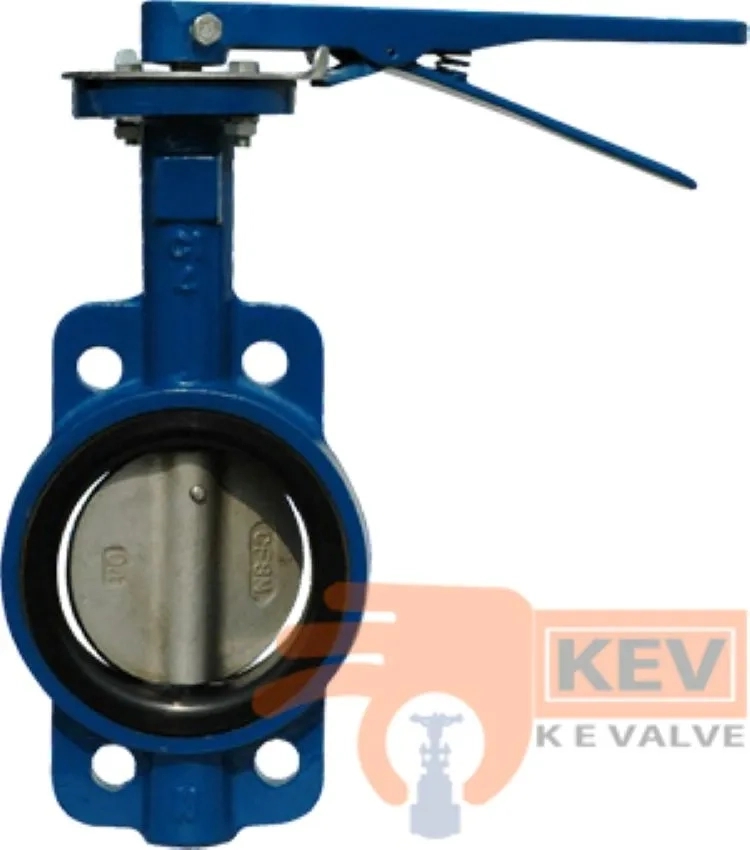

Wafer type

Lever operator / Gear operator (option)

High performance butterfly valve-2014H

Refer Catalogue for More Information.

Technical Specification :

Valve type : Centric Disc Butterfly valve with a single piece Rubber lined body

Body type : Short wafer (sandwiched between flanges)

Seat type : Integrally moulded with the body.

End Connection : Wafer Sandwiched

Size range : 40 NB to 300 NB

Pressure rating : PN 10 / PN 1

Operating temperature range : -25 C to 130 C (depending on MOC)

Seat leakage : Tight shut off

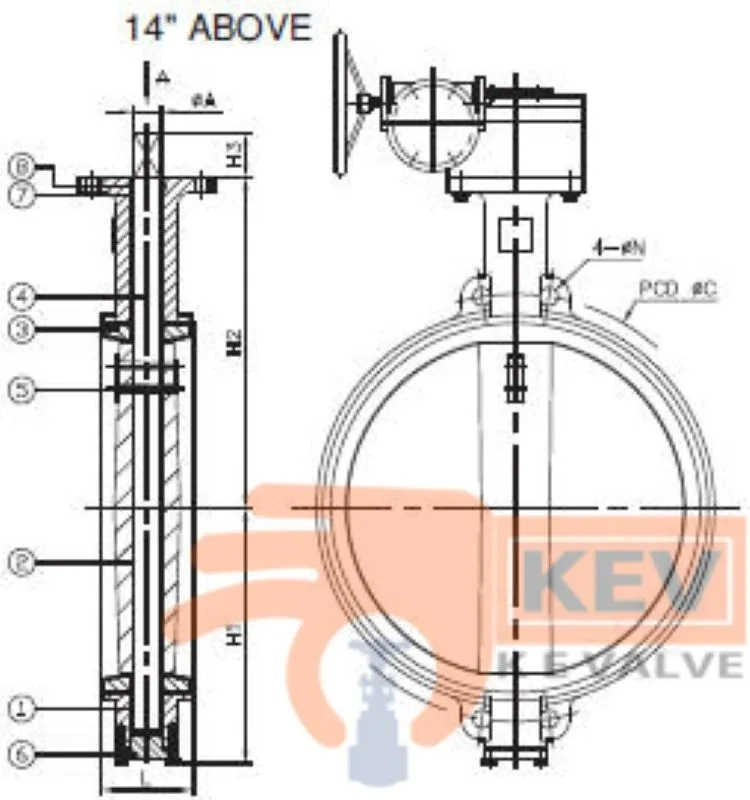

Operation : Hand lever for sizes from 40 NB to 250 NB Worm gear boxes for 40 NB to 300 NB.

Standard Material of Construction (MOC)Valve Body : CI / SGI / WCB Disc : SGI / WCB / CF8 / CF8M Seat : Nitrile / EDPM / Neoprene / Hypalon Bearing : AISI410 / SS 17.4 PH / SS 316 Steel+PTFE or SS316+PTFE
