Rielta Foton-19 - Passive Infrared Sensor

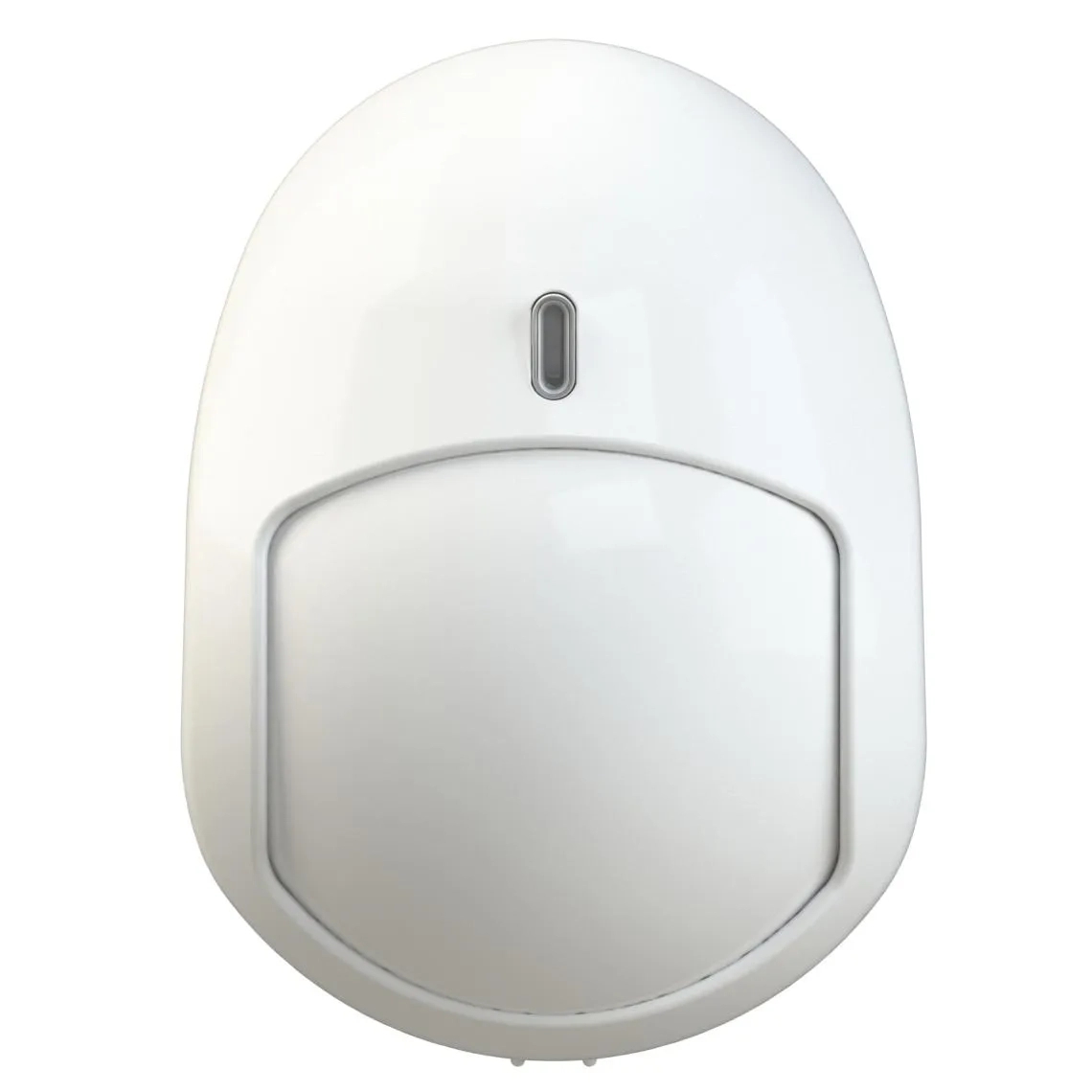

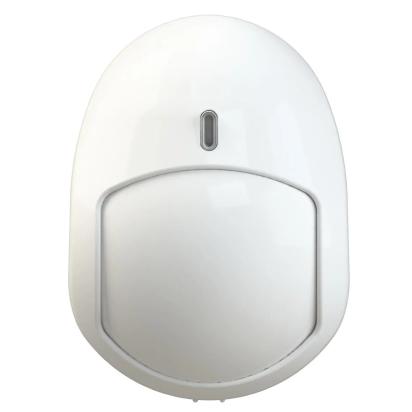

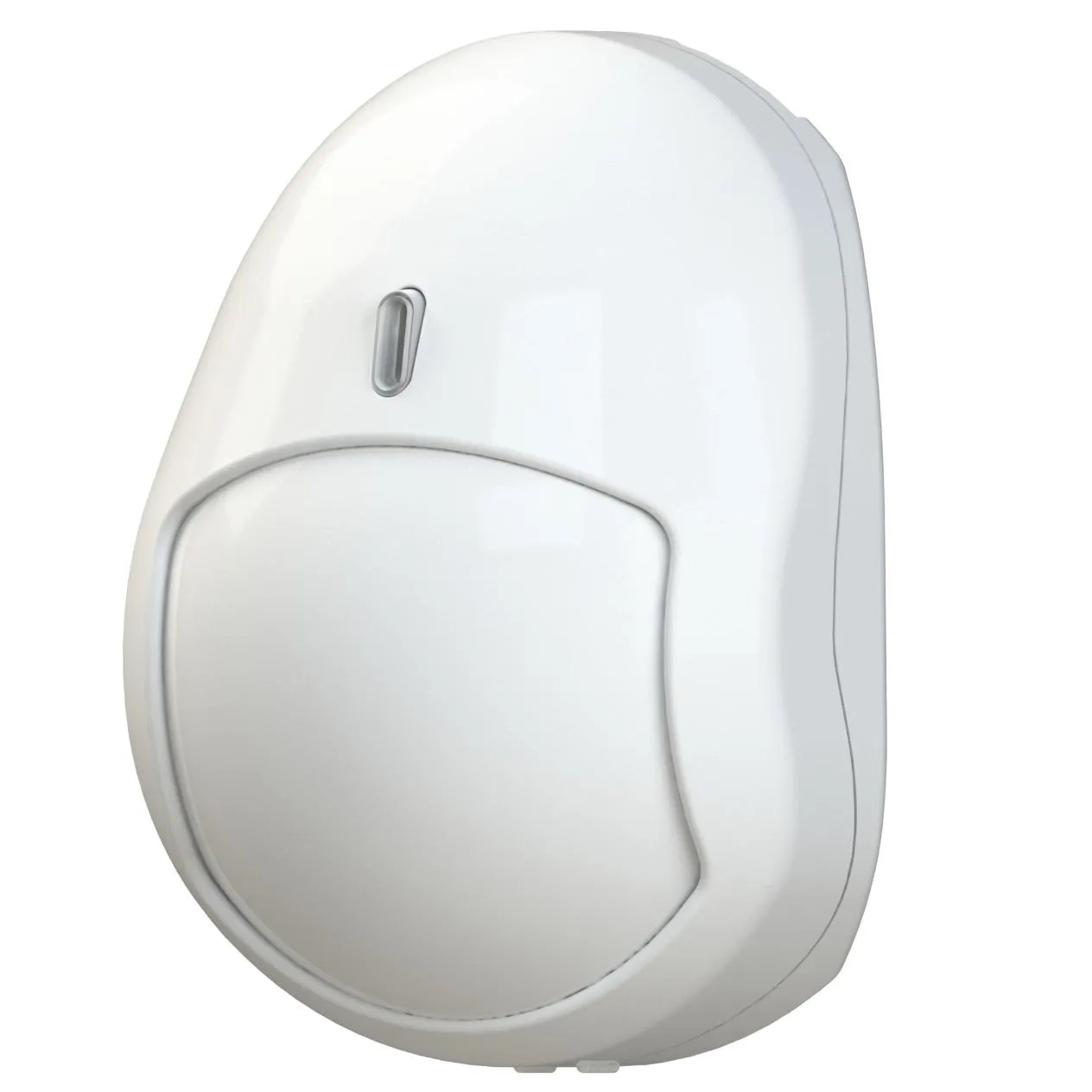

Passive infrared detector Foton-19.

Features:

PET immunity up to 20 kg

Selectable adjustment of detect ability: PET immunity up to 10 kg – maximum detection range 10 m. PET immunity up to 20 kg – maximum detection range 8 m

Wide detection angle

Tamper output

Alarm output: energized Form A (NC) relay

Contents of the kit:

Passive infrared detector Foton-19 - 1 pc.

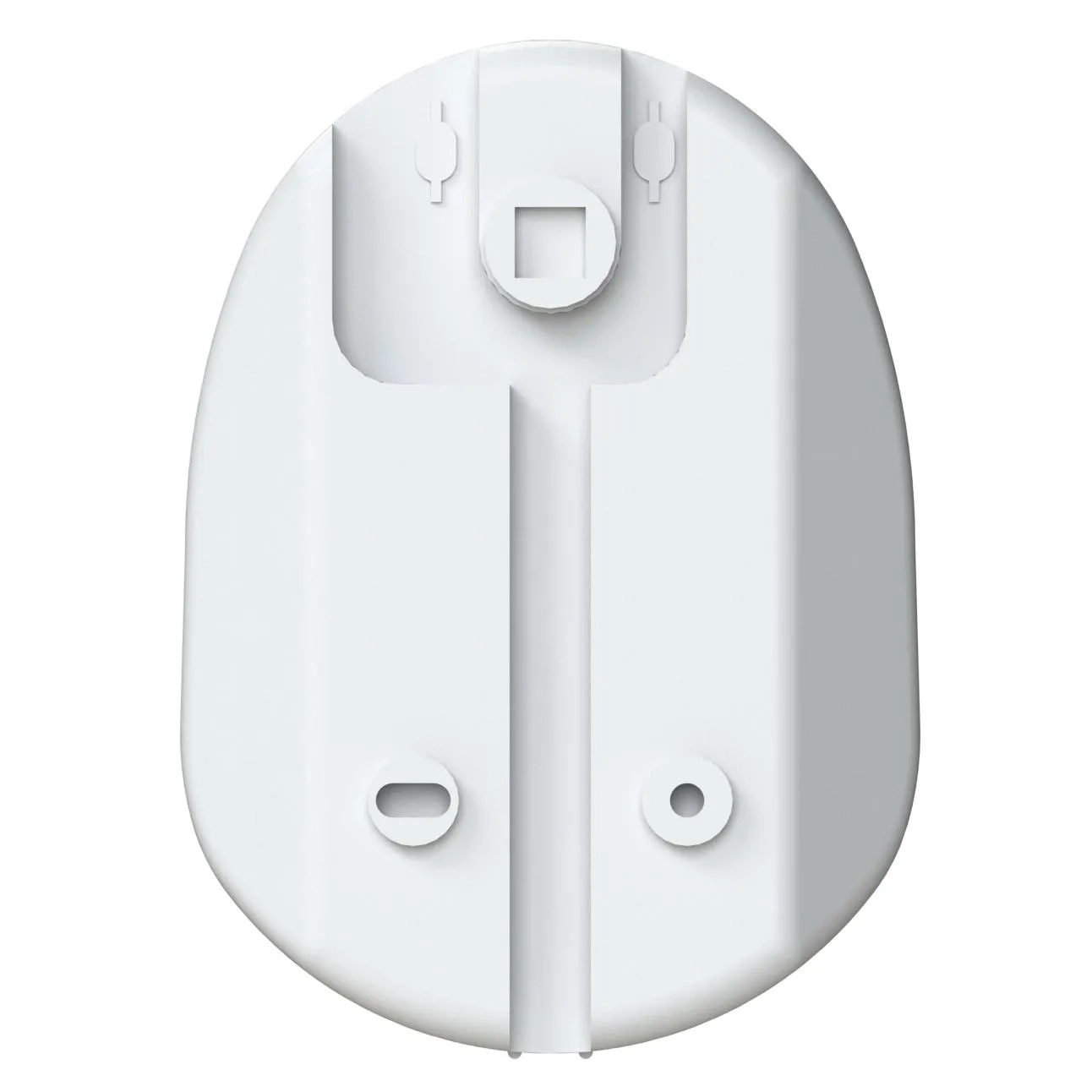

Fasteners.

Operational documentation

Code: 00000009399

Pet immunity: 40 kg

Voltage: from 9 to 15 V

Current consumption: 15 mА

Temperature range: from -30 °C to +55 °C

Protection class: IP41

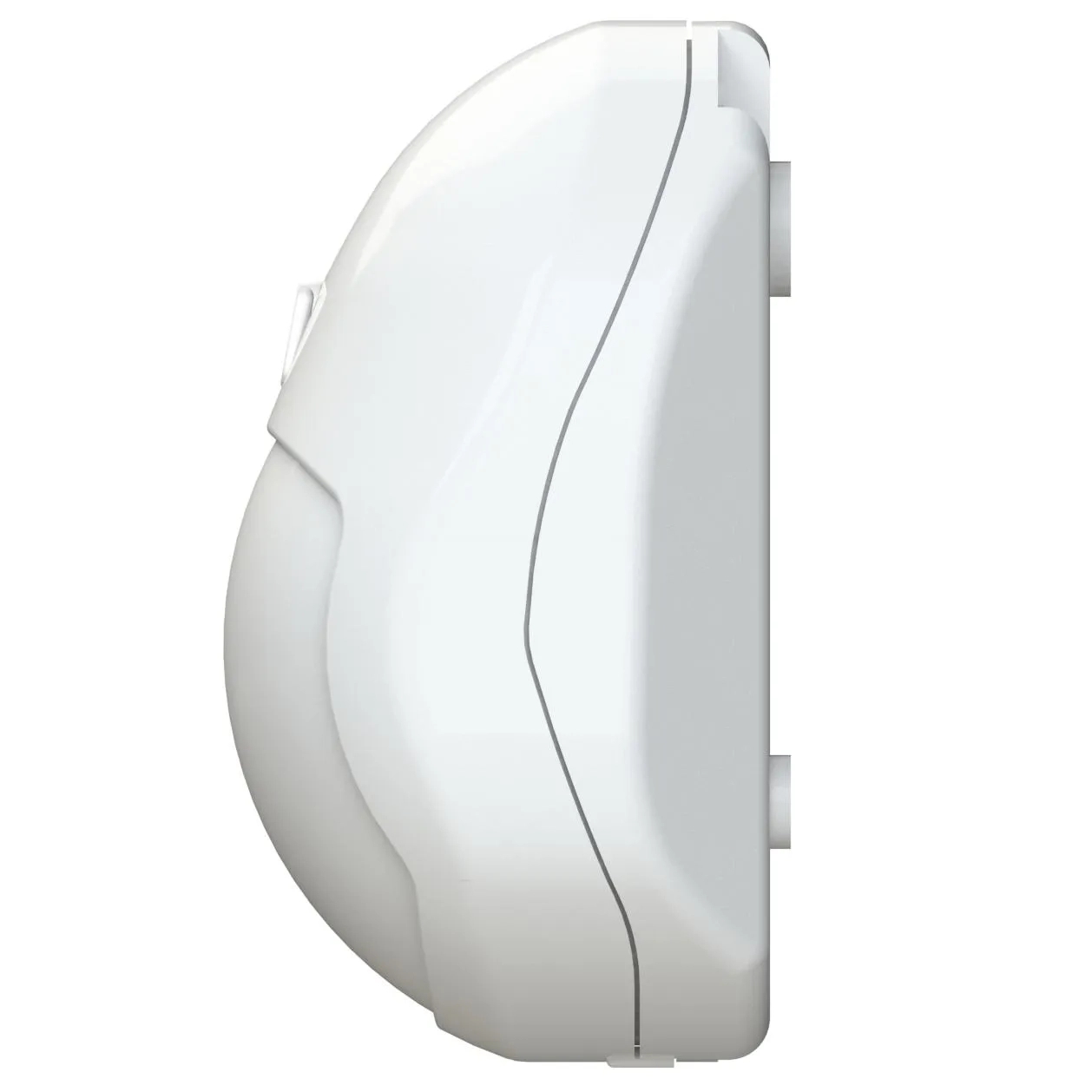

Dimensions: 126х70х55 mm

Installation height: 2,3 meters

Maximum detection distance: 10 meters

Case opening control: Yes

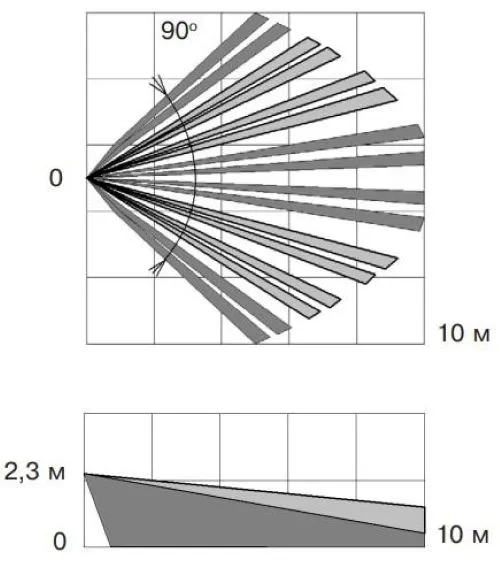

Detection zone: Volumetric
