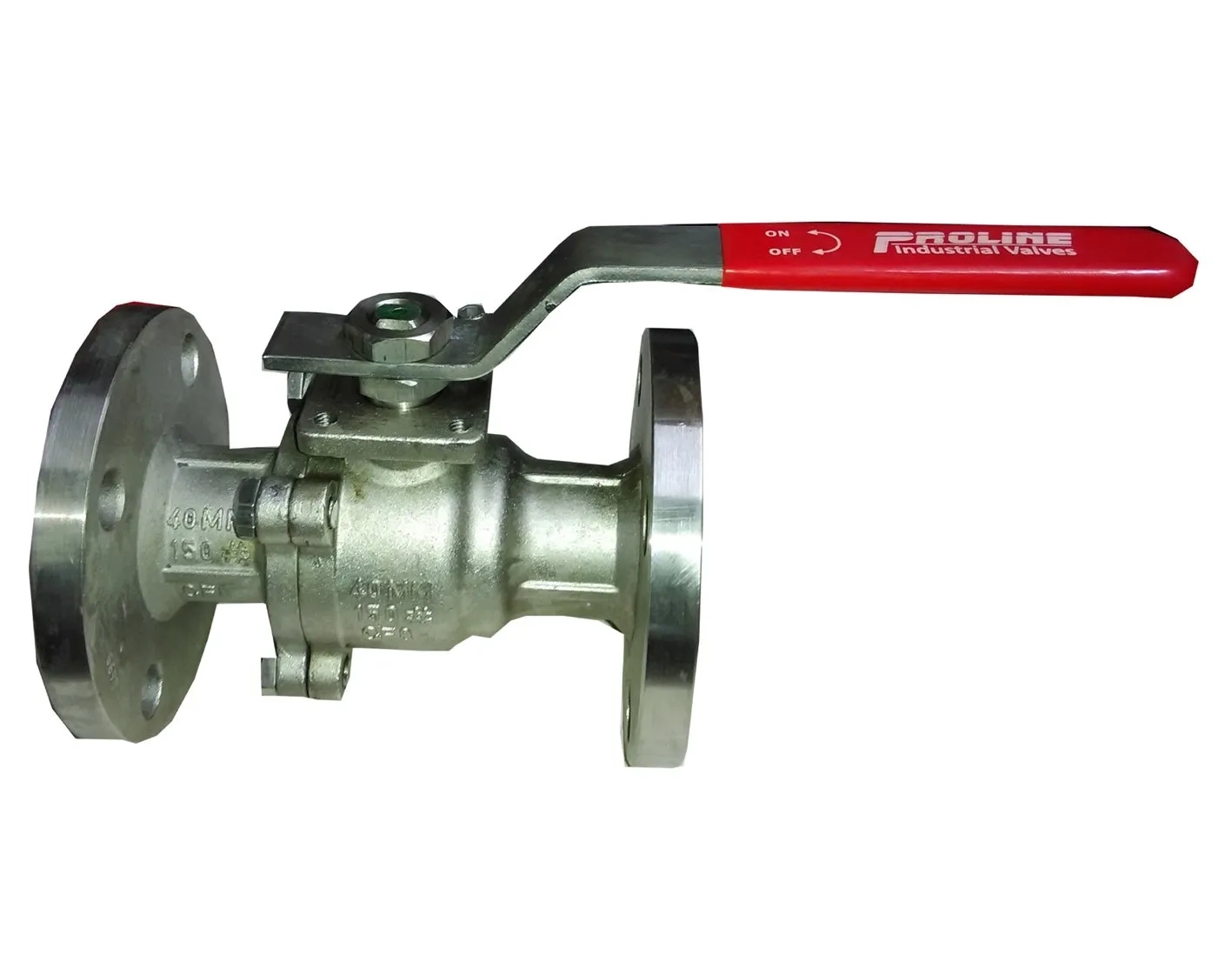

Proline Ball Valves

Manufacturer & Suppliers of Handle Operated Ball Valves and Gear Operated Ball Valves. Our valve are Bi–directional Valve with Zero Leakage at Maximum Rated Pressure. The Ball valves are Design like Single Piece Ball Valve, Two Piece Ball Valve, and Three Piece Design Ball Valve, With Flow Pattern are 2 way Ball Valves, 3 way Ball Valves and 4 Way Ball Valves.

Features Of Our Ball Valve : Ball Valves Give Greater Flows, Wider Media Compatibility

Ball Valves Has Both Side Seals Covered of Internal Ball, And Can Give Tight Shut Off After Years of Cycle Operation

High Grade of Material Used, Easy To Operate, Long Life, Less Maintenance

High Quality Seals Used and Multiple Stem Sealing with O- Rings Makes Valve Tight Shut off in also Vacuum Condition

Material Option Of Our Ball Valve:Flow Pattern: 2 Way, 3 Way, 4 Way & 5 Way

Size: 8 Mm To 400 Mm – ¼ “- 16”

Body: C.I,Wcb, Cf8, Cf8M, P.P, Upvc, Lined,Brass, Fcs

Ball: Aisi S.S, Cf8, Cf8M, P.P, Upvc, Lined, Forged

Shaft: Aisi S.S 410, 304, 316, 316L, K500 Monel

Seat: Rptfe, Teflon, Peek,Gft, Metal To Metal

Pressure Rating: Ansi 125 #, 150 #, 300 #, 800#

Ends: Screwed Type, Socket Weld Type, Flanged Type, Tc End

Leakage: Tight Shut- Off To Class Vi

Operation: Hand Lever Operated, Gear Operated And Actuator Operated
