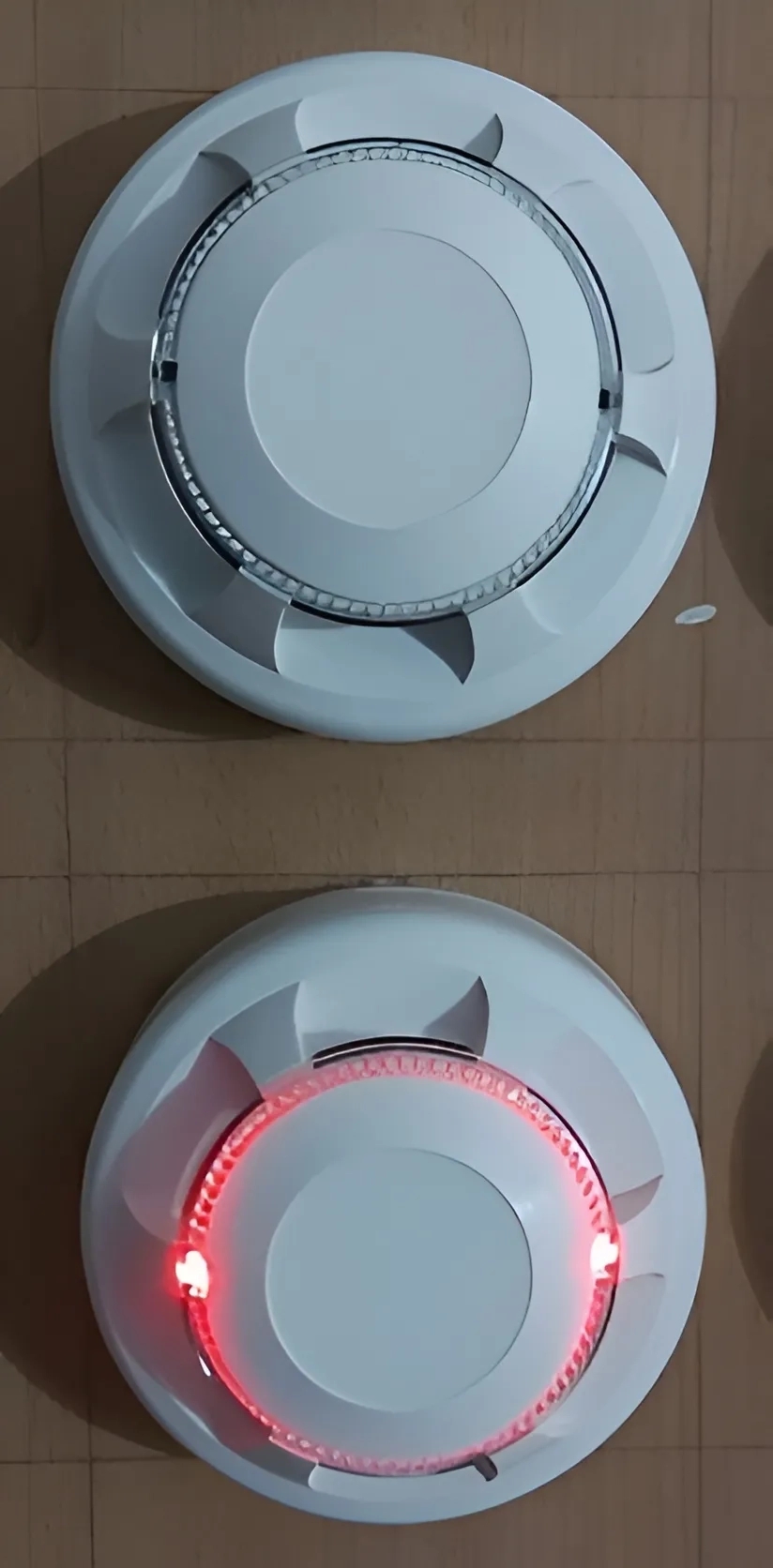

Macromancie Smoke Detector

A smoke detector is a device that senses smoke, typically as an indicator of fire. Commercial security devices issue a signal to a fire alarm control panel as part of a fire alarm system, while household detectors, known as smoke alarms, generally issue a local audible or visual alarm from the detector itself.

Smoke detectors are housed in plastic enclosures, typically shaped like a disk about 150 millimetres (6 in) in diameter and 25 millimetres (1 in) thick, but shape and size vary. Smoke can be detected either optically (photoelectric) or by physical process (ionization), detectors may use either, or both, methods. Sensitive alarms can be used to detect, and thus deter, smoking in areas where it is banned

Smoke detectors in large commercial, industrial, and residential buildings are usually powered by a central fire alarm system, which is powered by the building power with a battery backup.

Special Discounts available on quantity

SKU: Macromancie 9990155999 Agm42

Operating Voltage : DC (10.8 ~ 30) V

Frequency : 3‐5 Seconds

Smoke Sensitivity : 1.51% / ~ 2.73% / obscuration

Reset Voltage : Less than 1 volt

Reset me : Less than 1 sec.

Alarm indication : 2 continuous emitting red LEDs

Weight : 140 gram with base

Start up current : 200 µA

Alarm current (Max) : 60 mA

Stand by current : 60 µA

Dimension : Dia 100mm, ht 46mm

Features :

Dual LED for 360 degree visibility

2 wire based detector

Advance algorithms provides advanced detection discrimination

Easy installation

Low maintenance

High immunity against unwanted alarms

Stable optical smoke sensing chamber, No adjustment or replacement required

Macromancie have multiple Advantages :

Strong R& D Team

Strong Local Dealership Network

Strong Pre-Sales Support

Strong Technical Support at Installation Time

Strong After Sale Support

Strong Repair and Spare Parts Support Network
