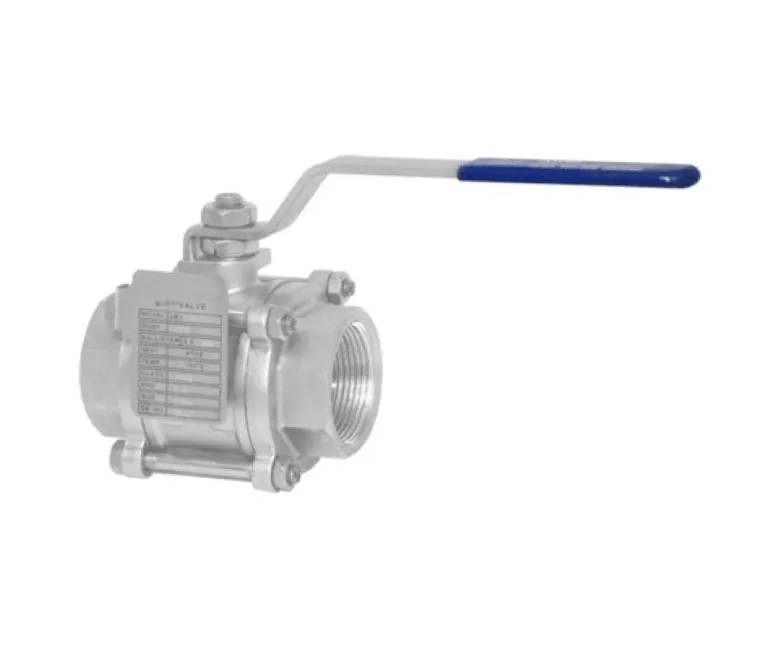

Size Range : 1/2" to 4" Screwed / Flanged / Triclover / Socket weld
Valve
Body: ASTM A216 Gr . WCB / ASTM A351 Gr . CF8 / CF8M
Ball: ASTM A351 Gr . CF8 / CF8M
Stem: Stainless Steel AISI 304 / AISI 316 / AISI 410
Gland: Stainless Steel AISI 304 / AISI 316 / M.S.
Seat Packing: "PTFE ( Gland Filled, Carbon Filled, Teflon - Optional in case of high Temperature )"
End Connection"Screwed to - BSP / NPT / Socket Weld Ends to ANSI ) B 16.11

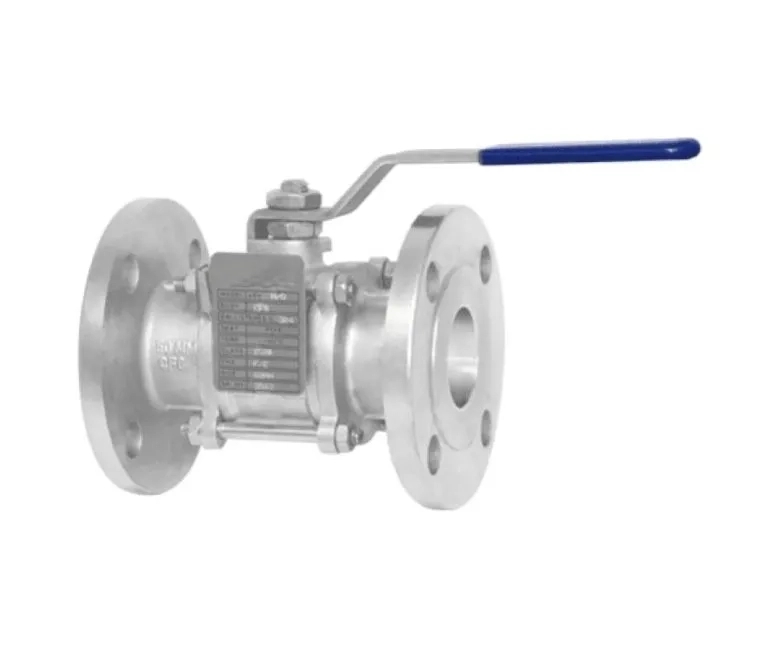

Flanged to - ANSI B 16.5 Class 150/300
Table - D, E, F, ( On Request )
Triclover Ends - ( On Request )
Socket Weld - ( On Request )
Item: Type of Test Testing Pressure Working Pressure Operating Temperature ( high Temp . On Request )
Valve Body Screwed End: Hydraulic - 450 PSIG - 315 PSIG - Max . 180 ° C
Valve Body Flanged 150 #: Hydraulic - 450 PSIG - 315 PSIG - Max . 180 ° C
Valve Body Flanged 300 #: Hydraulic - 112 PSIG - 815 PSIG - Max . 180 ° C

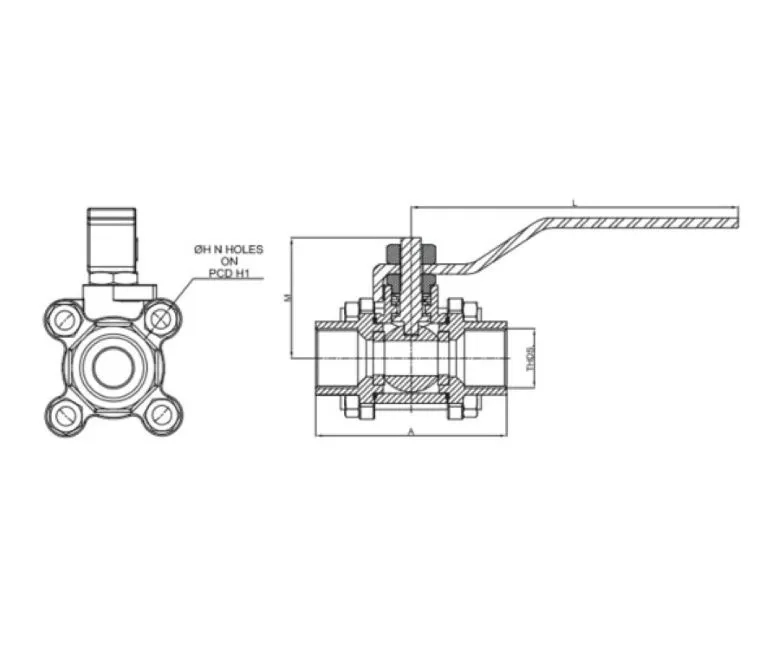

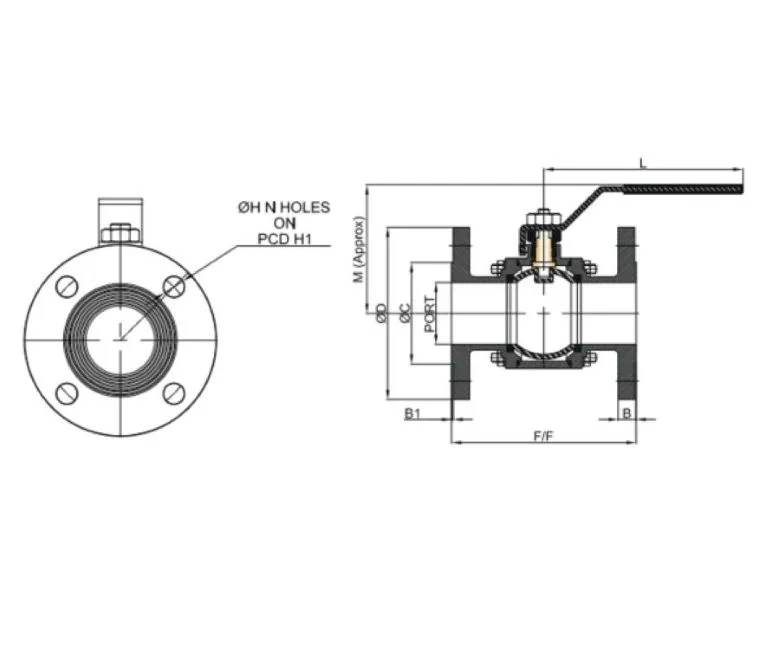

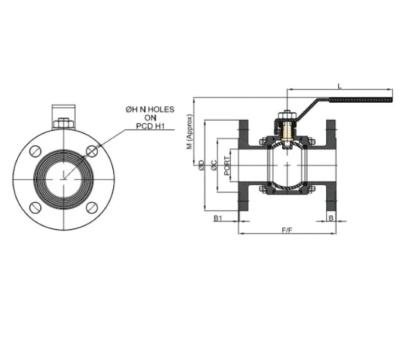

All Dimensions are in mm
Refer Catalogue for more information
