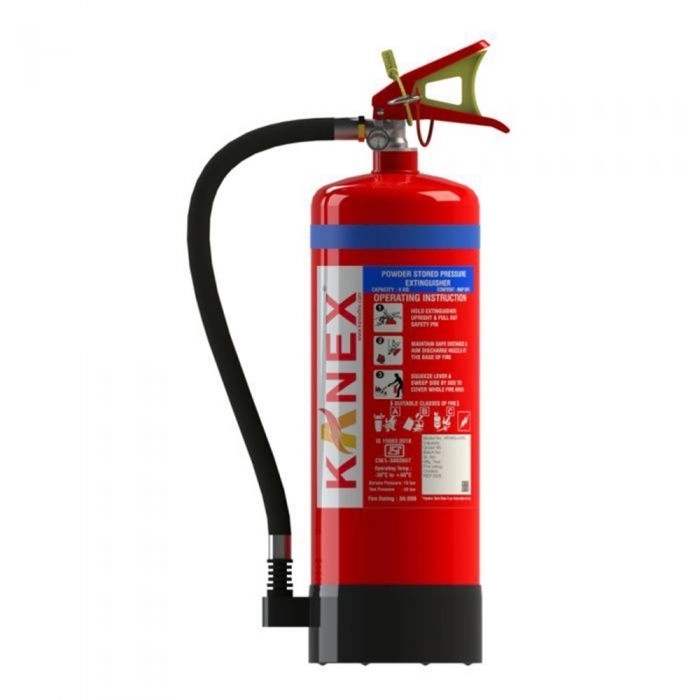

Kanex 4 Kg Abc Fire Extinguisher (Map 90 Based Portable Stored Pressure)

Unique gauge testing system (UGTS) mechanism

CE marked , brass chrome plated valve

Internally Epoxy polyester and externally pure polyester powder coating

Best available Fire ratings in its class with 5 years warranty.

Helium Leak detection tested for leakage, leak rate upto 1X10-8 mbar.l/sec.

Welding Procedure approved by TPI with 6G.

Latest BIS approved – (IS 15683:2006), ISI marked and CE marked.

Tamper seal to detect any mishandling.

Anti-corrosive Phosphate treatment of Cylinders.

Large loop stainless Pull pin.

More flexible EPDM hose.

Lever lock for better handling.

Bar Code labeling for better traceability.

Easy to maintain, recharge & service.

UL listed high quality MAP 90% powder capable of fighting class A,B,C & Electrical fires

MODEL: KFARQ-4- UL 90%

Capacity: 4 kg

Design: Hose & Nozzle

Fire Rating: 4A:144B

Height (Approx.): 490 mm

Diameter (Approx.): 140±10 mm

Average Discharge Time: 18 Sec.

Average Range of throw: 3 m

Average Discharge: 95%

Operating Temperature: -30 °C to +60 °C

Service/Max. service/Test Pressure: 15 / 18 / 35 bar

Expelling Agent: Nitrogen (UHP Grade)

Full Weight (Approx.): 6.6 kg

Empty Weight (Approx.): 2.6 kg

Shipping Weight (Approx.): 7.0 kg

Packing Standard: 2 in 1- 21"X6.75"X14.10”

Mounting Bracket: Wall bracket

Approvals: BIS

Warranty: 5 Years Warranty

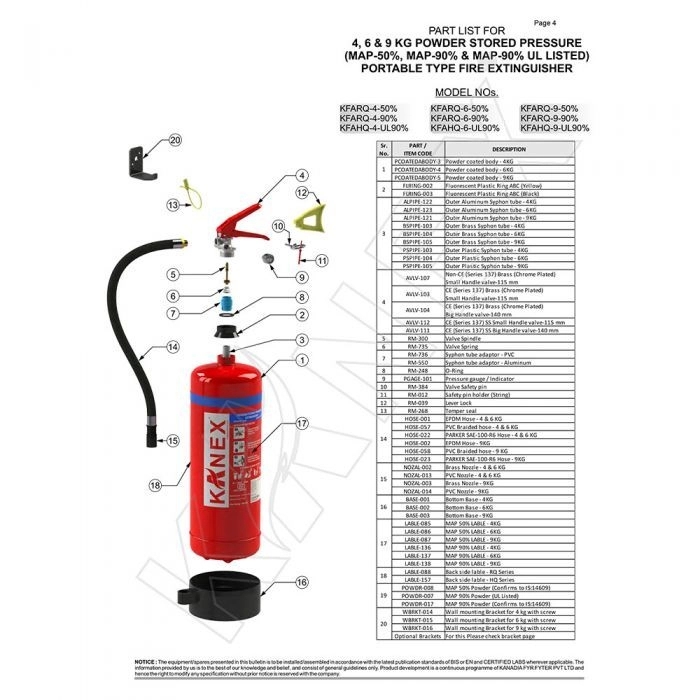

Refer Catalogue For More Information
