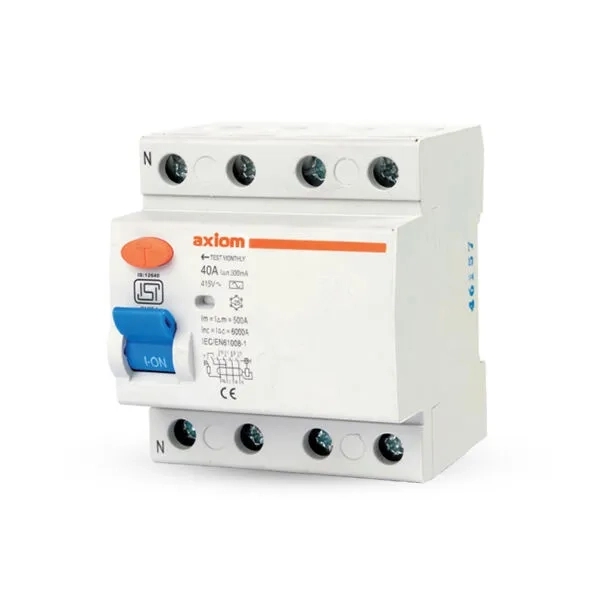

Axiom Residual Current Circuit Breakers(RCCB)

The RCCB continuously monitors the current flow in the circuit and trips the circuit as soon as it detects any difference between the current flowing through the live wire and the neutral wire. By doing this, you can help safeguard persons and property from electric shocks and flames brought on by ground faults

RCCBs aid in guarding against overload and short circuits and protecting against ground faults. They are often located there to safeguard all the circuits connected to the distribution board or consumer unit.

An extensive selection of premium RCCBs created to satisfy the requirements of numerous applications and industries are available at Axiom, a renowned electrical equipment producer in India

High-quality Residual Current Circuit Breakers are offered in India by Axiom Controls

Salient Features:

Our product has standout qualities that make it stand out from competitors. Its sleek and classy appearance will surely draw those who appreciate style and elegance.

Our product’s test button and unambiguous fault trip indication, allowing quick and frequent check-ups,

Our product is designed to endure high short-circuit circumstances in addition to its safety features. The presence of a flame-proof body and cover further improves its safety qualities. It also provides a thorough defence against both direct and indirect touch, making it a reliable and secure alternative for any application.

Our product is eco-friendly and economical because it takes energy conservation into account. It guarantees earthing protection against corrosion and offers protection against electric fires, ensuring longevity and durability.

The terminal safety shutters that come with this device provide a further measure of safety and security. These shutters are intended to prevent unintentional contact with live parts during installation. This product is a top pick for discerning consumers who value safety, dependability, and efficiency in their electrical effects due to these great qualities.

Standard Conformity : IS 12640 -1: 2000, IEC 61008-1

Poles : DP & FP

Current Rating : 25A, 40A & 63A

Rated Voltage (Ue) : 240/ 415 V AC

Rated Sensitivity, mA : 30mA, 100mA & 300mA

Protection : Against earth fault / Leakage current

Rated Frequency (f) : 50 Hz

Nuisance Tripping : No

Operating Characteristic : ‘AC’ Type

Dielectric Strength : 2.5kV

Terminal Capacity : 35mm2

Protection Class : IP20

Safety Shutters : Optional

Breaking Capacity : 6 KA
