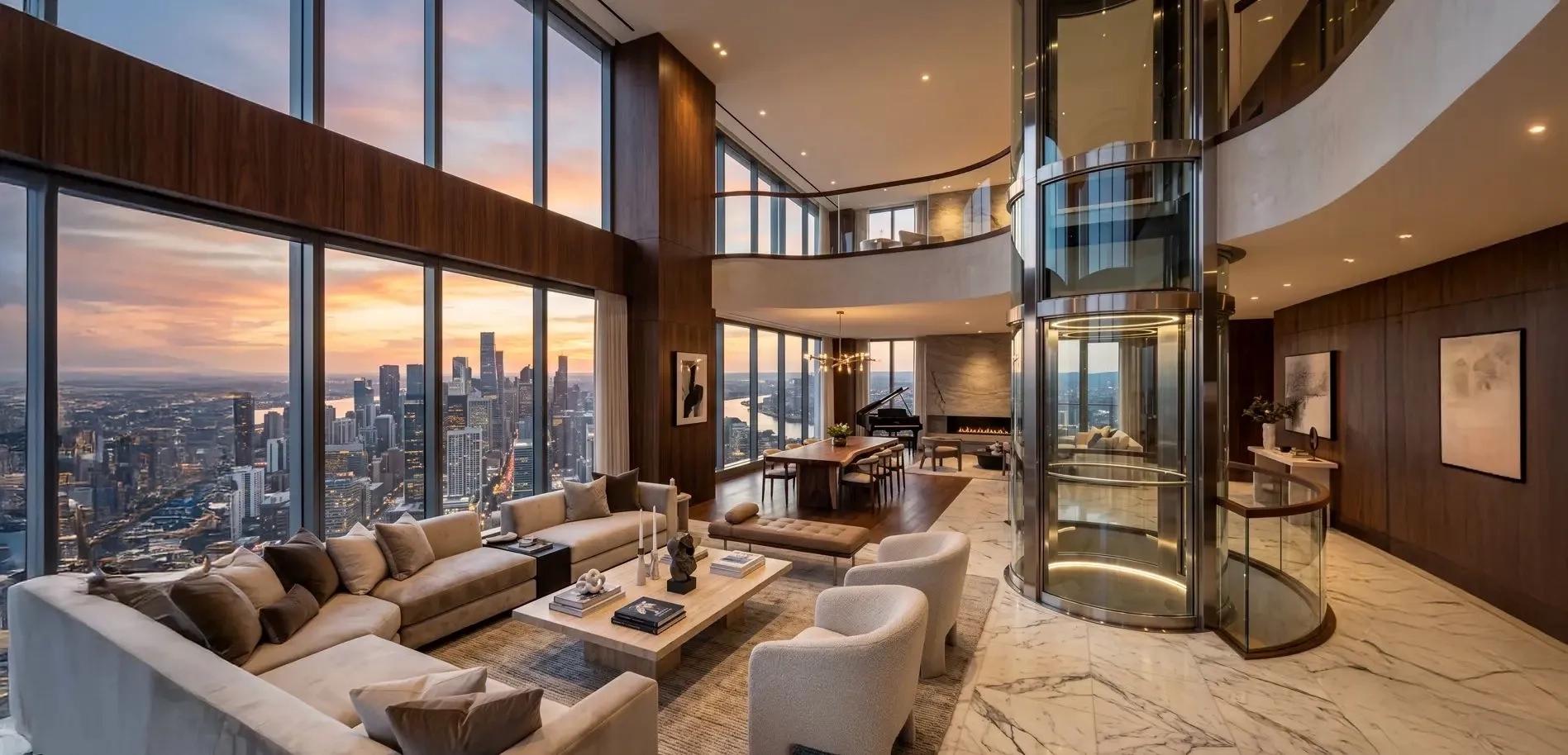

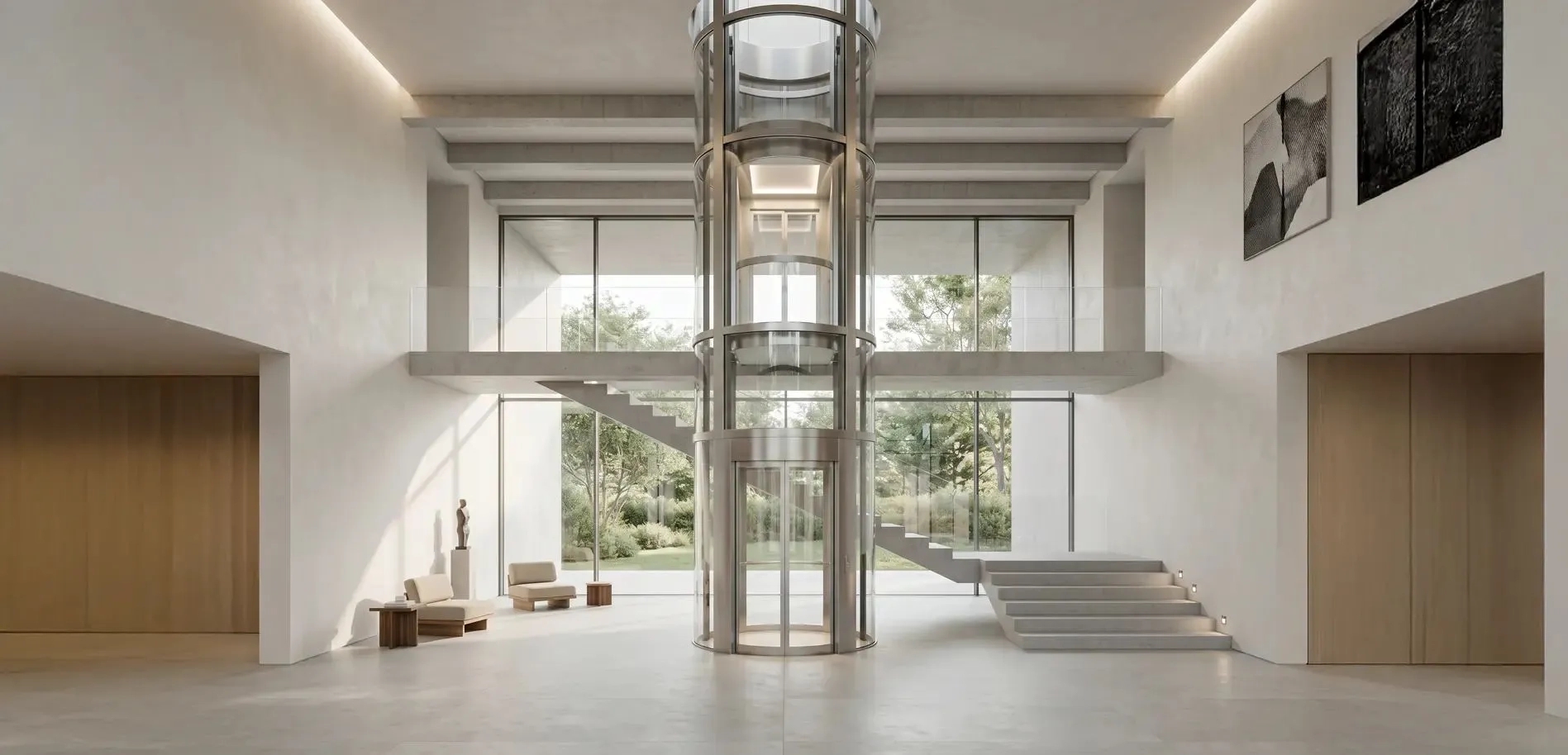

Teknix Villa Matek Elevator

TEKNIX VILLAMATEK are specially designed for residential use; incorporating a mix of technology, aesthetics and craftsmanship to provide an essential service to homes whose residents have impaired mobility. Available only in gearless options, and in a wide range of Cabin options to suite diverse needs and tastes.

Automatic Rescue Device : Automatic rescue mechanism that swiftly returns the elevator to the nearest floor during power outages.

Car Illumination : LED power saving lighting inside the car for illumination

Car Ventilation : Cross Flow Ventilation system in the car

Power Supply : AC415V, 3phase & AC220V , 1phase , 50HZ AC

Phase Loss Protection : Automatic Phase loss protection system stop the elevator when it senses the loss of one of the three phases

Over – run Protection system : Up/Down overrun protection System with triple layer limit switch for extra safety

Type : MRL - Powered by Gearless Traction Machine

Capacity : Upto 400kgs

Speed : 0.30 m/s

Landings : 2 - 5

Drive : Gearless PMSM/Frequency Controlled

Operation : Full Collective Selective

Door Width : 600/800mm

Door Height : 2100mm

Control system : Multiple microcomputer based close-loop control system with direct landing technology

Drive : Frequency controlled permanent magnet synchronous motor based gearless traction machine with dual vented disc brakes

Curve Generation : Microcomputer senses the load in the elevator & generates the S curve based on the torque required automatically

Door Operator : VVVF door operating system with close loop control

Door Protection : Full length infrared light curtain provided for safety of passengers

Human Interface Device : Stylish Integrated Car operating Panel & Surface mounted Landing Operating Panel with auto atiendant key and auto light and fan function

Operation : Full Collective Selective

Direction Indicators : Car & Landing Operating Panels will be equipped with direction and floor indication display for easy facilitation of passengers

Call Cancellation : Wrong Destination call can be cancelled by double press of destination button

Auto on/off : Ventilation & lighting would have automatic on/off function

Overspeed Protection : When elevator speed is more then the calibrated speed, the device will automatically stop the elevator motor and activate the car safety device in turn activating
