Fg Glass Facadeshield

When It Comes To Building Envelopes, Facadeshield™ Is The Way To Go. Our Glass Gives You Higher Optical Clarity Than Fully Toughened Glasses, But That’s Not The Only Reason Why It’s An Industry Favorite! The Risk Of Spontaneous Breakage Is Next To None. The Glass Doesn't Need Any Heat-Soaking And, If It Were To Break, It Stays In The Window Frame - Ensuring Your Property Remains Safe! We Process This Heat-Strengthened Glass In Our Electric Horizontal Roller-Hearth Heat-Treatment Lines. Equipped With A High-Powered Top-And-Bottom Convection Heating System, We Can Treat Even The Most Advanced Coatings Available In The Market, Including Those With Emissivity As Low As 0.01, And Quad-Silver Coatings. Our Machines Have A Highly Advanced And Precise Cooling System That Ensures Minimal Iridescence And Very High Glass Flatness. Over Five Million Square Meters Of Facadeshield™ Glass Currently Envelope Buildings Around The World.

We’re One Of The Top Façade Glass Suppliers In The Country And The Supplier Of Choice Due To Our Consistent, High-Quality, On-Time Performance.

Product Family :

Facadeshield™ First : Clear Heat-Strengthened Glass

Facadeshield™ Clarity : Ultra-Clear Heat-Strengthened Glass

Facadeshield™ Tone : Tinted Heat-Strengthened Glass

Facadeshield™ Solar : Solar-Control Coated Heat-Strengthened Glass (Pyrolytic or MSVD Coated)

Facadeshield™ Pro-1 : Low-E Coated Heat-Strengthened Glass (Pyrolytic Coated)

Facadeshield™ Pro-2, Pro-3, Pro-4 : Silver Low-E Coated Heat-Strengthened Glass (MSVD)*

Technical Specifications :

Process Type : Horizontal Roller-Hearth Convection Furnace

Glass Types : Clear, Extra Clear, Ultra Clear, Tinted, Solar-Control Coated, Low-E Coated

Additional Process Compatibility : Ceramic-Frit, Digitecture™ Digital Printing, Sand-Blasting, Acid Etching

Product Enhancement : Can Be Converted To Climacool™ (Insulated Glass) and Lamisecure™ (Laminated Glass)

Glass Thickness : 3 mm to 12 mm

Edge Types : Rough Grind, Arrissed, Super Polished

Compressive Stress (Surface) : 30 MPa to 52 MPa (4,300 psi to 7,500 psi)**

Emissivity : Minimum 0.01***

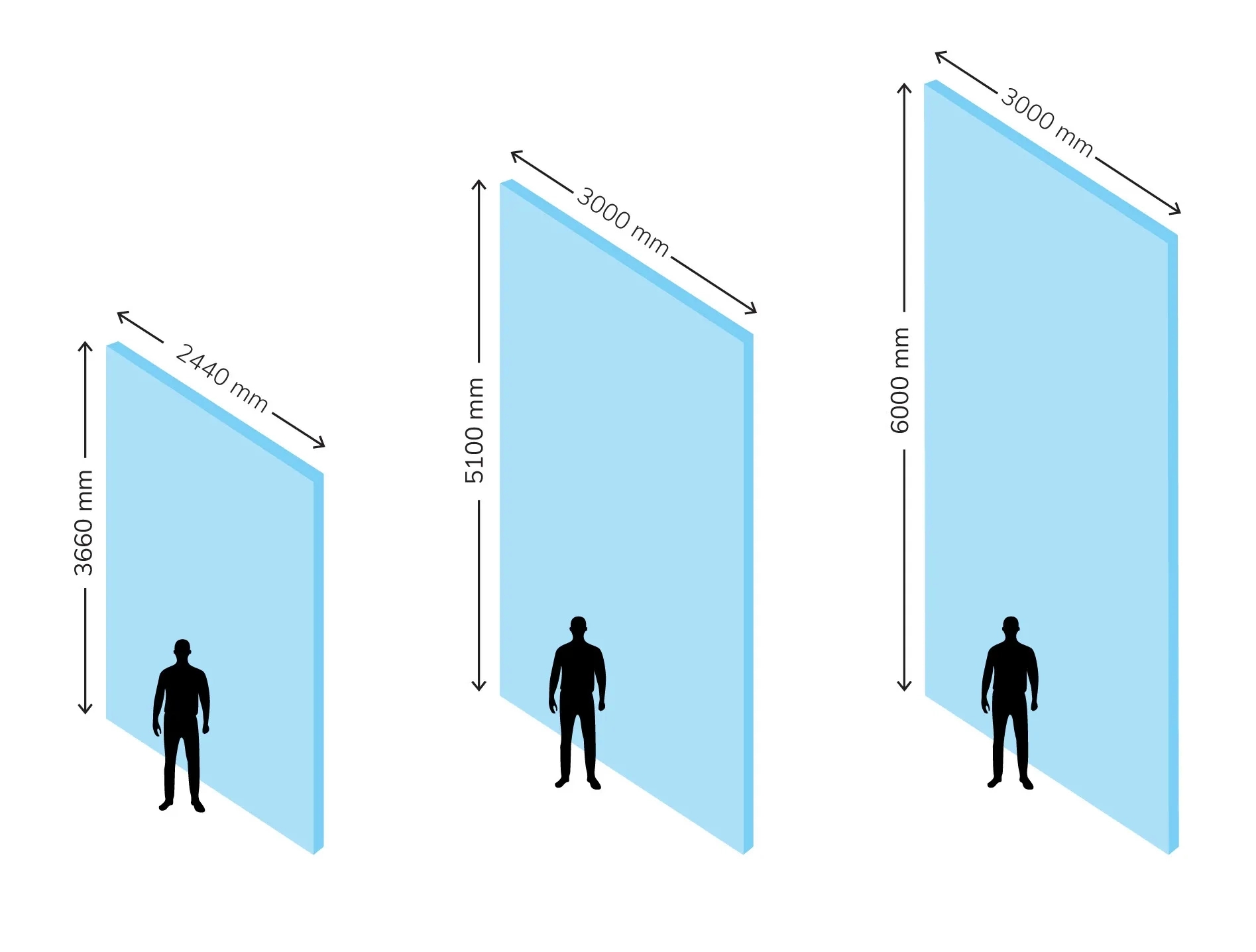

Dimensions :

Minimum Size : 200 mm x 300 mm

Maximum Size : 2440 mm x 3600 mm (4 mm and 5 mm)

3000 mm x 5100 mm (6 mm)

3000 mm x 6000 mm (8 mm to 12 mm)

Refer Catalogue for more Information
