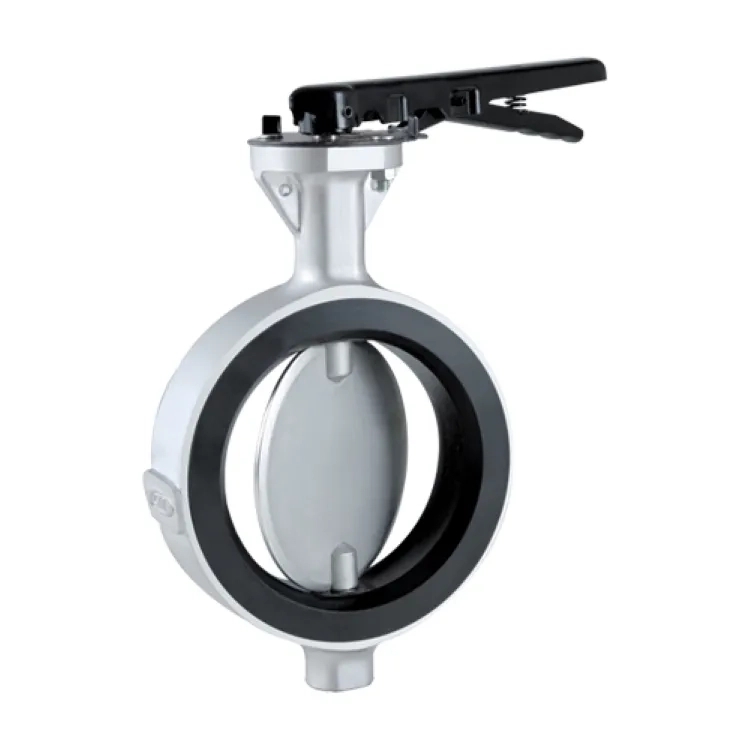

Safecon Wafer End Butterfly Valves

Application Throttling Features / Benefit: Throttling Single & Double Eccentric Design Full Lug & Semi Lug Type Design Top Mounting Pad as per ISO 5211 Unique Stem retention design to provide blow out proof stem & easy assembly & disassembly of valves Heavy Duty square grooved seat design with moulded O ring seals to act as flange gasket Self energizing seating design Through flow disc design for large size Butterfly Valves Different Lining and Metallurgy to suit a wide variety of applications including sea water & water desalination plants

Ansi Class / Rating: PN 10, PN 16, PN 20

Design Standard: BS EN 14432

Testing Standard: API 598

Size: 50 mm to 500 mm

Materials :Body: Cast Iron, WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Disc : Ductile Iron, WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Seals : EPDM, Nitrile, Viton, Metal Seated etc

Ends Operation: Wafer End Mannual, Pneumatic, Electric

Refer Catalogue For More Information
