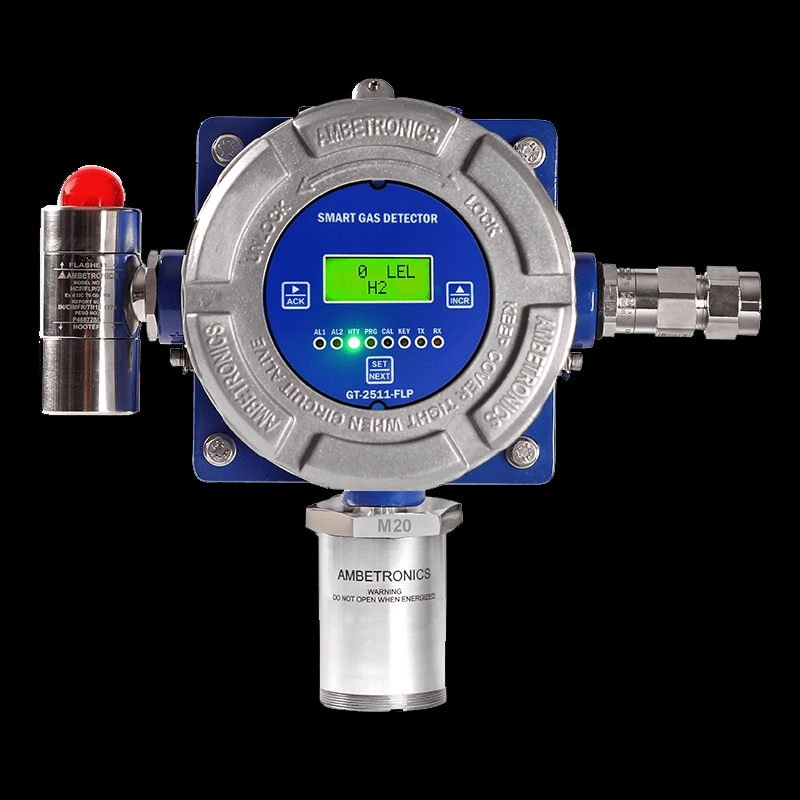

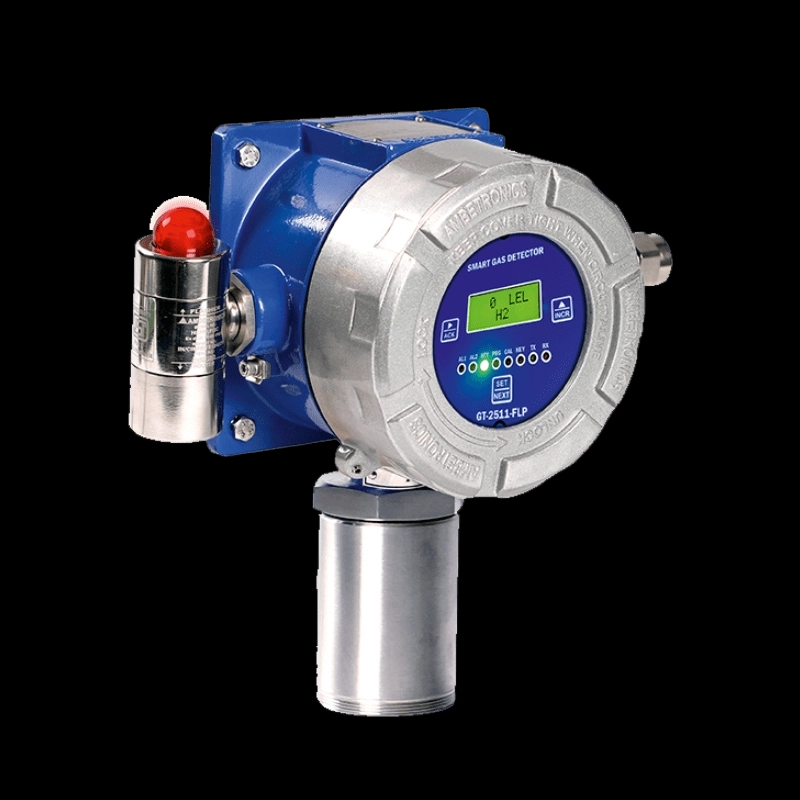

Smart Gas Detector with LCD Display – GT-2511-FLP

The GT-2511-FLP is a Flameproof, PESO Certified Smart Gas Detector designed for swift and reliable detection of Oxygen, Toxic, Combustible, and Volatile Organic Compounds (VOC) gas leaks. Featuring an 8 x 2 Alphanumeric LCD with configurable backlit and 8 LEDs for status indication, it provides a clear digital display of gas concentration. The device offers a standard 4-20mA signal output with a configurable range and three relay outputs with a 5A rating.

Technical Specifications: Sensor Technology: Electrochemical, Catalytic, Pellistor, NDIR, PID, Solid State for diverse gas detection

Detection Method: Diffusion for efficient and reliable gas sensing

Response Time: Less than 15 seconds, depending on the type of gas

Electrical Requirements: 18 to 36 VDC supply voltage, typically 24VDC, with less than 3.6 Watts power consumption

Environmental Resilience: Operating temperature from -15 to +55°C, storage from -10 to 60°C, and humidity less than 95% non-condensing

Output Signal: Standard 4-20mA current output with configurable range, ±0.125% Full Scale accuracy

Optional Accessories: CE certified 24VDC power supply, canopy & mounting stand, gas calibration kit, hooter cum flasher, gas sampling system, communication converters, and SCADA software

Dimensions: Compact design with or without hooter cum flasher

Refer catalogue for more information
