FG Glass Glasshield

Glasshield™ is our range of fully tempered or fully toughened glasses that we manufacture in one of our two electric horizontal roller-hearth tempering lines. Both the lines are equipped with high-powered top-and-bottom convection heating systems that enable heat treatment of the most advanced coatings in the market. Our machines also have an advanced and precise cooling system, known as a quenching system, which ensures minimum iridescence levels and very high glass flatness. One of our most versatile products, Glasshield™ can be used in almost unlimited applications. Today, it’s hard to imagine a building that does not use this great material. From façades to floors and railing to skylights, our industry-leading quality and capability guarantee that you will receive nothing but the best!

Product Family :

Glasshield™ First : Clear fully toughened (tempered) glass

Glasshield™ Clarity : Ultra clear fully toughened (tempered) glass

Glasshield™ Tone : Tinted fully toughened (tempered) glass

Glasshield™ Solar : Solar-control coated fully toughened (tempered) glass (pyrolytic or MSVD coated)

Glasshield™ Pro-1 : Low-E coated fully toughened (tempered) glass (pyrolytic coated or MSVD coated)

Glasshield™ Pro- 2, Pro- 3, Pro- 4 : Silver low-E coated fully toughened (tempered) glasses (MSVD)

Technical Specifications :

Process Type : Horizontal Roller-Hearth Convection Furnace

Glass Types : Clear, extra clear, ultra clear, tinted, solar-control coated, low-E coated

Additional Process Compatibility : Ceramic-frit, Digitecture™ digital printing, sand-blasting, acidetching, holes, cutouts and notches

Product Enhancement : Can be converted to Climacool™ (insulated glass) and Lamisecure™ (laminated glass)

Glass Thickness : 4 mm to 25 mm

Edge Type/td> : Rough grind, arrissed, super polished

Compressive Stress(Edge) : 67 MPa (9,700 psi) minimum

Compressive Stress(Surface) : 69 MPa (10,000 psi) minimum

Emissivity : Minimum 0.01**

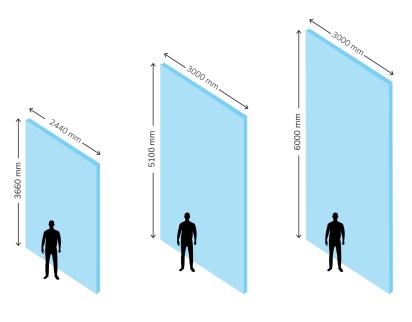

Dimensions :

Minimum Size : 200 mm x 300 mm

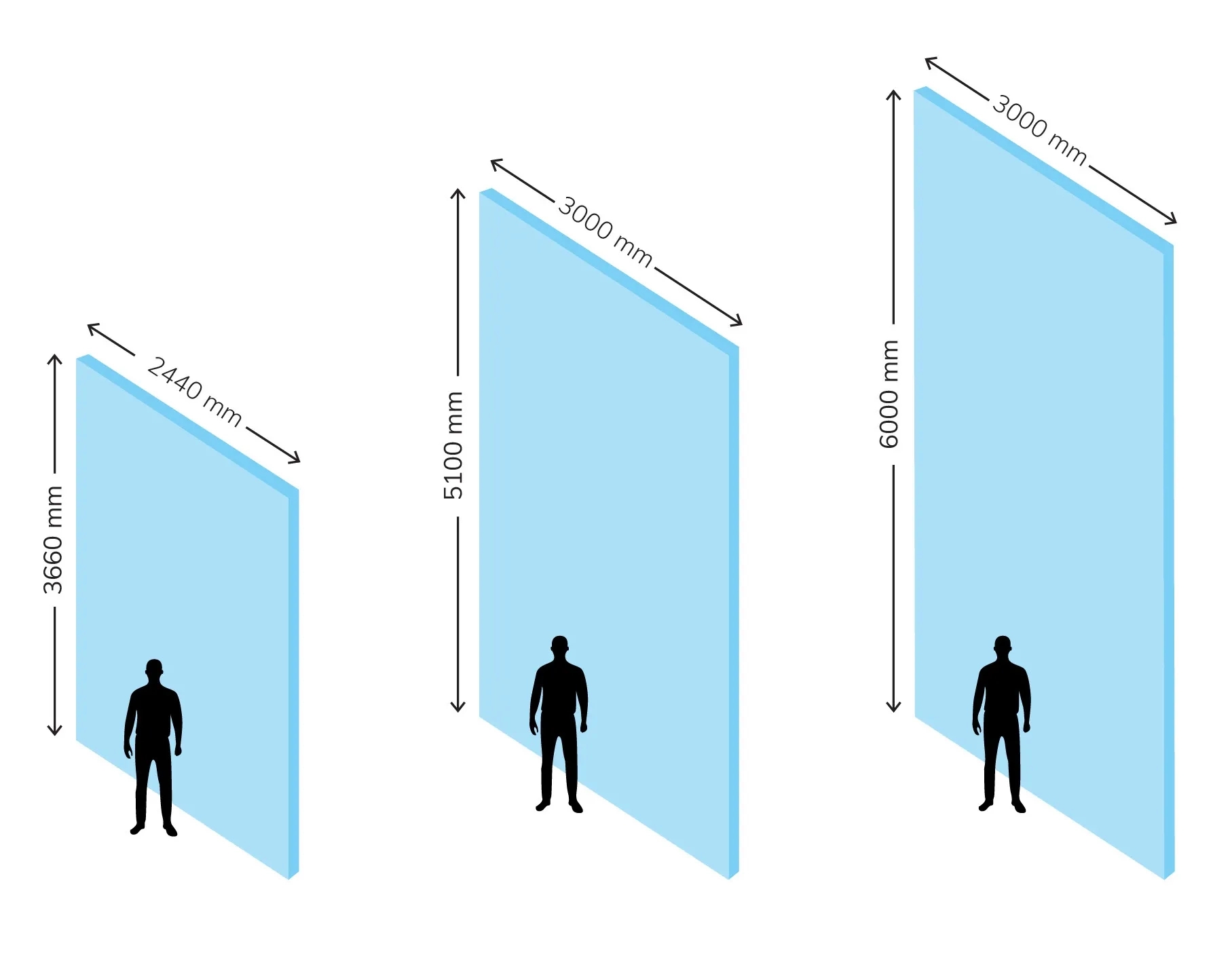

Maximum Size :

2440 mm x 3600 mm (4 mm and 5 mm)

3000 mm x 5100 mm (6 mm)

3000 mm x 6000 mm (8 mm to 19 mm)

25 mm maximum size available on request

Refer Catalogue for more Information.
