Heavy Duty Pipe Clamp FRSM - Inch

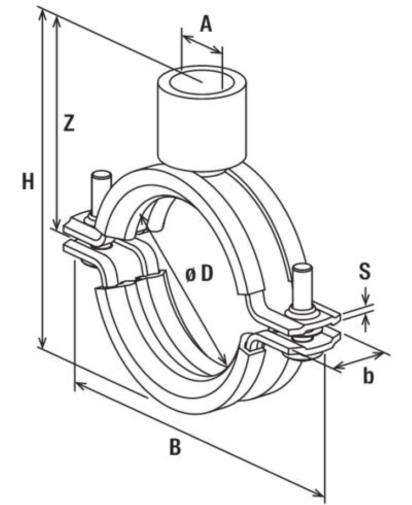

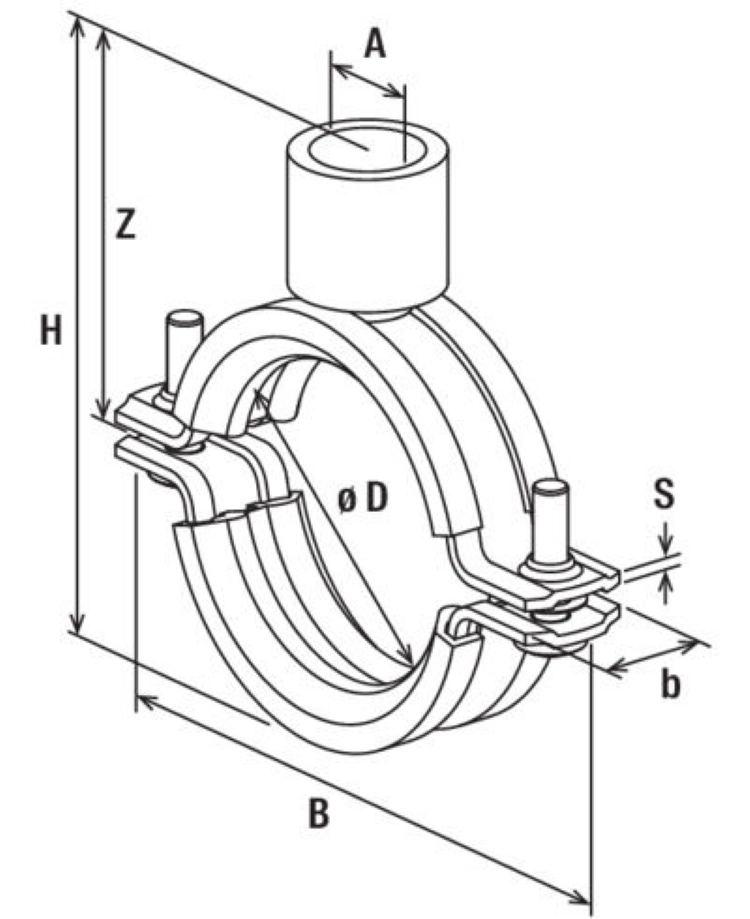

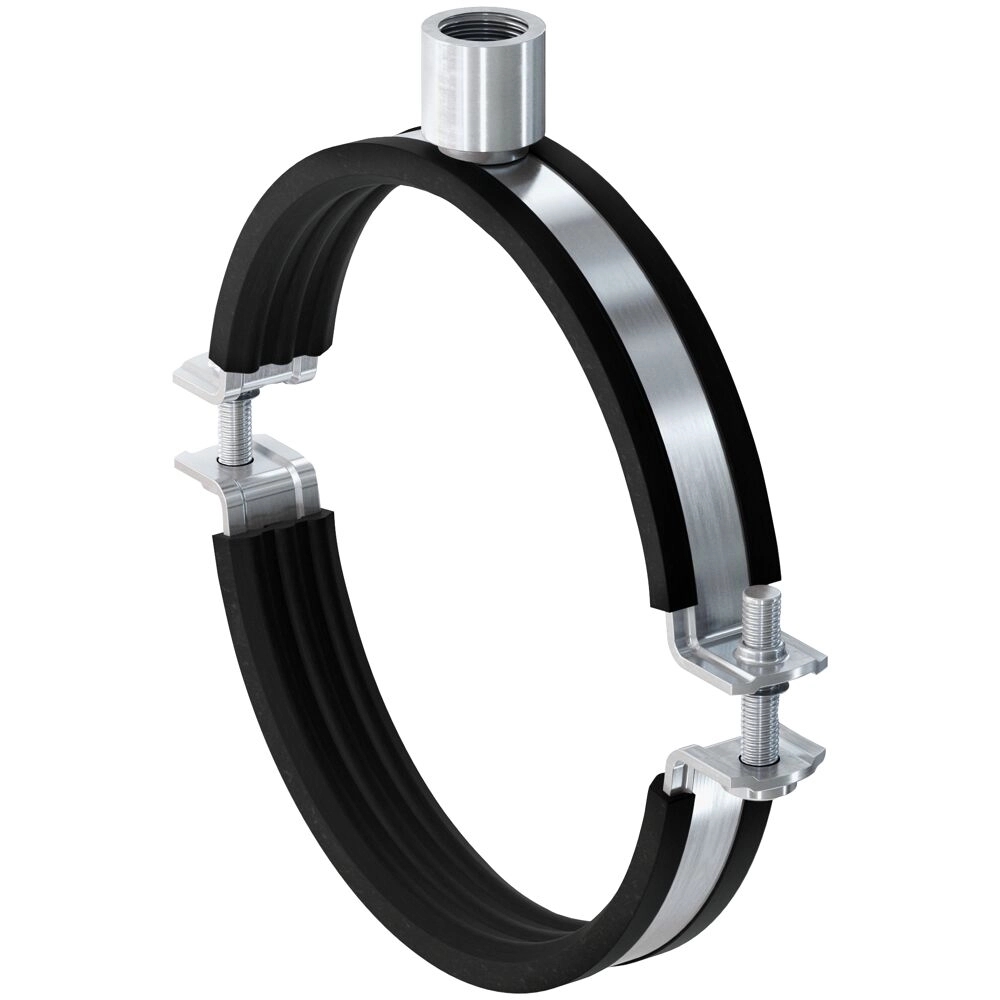

The fischer heavy duty pipe clamp FRSM (inch) is a two-screw pipe clamp made from zinc-plated steel in material quality DD11 with a ½" thread. The imperial-thread connection nut enables pipe fixings with a high bending strength. The two-screw version enables optimised adjustment in line with the outer diameter of the pipe. This means that pipelines with an outer diameter of 14 to 169 mm can be securely fixed using threaded pipes indoors.

Advantages

The inch threaded connecting nut allows for a pipe fixing with increased bending stress.

High tested loads ensures the secure functioning of the FRSM.

The sound insulation insert offers noise protection and prevents contact corrosion.

The two screws allow an easy adjustment to suit the outer pipe diameter.

The screw's safety feature ensures trouble-free installation.

Properties

Material: steel DD11 (material no. 1.0332) acc. to DIN EN 10111

Zinc plating: electro zinc-plated or hot-dip galvanised

Connecting nut: ½" resistance welded

Locking screw: flat head screw with combination recessed head

Material sound insulation insert: EPDM; chlorine-free; silicone-free

Temperature range: -50 °C to +110 °C

Hardness: 45 ± 5° Shore A

Fire behaviour: DIN 4102: Class B2

Applications

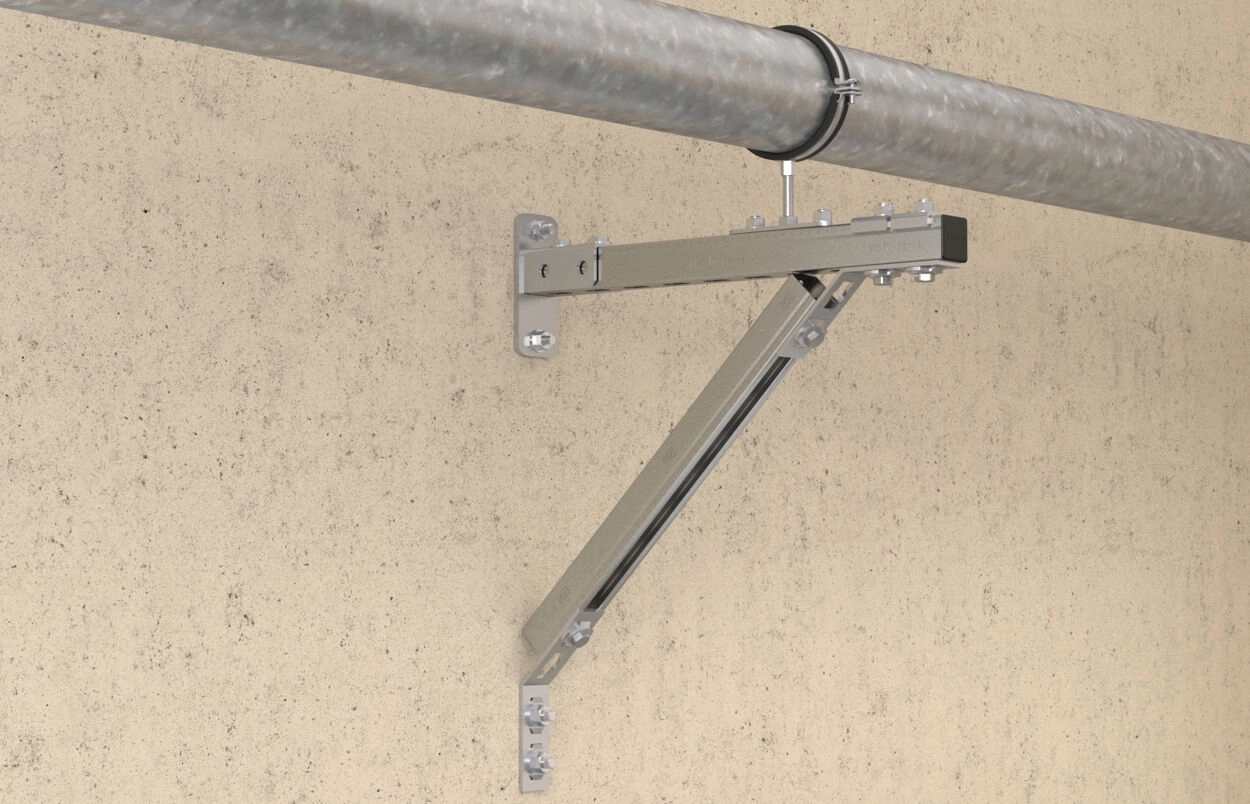

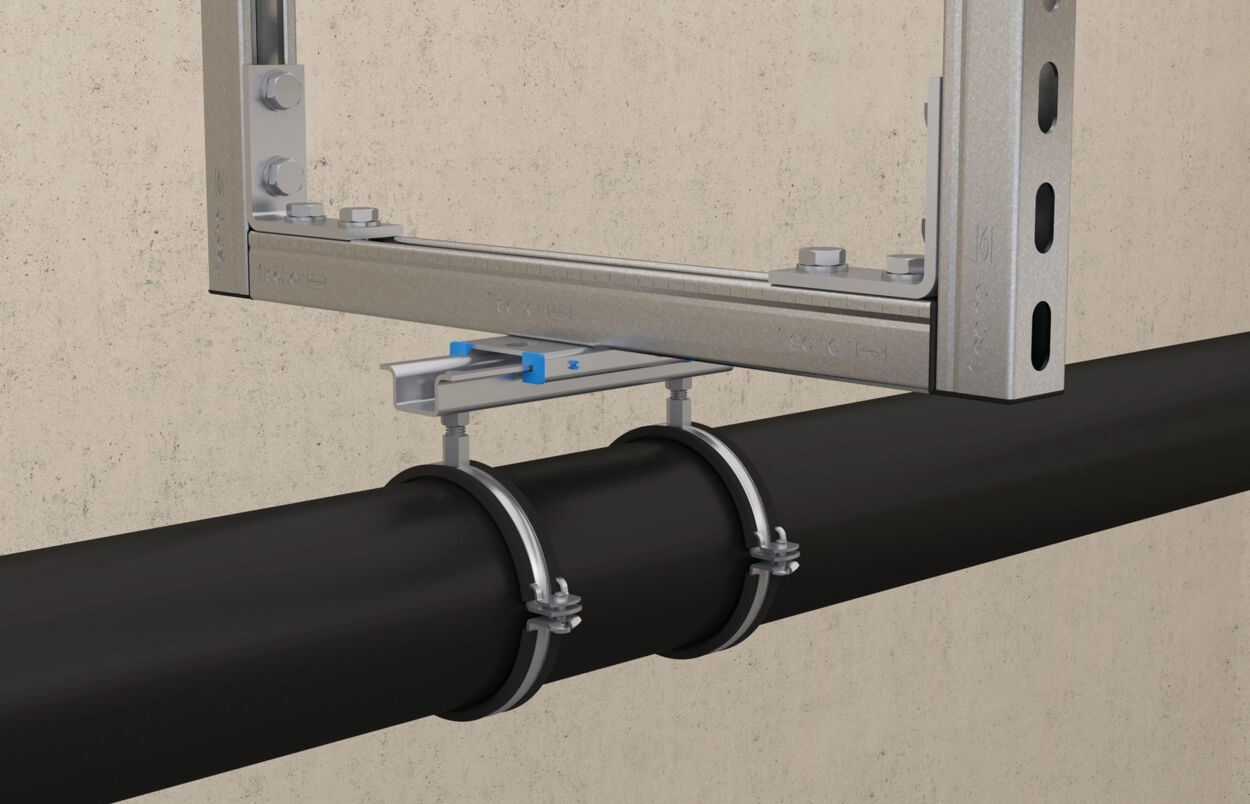

Fixing of medium to heavy pipes with threaded rods (hanger bolts).

For use in dry interior areas.
