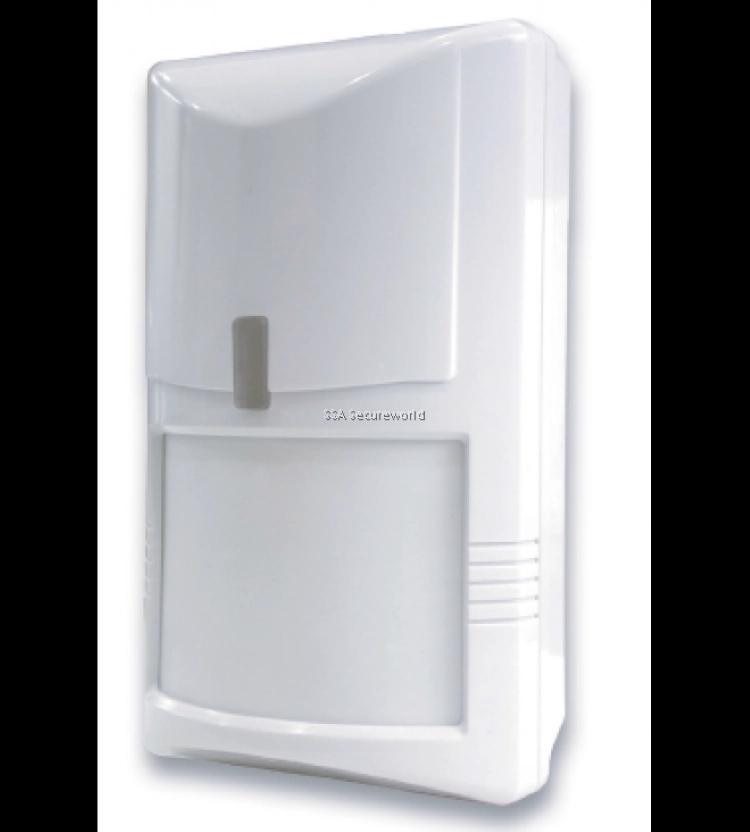

Pet-immune Passive Infrared Detector IR-580P

The IR-580P is a pet-immune passive infrared detector that utilizes IR-TEC's patented Target Size Verification technology to detect movement of domestic pets up to 20kg (45lb). This state-of-the-art motion detector shares the same housing as the 580 series, allowing for easy selection of various models to match interior decor. With reliable detection, it's a leading edge solution for intrusion detection in pet-friendly areas.

Features:

Target Size Verification (TSV) technology

Excellent RFI and EMI immunity

Built-in temperature compensation

Double noise reduction circuit

Sealed optics mechanism design

Disabled blue light walk test LED

Second-to-none wiring space

Selectable intelligent pulse count

NC/NO selectable alarm output

Up to 20 kgs pet immunity detection

Specifications:

Infrared sensor : Dual element

Power Supply : 9~16 VDC, 12 VDC typical

Current drain : NC: 15 mA, NO: 8 mA @12VDC

Alarm Output : N.C/N.O 30VDC, 0.2A max.

Alarm Period : 2 0.5 sec.

Pulse Count : 2 / 3 selectable

Detection Range : 100, 12 x 12 m at 25C

RFI Immunity : Max. 40V/m (10~1000 MHz)

Detectable Speed : 0.3 ~ 1.5m/sec.

Mounting Height : 2.2 m typical

Humidity : 95% RH maximum

Temperature : -20C~60C (-4F~140F)

Dimensions : 100 x 60 x 42 mm
