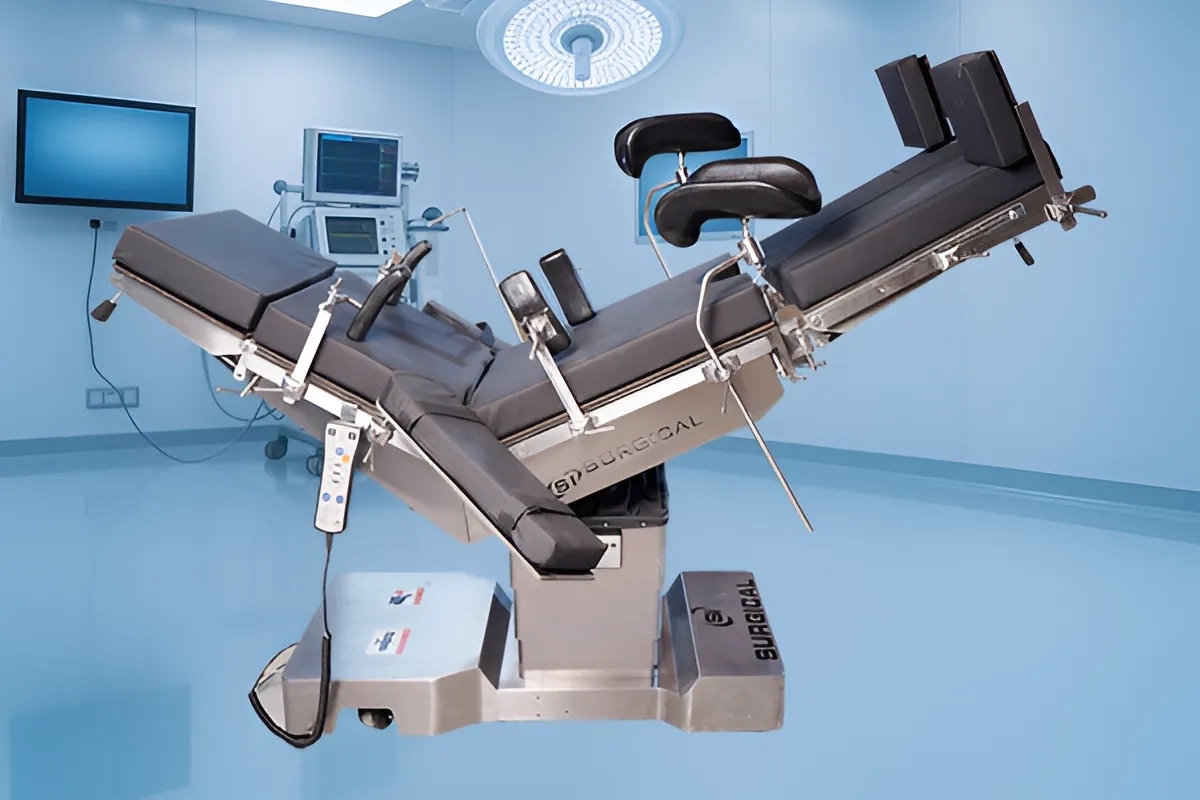

SI Surgical Electro-Hydraulic C-ARM compatible Operating Table - TYKO 1000 Advance

Electro-hydraulic actuator and all the movements are through remote with a backup panel & foot Pump

During any electro-hydraulic failure or incident table is having a emergency stop switch to stop the table

Operating Table top should be C-Arm Compatible and Radiolucent

Table is with anti collision system to prevent collision if any object or C-arm comes closer to the table top

The table top have more than six positions ie.Trendelenburg, reverse Trendelenburg, back plate up & down movements lateral tilt, longitudinal shift, height adjustment, anti flex and flex position and zero position by single click through remote / auxiliary Switch through remote control

Latex free fully radiolucent, detachable, impermeable to fluid and easily washable mattress.

Wheel mounted and 4 past Hydrauliclocking mechanism

Both arm board have up and down and rotation function

Material of the Body: SS 304 grade.

Input Voltage -230 +10 V a.c, 50 Hz

Patient weight bearing capacity: 280 kg.

Battery backup: 3Hrs.

Applications

Tables include both upper-extremity procedures.

Elevated surface for supporting the patient's body and include specific apparatus for supporting and providing traction for the patient's limbs during orthopedic procedures.

Tables stabilize the patient's position and provide the operating surgeon with optimal exposure of the surgical field.

Adjustments

Table Top Length: 1900 mm -2150 mm

Table Top Width: 500 mm -600 mm

Minimum Table Top Height: 650 mm

Maximum Height: 1050 mm

Trendelenburg & Reverse Trendelenburg Position: 25 to 30 Degree

Lateral Tilt Left And Right: 15 to 25 Degree

Head Section UP/Down: 45 to 45 degree

Back Section UP/Down: 90 to 30 degree

Horizontal Positioning Left And Right: 0 to 90 Degree

Leg Section UP/Down: 20 to 90 degree

Flex: Up to 230 degree

Reflex:Up to 100 degree

Longitudinal Sliding: 120 mm to 310mm

Accessories Provided

Anesthetic Screen With Side Clamp & Lock

Arm Rest With Side Clamp & Lock

Shoulder Support With Side Clamp & Lock

Lithotomy With Side Clamp & Lock

Extension Bar

Horizontal Attachments

Foot Support

Bolster Pillow

Supports Bars, Restraint Body strap

adial Setting Clamps
