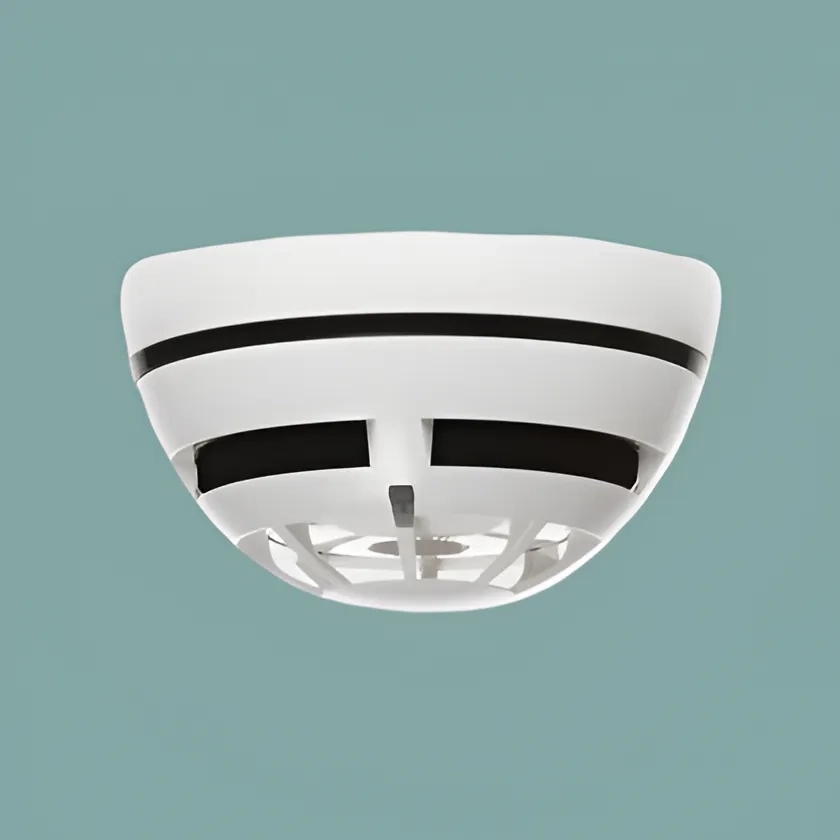

Ceasefire Intelligent-Class-P-Heat-Detector-Without-Isolator (TI-002216)

Key Features :

Multiple fully approved sensitivity settings

Utilises fully digital protocol with high noise rejection

Dual alarm LEDs providing 360deg cone of visibility

Open style mounting base offers easy wiring and low pressure locking

Programmable using the Device Programming Tool

1 year product warranty

Type : Addressable

Model : TI-002216

Alarm Temperature : 58oC (Class A1R), 78oC (Class BS)

Operating Voltage : 15-40V DC

Standby Current Consumption at 24V : 85µA @ 24V DC

Remote Output Max Current : 20mA

Ambient Temperature : -10°C to +55°C

Relative Humidity : 95% (non condensing)

Dimensions (Diameter x Height) : To be specified

Standard : EN 54-5

Certification/Approval Authority : LPCB

LED Indicator : Bi-coloured LED indicator with 360o visibility

Output for Response Indicator/ Remote Indicator : Yes

Protection Class : IP40

Mode of Addressing : Electronically Addressed

Product Warranty : 1 Year Warranty
