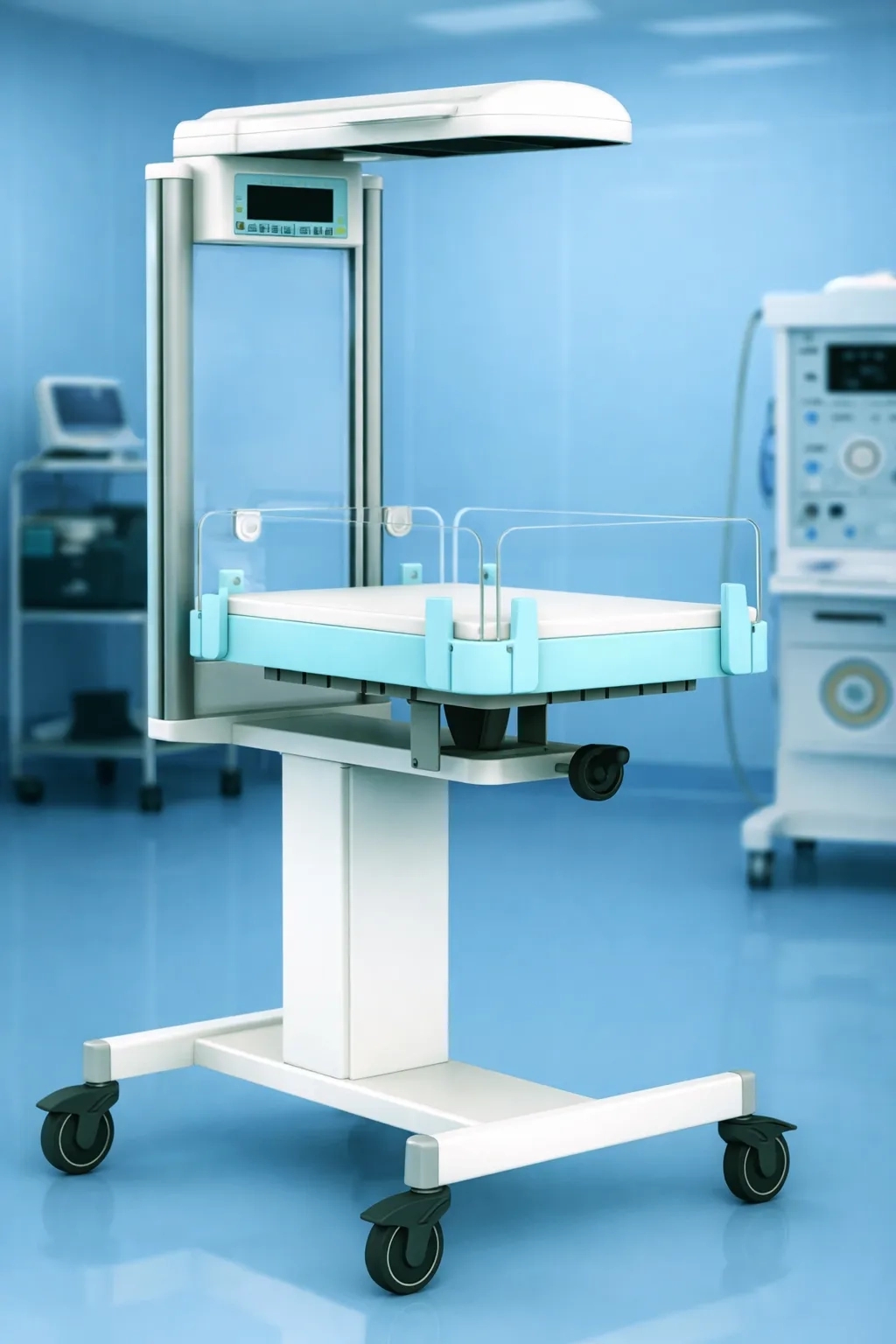

SI Surgical NICU Equipment - ECOSY - 630

Infant Warmer:

Far infrared quartz heating tube

Baby, manual and pre-heating modes

APGAR and CPR timer

Transparent guard door on four sides

Baby bed tilting angle from 0~13°

Heater capacity : 500W

Temperature control : Servo(Baby) Mode/Manual/Preheating mode

Skin temperature : Setting range:34.0~38.0°C

Display range:20.0~42.0°C

Heater output : Setting range: 0~100% (in 5% increments) Indication range:0~100% (in 1% increments)

Timer : APGAR mode/CPR mode switchable APGAR Beep: 1,5,10 min

Display : LED digital display

Bed tray : Inclination angle (back and forth) : ±13° Mattress surface : 500x700x25mm

Dimension : 840(L) X 1100(W) X 1790(H)mm

Optional Function:

X-ray cassette

Dimension : 53x35cm

Height Adjustment : Upto 20cm

Storage/Shipping Information

Temperature : -25~55°C

Humidity : 0~93% RH

Lifting stand : Adjust the height of the infant radiant warmer based on operator’s height. The foot pedal can be operated from both left and right sides.

Optional Storage Drawer : Storage drawer equipped with damping technology for silent operation and can be operated on both left and right sides which is ideal for storage.
