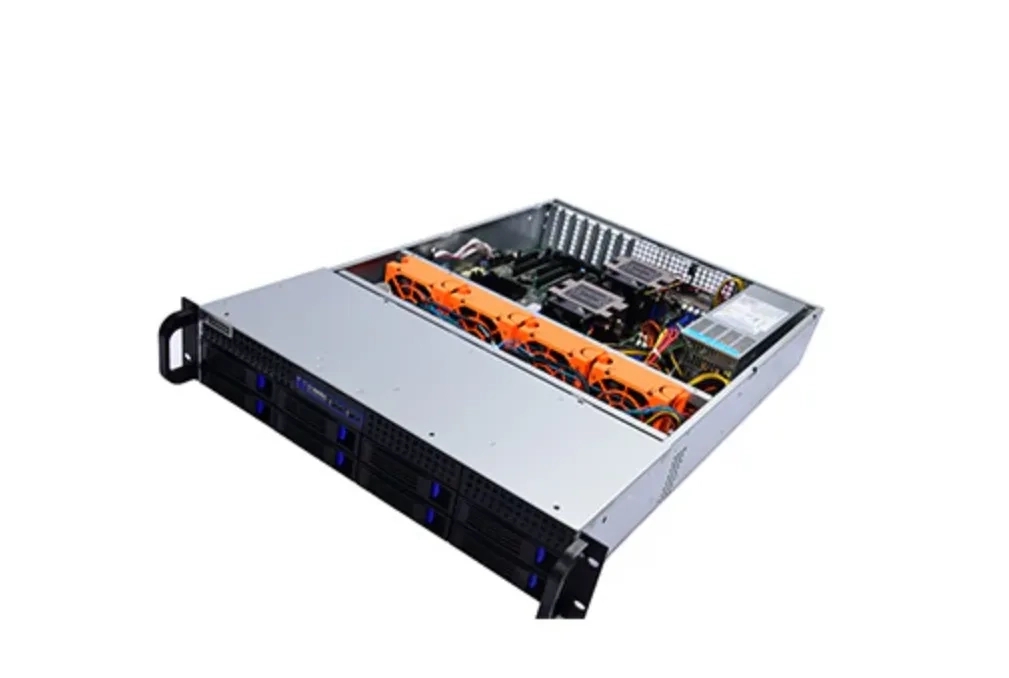

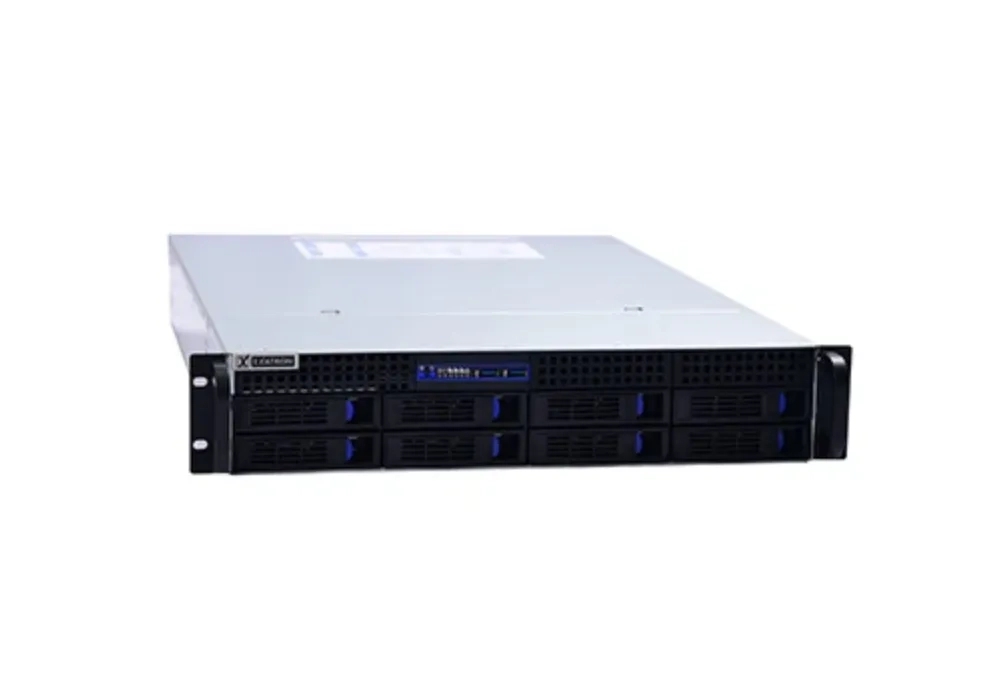

Exatron Server Rx220-ST Microsoft Certified

SKQ ID : C621-S7100ST

Category : Storage Server

Form Factor : 2U Rack Mount

Chipset : Intel C624

Overview : The RX220ST Storage Server forms the backbone of business applications by providing secure storage of data and application repositories.

Processor : Dual Scalable Intel 1st and 2nd Gen (Cascade & Skylake), up to 24 Cores. 165TDP.

RAM : 12DIMM Slots. Scales from 8GB to 768GB & 2133 to 2933Mts. 6 DIMM Controllers with 2 Channels each. DDR4 ECC RDIMM/LRDIMM Memory.

Storage : RAID 0/1/10/5/50/6 SATA Controllers. Upto 12 HDD/SSD slots (3.5"). 2XM.2 slots.

Full Specifications :

Chipset : C621 Intel chipset.

Processor : Dual Scalable Intel 1st and 2nd Gen (Cascade & Skylake), up to 24 Cores. 165TDP.

RAM : 12DIMM Slots. Scales from 8GB to 768GB & 2133 to 2933Mts. 6 DIMM Controllers with 2 Channels each. DDR4 ECC RDIMM/LRDIMM Memory.

Storage : RAID 0/1/10/5/50/6 SATA Controllers. Upto 12 HDD/SSD slots (3.5"). 2XM.2 slots.

Other Features:

800 Watts to1200 Watts to 1+1 N Hot swap Dual PSU,

4 x16 3.0 or 4x8 3.0 PCIe Slots with raiser Support

RAID Controller with 1/2/4/8/ GB Cache

Intel® Trusted Execution Technology TPM2.0

1x 1Gbps Integrated LAN PORT

IPMI 2.0 & Redfish, KVM Remote media Support,

DVD R/w Optional

Certifications:

Microsoft Certified Platform

VMware Certified Platform

Compatibilities:

VMware

Windows Server 2019

Windows Server 2016

Red Hat Enterprise Linux 7.6

Red Hat Enterprise Linux 7.5

SUSE Linux Enterprise Server 15

SUSE Linux Enterprise Server 12 SP4

Ubuntu
