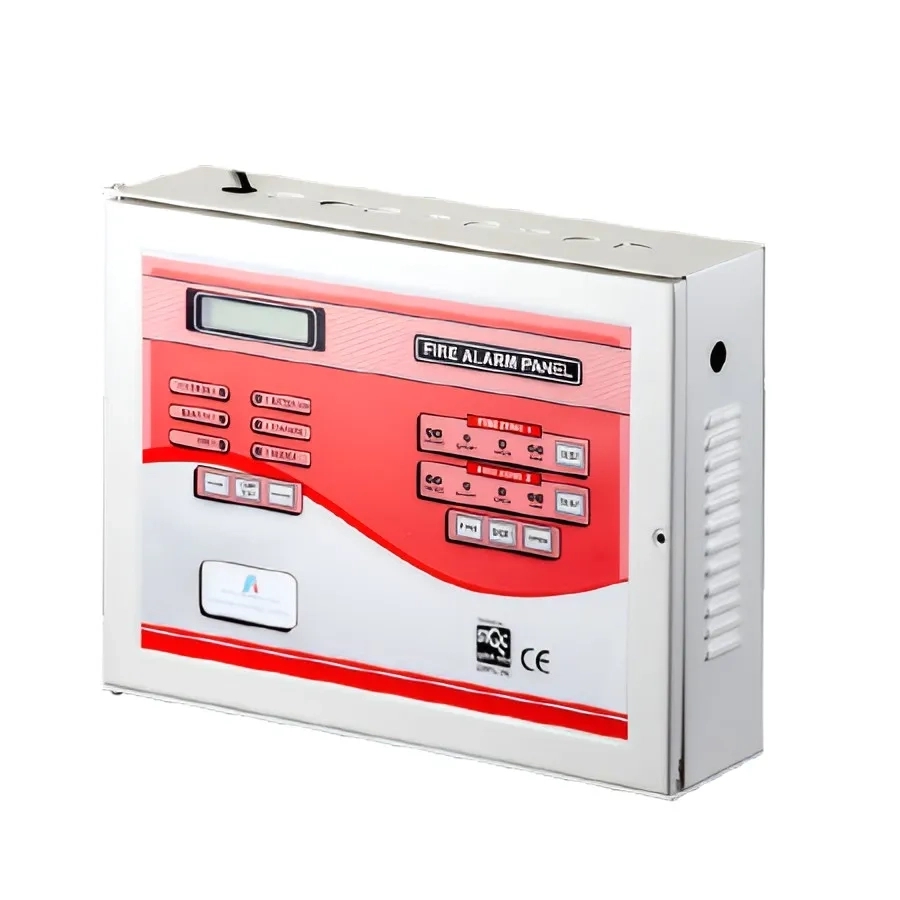

Ang India 2 Zone Fire Alarm Panel ANG1F02C

Microprocessor based with LCD back lit type.

All zonal status at LCD and LED.

Energy Saving Design for more battery life.

As per IS2189:1999 Fire alarm code of practice.

Modular Construction.

Clear labelled all indicating lamp, control switch and user instruction based sticker on Front.

Soft Touch programmable Function & Control switch.

Monitor for Mains On, Batt. On, System ON, Charger ON, Fire, Silence, Earth, Battery Low.

Control Switch: Lamp Test, Evacuate, Silence (Fire/Fault/Power Fault) and Reset.

Zone display: Fire, Open, Short and Isolate.

Potential Free relay control for signal transfer to remote area.

12VDC auxiliary supply for auto dialler.

24VDC auxiliary supply for other devices.

When mains fails auto change over to battery vice-versa.

PWM based built in charger with auto cut off.

In built auto charger and battery housing for 7 Ah x 12V -2 No.

System ON/OFF switches with protective fuse for AC/DC/Battery.

Fabrication MS with powder coated, Top entry cable entry, front operable door.

Power Supply, AC Input Supply DC Input Supply: 230 V AC, 50Hz 24 V DC

Operating Conditions: -10 to 45 C, 95% RH Max.

Operating Voltage: 24 V DC

Normal Loop Voltage: 20.7 DC

Open Threshold Current: 4.2 mA

Short Circuit Threshold Current: 40 mA

Stand by Threshold Current: 8.2 mA

Alarm Current: 20 - 35 mA

Quiescent Current: 50mA Plus 4.2mA per Zone

Colour of the Panel: White

ALARM OUTPUT , Standard Common Output: 0.2A per Zone

REMOTE INDICATION OUTPUTS, Outputs: Fire Relay Contacts (230V 2A Contact).
